Tool Holders / S-System Highfeed End Mills

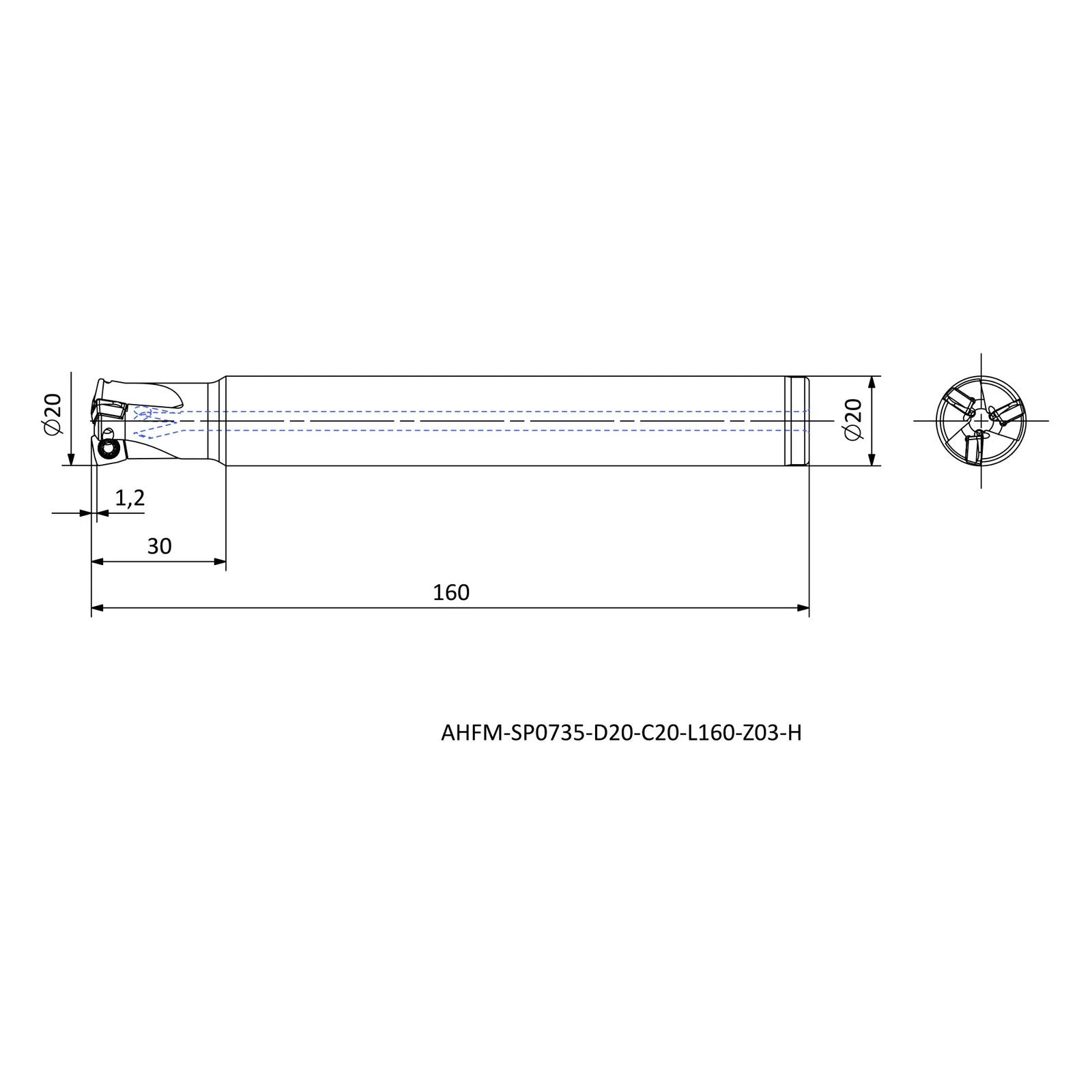

AHFM-SP0735-D20-C20-L160-Z03-H
AHFM-SP series · see all 4 sizes
Insert compatibility
This size is built for the insert designation SPMX 073505 (as listed in the catalogue data).
Specifications — AHFM-SP0735-D20-C20-L160-Z03-H
| Insert Code | Insert designation | SPMX 073505 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 160 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1.2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFM-SP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SP0735-D16-C16-L160-Z02-H | R | 16 | 160 | 16 |
| AHFM-SP0735-D17-C16-L160-Z02-H | R | 16 | 160 | 17 |
| AHFM-SP0735-D20-C20-L160-Z03-H | R | 20 | 160 | 20 |
| AHFM-SP0735-D21-C20-L160-Z03-H | R | 20 | 160 | 21 |
