Tool Holders / S-System Highfeed End Mills
AHFM-SP1004-D32-C32-L150-Z03
AHFM-SP series · see all 2 sizes
Insert compatibility
This size is built for the insert designation SPNW 1004 (as listed in the catalogue data).

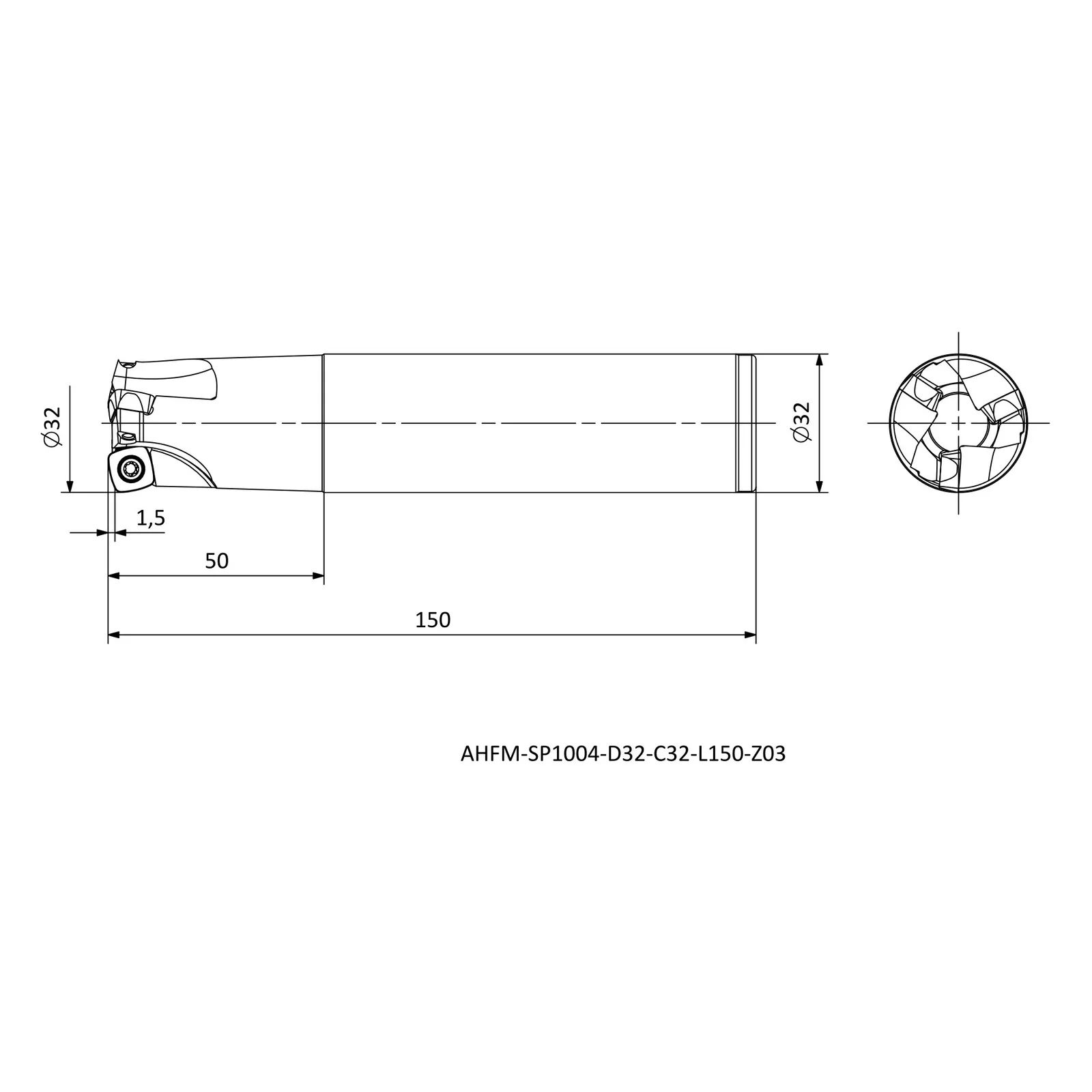

Specifications — AHFM-SP1004-D32-C32-L150-Z03
| Insert Code | Insert designation | SPNW 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 32 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-SP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SP1004-D25-C25-L150-Z02 | R | 25 | 150 | 25 |
| AHFM-SP1004-D32-C32-L150-Z03 | R | 32 | 150 | 32 |
