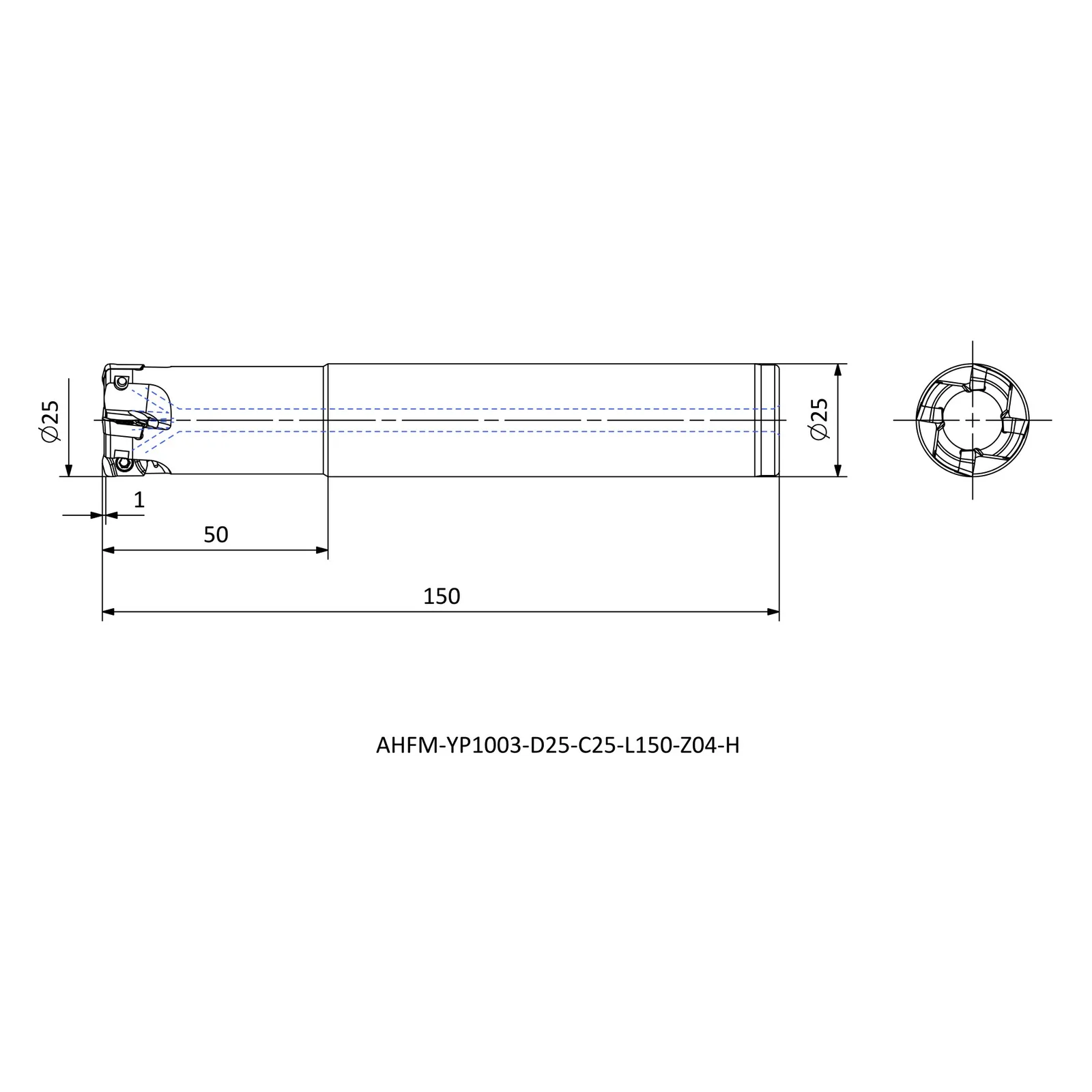

AHFM-YP1003-D25-C25-L150-Z04-H

Name: AHFM-YP1003-D25-C25-L150-Z04-H
Brand: Axior
SKU: AHFM-YP1003-D25-C25-L150-Z04-H

AHFM-YP series · see all 25 sizes

This size is built for the insert designation EP.. 1003 (as listed in the catalogue data).

Specifications — AHFM-YP1003-D25-C25-L150-Z04-H

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Functional length (mm)
AHFM-YP1003-D21-C20-L150-Z03-F	R	21	20	150
AHFM-YP1003-D20-C18-L200-Z03-F	R	20	18	200
AHFM-YP1003-D16-C15-L200-Z02-F	R	16	15	200
AHFM-YP1003-D17-C16-L150-Z02-F	R	17	16	150
AHFM-YP1003-D21-C20-L150-Z03-H	R	21	20	150
AHFM-YP1003-D25-C20-L150-Z04-F	R	25	20	150
AHFM-YP1003-D25-C20-L200-Z04-F	R	25	20	200
AHFM-YP1003-D26-C25-L150-Z04	R	26	25	150
AHFM-YP1003-D33-C32-L200-Z04-F	R	33	32	200
AHFM-YP1003-D17-C16-L200-Z02-F	R	17	16	200
AHFM-YP1003-D20-C18-L150-Z03-F	R	20	18	150
AHFM-YP1003-D20-C20-L150-Z03-F	R	20	20	150
AHFM-YP1003-D21-C20-L150-Z04-F	R	21	20	150
AHFM-YP1003-D25-C25-L150-Z04-F	R	25	25	150
AHFM-YP1003-D26-C25-L150-Z04-F	R	26	25	150
AHFM-YP1003-D33-C32-L250-Z04-F	R	33	32	250
AHFM-YP1003-D26-C25-L250-Z04-F	R	26	25	250
AHFM-YP1003-D16-C15-L150-Z02-F	R	16	15	150
AHFM-YP1003-D21-C20-L200-Z03-F	R	21	20	200
AHFM-YP1003-D25-C25-L150-Z04-H	R	25	25	150
AHFM-YP1003-D26-C25-L200-Z03-F	R	26	25	200
AHFM-YP1003-D26-C25-L200-Z04-F	R	26	25	200
AHFM-YP1003-D33-C32-L300-Z04-F	R	33	32	300
AHFM-YP1003-D16-C16-L150-Z02-F	R	16	16	150
AHFM-YP1003-D21-C20-L200-Z03	R	21	20	200
