Tool Holders / S-System Highfeed End Mills
AHFMC-JD1204-D35-C32-L250-Z02
AHFMC-JD series · see all 4 sizes
Insert compatibility
This size is built for the insert designation JDMW 1204 (as listed in the catalogue data).

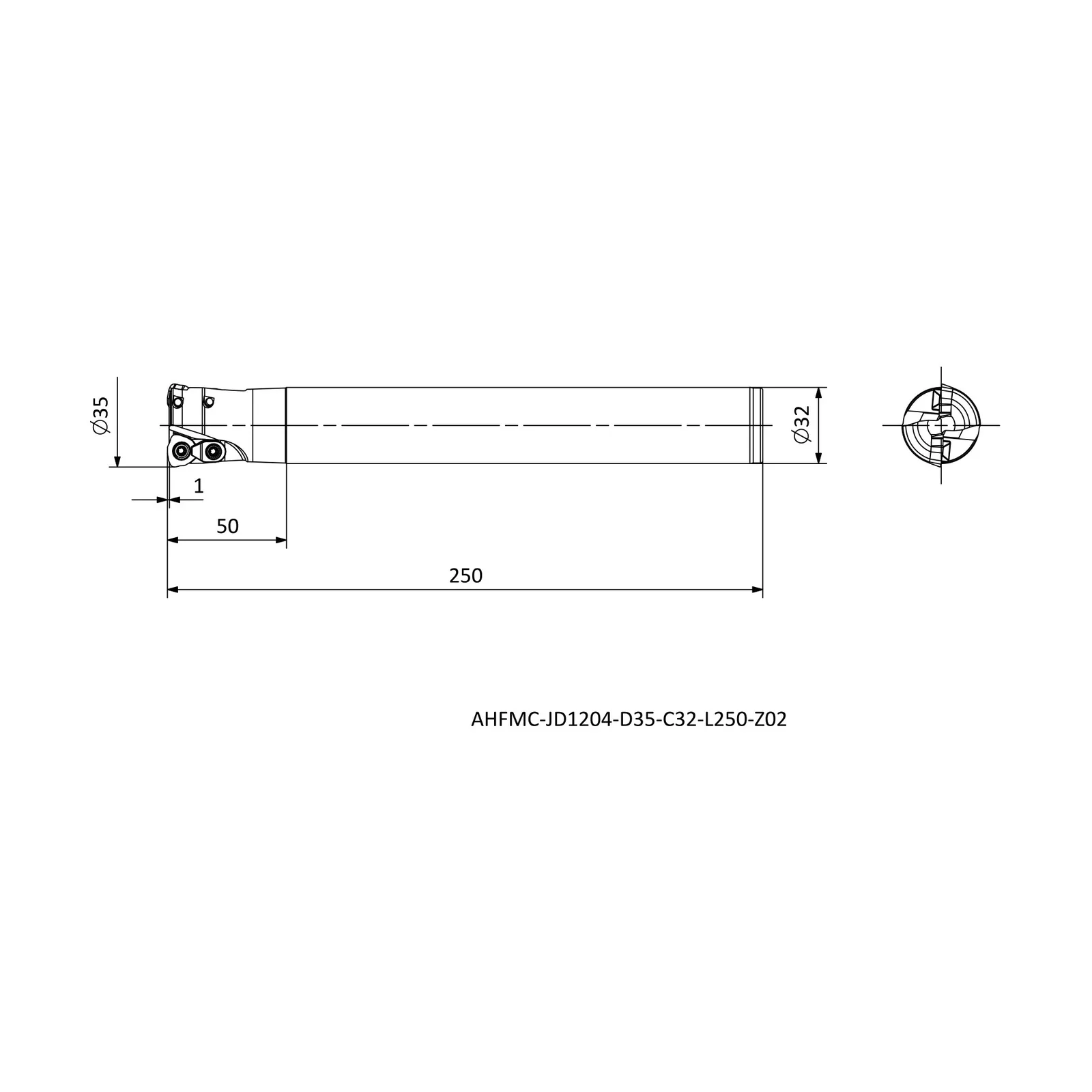

Specifications — AHFMC-JD1204-D35-C32-L250-Z02
| Insert Code | Insert designation | JDMW 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 32 |
| DCX | Maximum diameter (mm) | 35 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFMC-JD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFMC-JD1204-D32-C32-L150-Z02 | R | 32 | 32 | 32 |
| AHFMC-JD1204-D32-C32-L200-Z02 | R | 32 | 32 | 32 |
| AHFMC-JD1204-D35-C32-L200-Z02 | R | 32 | 32 | 35 |
| AHFMC-JD1204-D35-C32-L250-Z02 | R | 32 | 32 | 35 |
