Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-LO03-D25-M12-L35-Z04-H
AHFM-LO series · see all 11 sizes
Insert compatibility
This size is built for the insert designation LOGU 0303 (as listed in the catalogue data).

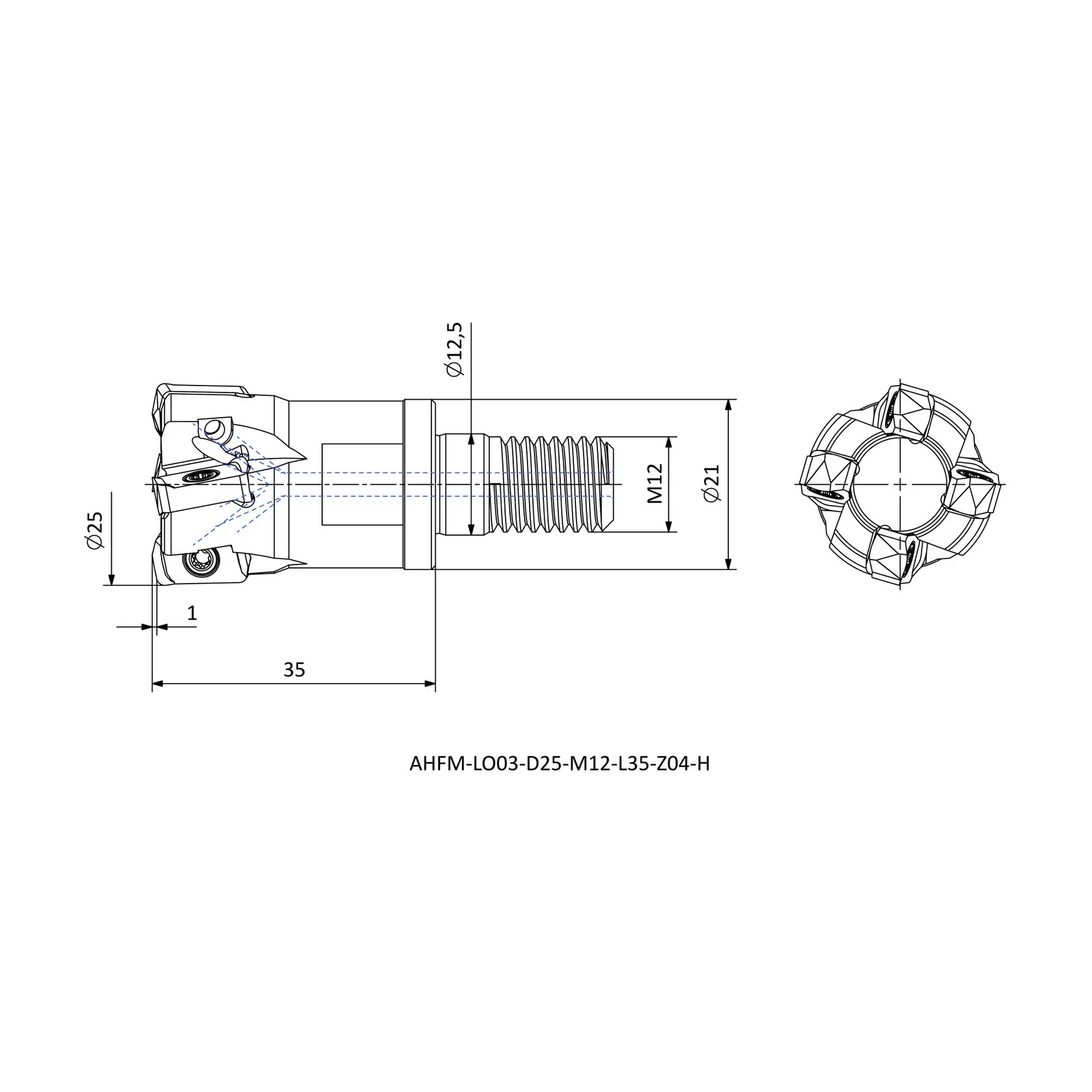

Specifications — AHFM-LO03-D25-M12-L35-Z04-H
| Insert Code | Insert designation | LOGU 0303.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
