Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-SO0803-D20-M10-L30-Z02-H
AHFM-SO series · see all 6 sizes
Insert compatibility
This size is built for the insert designation SOMW 0803 (as listed in the catalogue data).

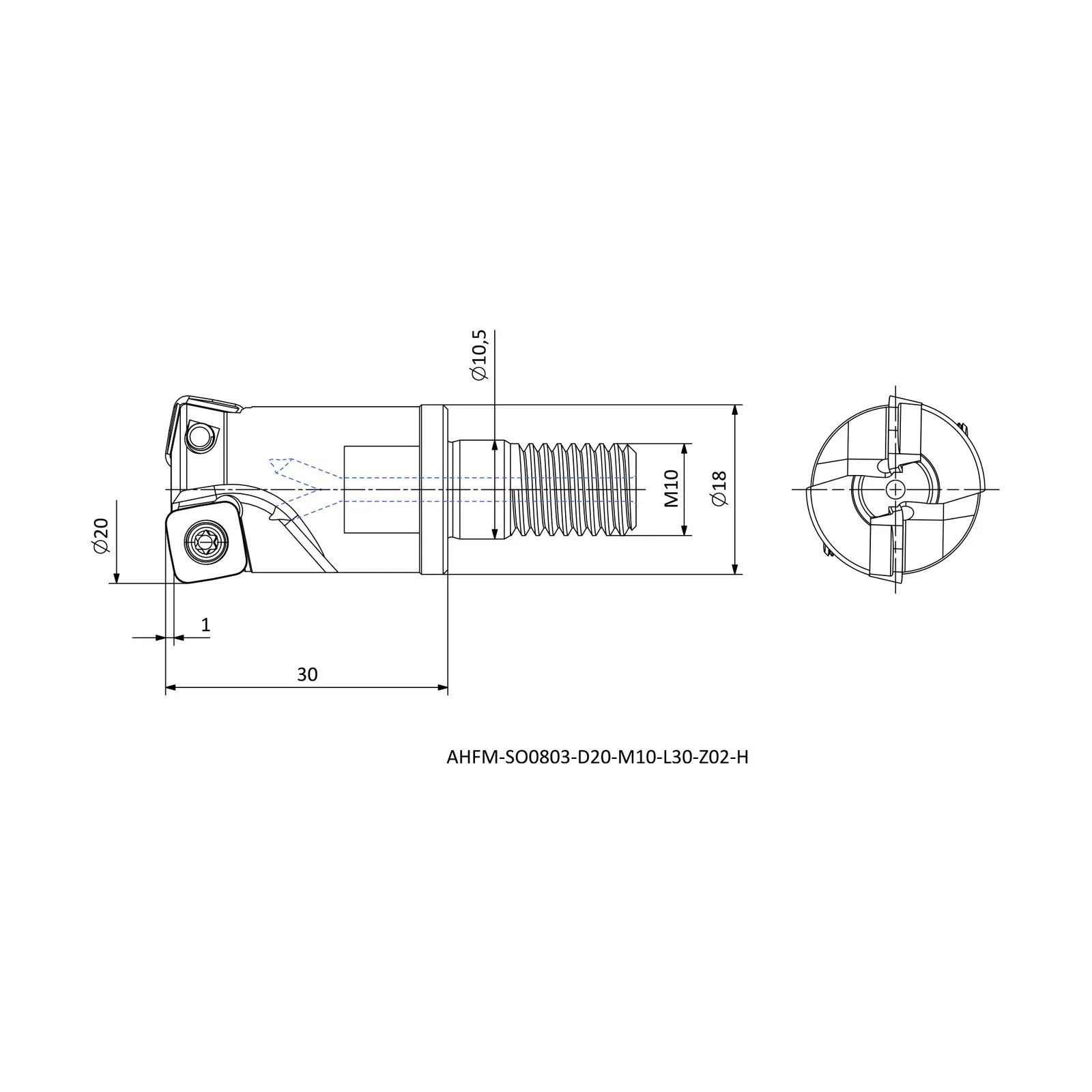

Specifications — AHFM-SO0803-D20-M10-L30-Z02-H
| Insert Code | Insert designation | SOMW 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 10.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 18 |
| LF | Functional length (mm) | 30 |
| DCX | Maximum diameter (mm) | 20 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
