Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-SO0803P-D42-M16-L35-Z05-H
AHFM-SO-803P series · see all 2 sizes
Insert compatibility
This size is built for the insert designation SO.. 0803 (as listed in the catalogue data).

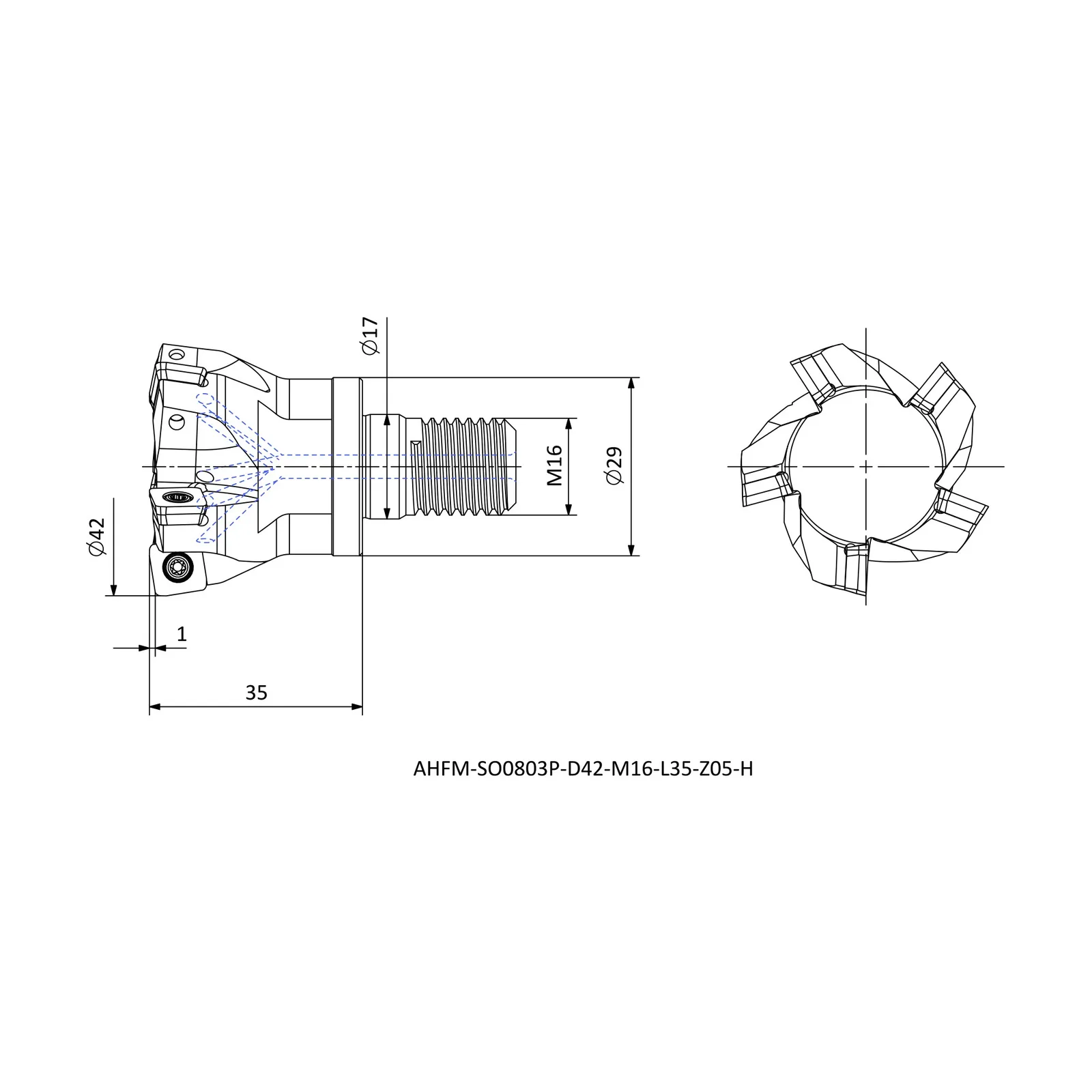

Specifications — AHFM-SO0803P-D42-M16-L35-Z05-H
| Insert Code | Insert designation | SO.. 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 42 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-SO-803P
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-SO0803P-D32-M16-L35-Z04-H | R | 17 | 29 | 35 |
| AHFM-SO0803P-D42-M16-L35-Z05-H | R | 17 | 29 | 35 |
