Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)

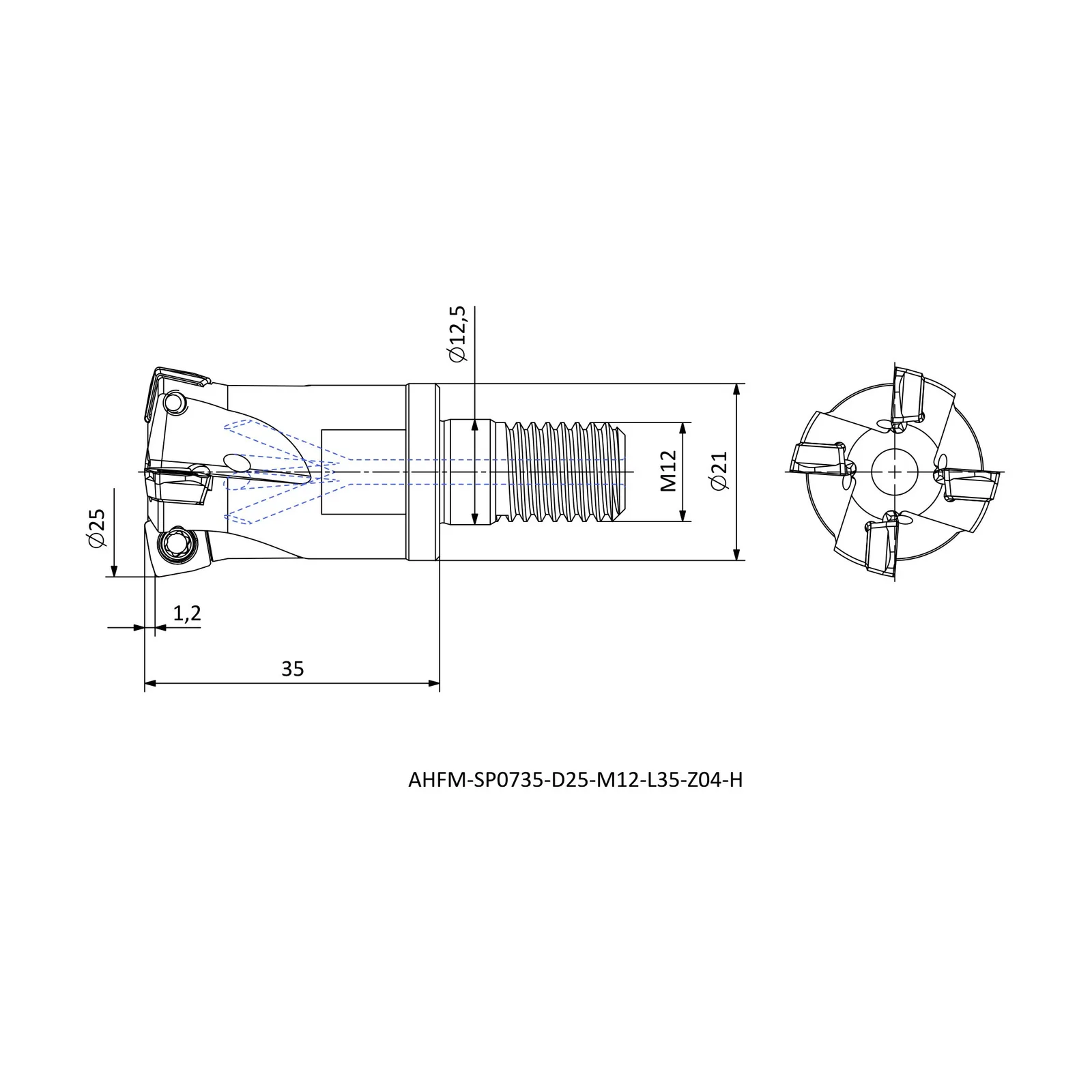

AHFM-SP0735-D25-M12-L35-Z04-H
AHFM-SP series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SPMX 073505 (as listed in the catalogue data).
Specifications — AHFM-SP0735-D25-M12-L35-Z04-H
| Insert Code | Insert designation | SPMX 073505 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1.2 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AHFM-SP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-SP0735-D16-M08-L23-Z02-H | R | 8.5 | 14.75 | 23 |
| AHFM-SP0735-D20-M10-L30-Z03-H | R | 10.5 | 18 | 30 |
| AHFM-SP0735-D25-M12-L35-Z04-H | R | 12.5 | 21 | 35 |
