Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-WN09T3-D35-M16-L40-Z04-H
AHFM-WN series · see all 3 sizes
Insert compatibility
This size is built for the insert designation WNMX 09T3 (as listed in the catalogue data).

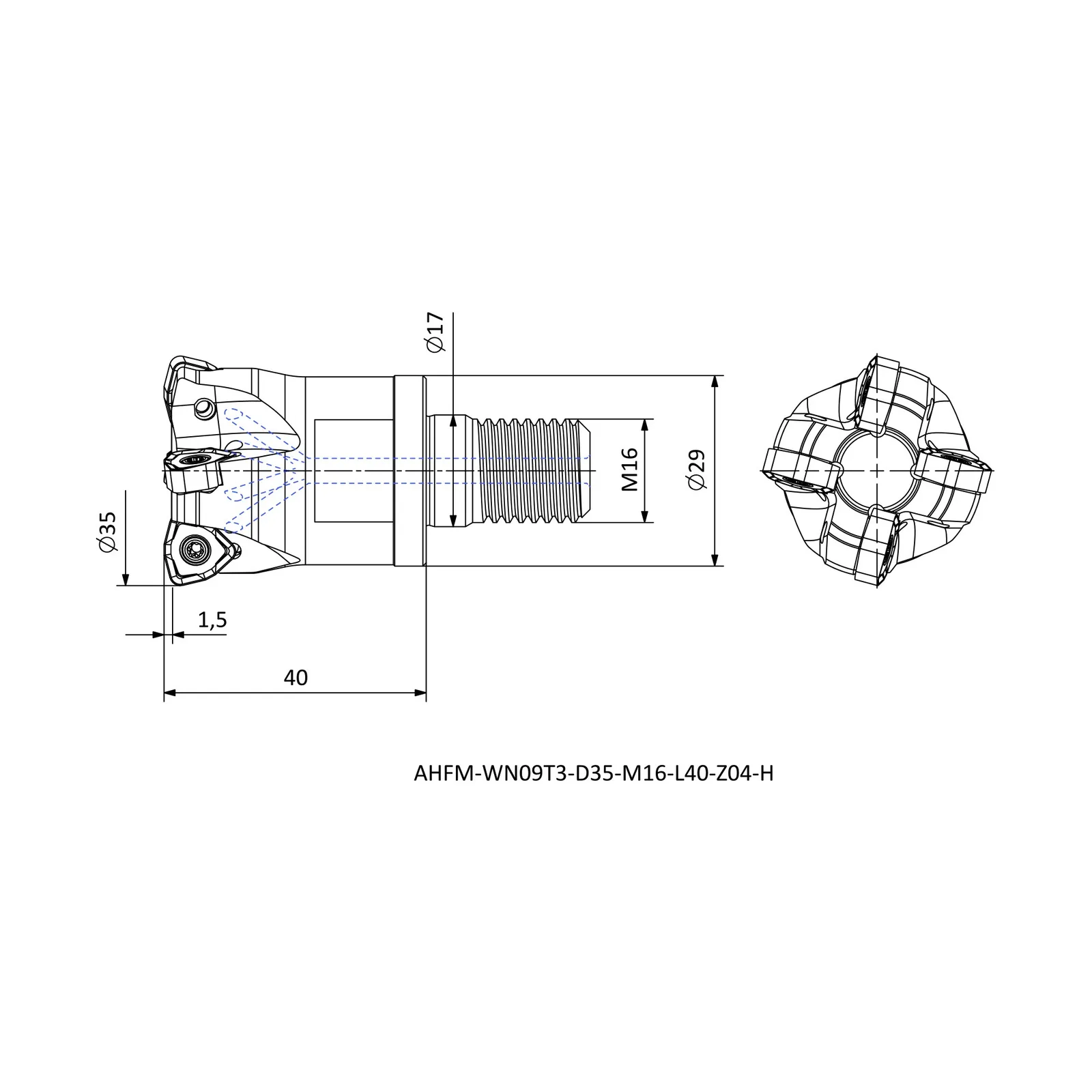

Specifications — AHFM-WN09T3-D35-M16-L40-Z04-H
| Insert Code | Insert designation | WNMX 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 26 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 35 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AHFM-WN
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-WN09T3-D32-M16-L40-Z03-H | R | 17 | 29 | 40 |
| AHFM-WN09T3-D35-M16-L40-Z04-H | R | 17 | 26 | 40 |
| AHFM-WN09T3-D40-M16-L40-Z04-H | R | 17 | 29 | 40 |
