Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-YP1003-D25-M12-L35-Z04-F
AHFM-YP series · see all 18 sizes
Insert compatibility
This size is built for the insert designation EP.. 1003 (as listed in the catalogue data).

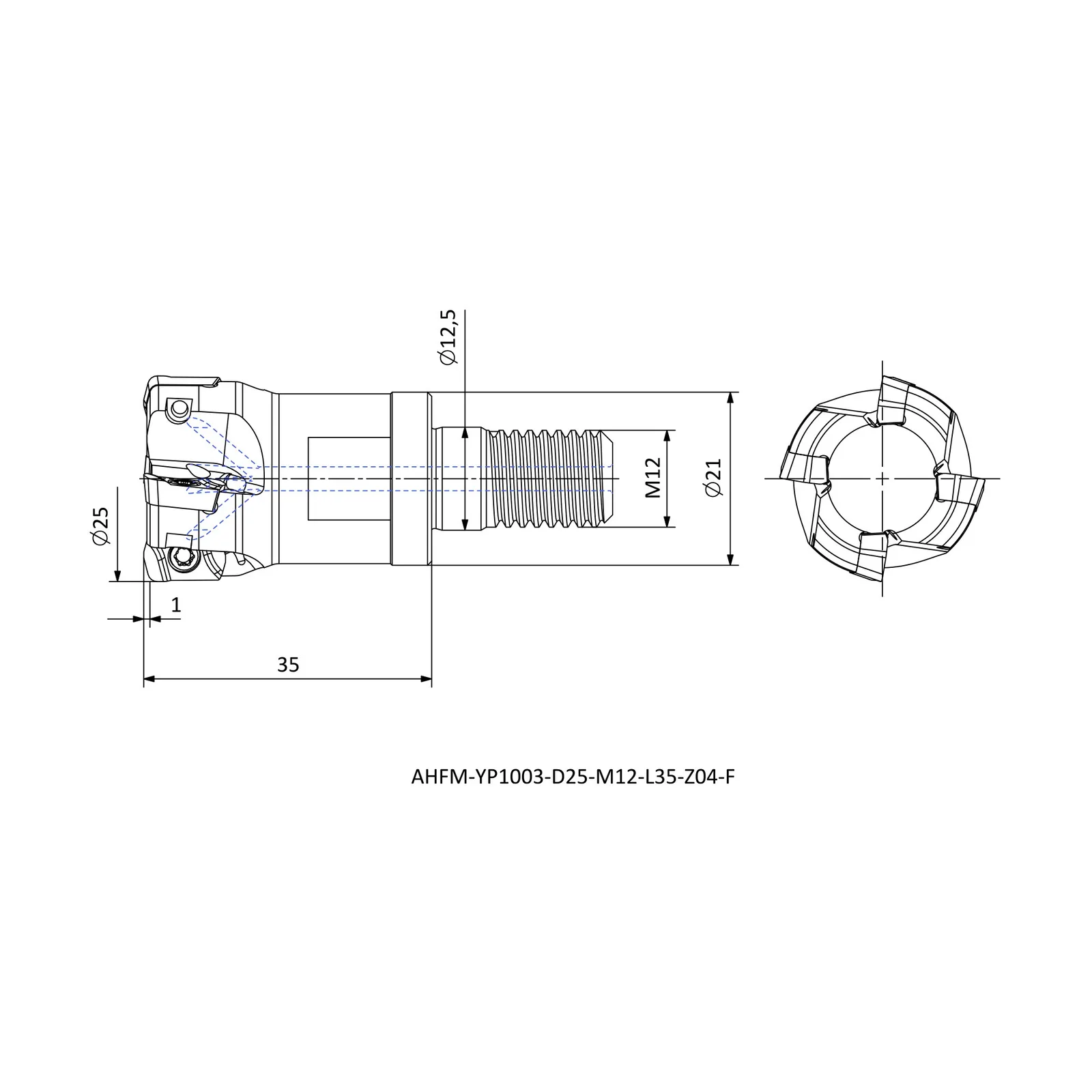

Specifications — AHFM-YP1003-D25-M12-L35-Z04-F
| Insert Code | Insert designation | EP.. 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AHFM-YP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AHFM-YP1003-D17-M08-L23-Z02-H | R | 17 | 8.5 | 14.75 |
| AHFM-YP1003-D17-M08-L23-Z02-H-F | R | 17 | 8.5 | 14.75 |
| AHFM-YP1003-D20-M10-L30-Z03-H-F | R | 20 | 10.5 | 18 |
| AHFM-YP1003-D42-M16-L43-Z06-H-F | R | 42 | 17 | 29 |
| AHFM-YP1003-D20-M10-L30-Z04-F | R | 20 | 10.5 | 18 |
| AHFM-YP1003-D25-M12-L35-Z04-F | R | 25 | 12.5 | 21 |
| AHFM-YP1003-D25-M12-L35-Z04-H | R | 25 | 12.5 | 21 |
| AHFM-YP1003-D16-M08-L23-Z02-F | R | 16 | 8.5 | 14.75 |
| AHFM-YP1003-D16-M08-L23-Z02-H-F | R | 16 | 8.5 | 14.75 |
| AHFM-YP1003-D20-M10-L30-Z03-H | R | 20 | 10.5 | 18 |
| AHFM-YP1003-D20-M10-L30-Z04-H | R | 20 | 10.5 | 18 |
| AHFM-YP1003-D21-M10-L30-Z03-H | R | 21 | 10.5 | 18 |
| AHFM-YP1003-D21-M10-L30-Z03-H-F | R | 21 | 10.5 | 18 |
| AHFM-YP1003-D32-M16-L30-Z05-F | R | 32 | 17 | 29 |
| AHFM-YP1003-D32-M16-L43-Z05-H-F | R | 32 | 17 | 29 |
| AHFM-YP1003-D40-M16-L43-Z06-H-F | R | 40 | 17 | 29 |
| AHFM-YP1003-D25-M12-L35-Z04-H-F | R | 25 | 12.5 | 21 |
| AHFM-YP1003-D26-M12-L35-Z04-H-F | R | 26 | 12.5 | 21 |
