Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFM-WD0503D-D32-M16-L43-Z04-H
AHFMC-WD series · see all 6 sizes
Insert compatibility
This size is built for the insert designation WDMT 0503 (as listed in the catalogue data).

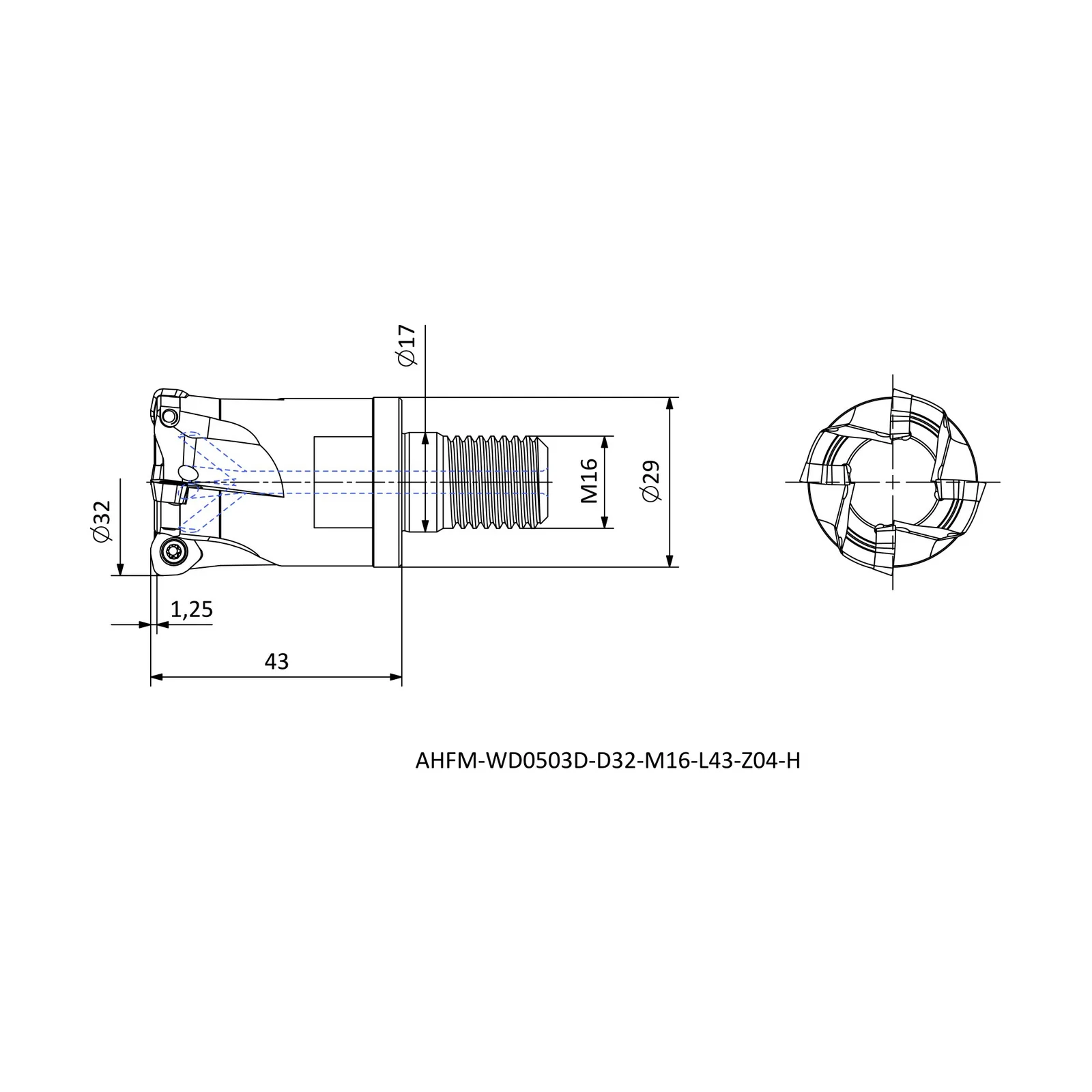

Specifications — AHFM-WD0503D-D32-M16-L43-Z04-H
| Insert Code | Insert designation | WDMT 0503.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 43 |
| DCX | Maximum diameter (mm) | 32 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1.25 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AHFMC-WD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-WD0503D-D20-M10-L30-Z02-H | R | 10.5 | 18 | 30 |
| AHFM-WD0503D-D25-M12-L35-Z03-H | R | 12.5 | 21 | 35 |
| AHFM-WD0503D-D32-M16-L43-Z04-H | R | 17 | 29 | 43 |
| AHFM-WD0503D-D40-M16-L43-Z05-H | R | 17 | 29 | 43 |
| AHFMC-WD06T3D-D35-M16-L43-Z03-H | R | 17 | 29 | 43 |
| AHFMC-WD0805D-D32-M16-L43-Z02-H | R | 17 | 29 | 43 |
