Tool Holders / S-System Modular End Mills (SCREW Type Tools)
AEM90-3P1004-D32-M16-L43-Z05-H
AEM90-3P series · see all 2 sizes
Insert compatibility
This size is built for the insert designation 3PKT (as listed in the catalogue data).

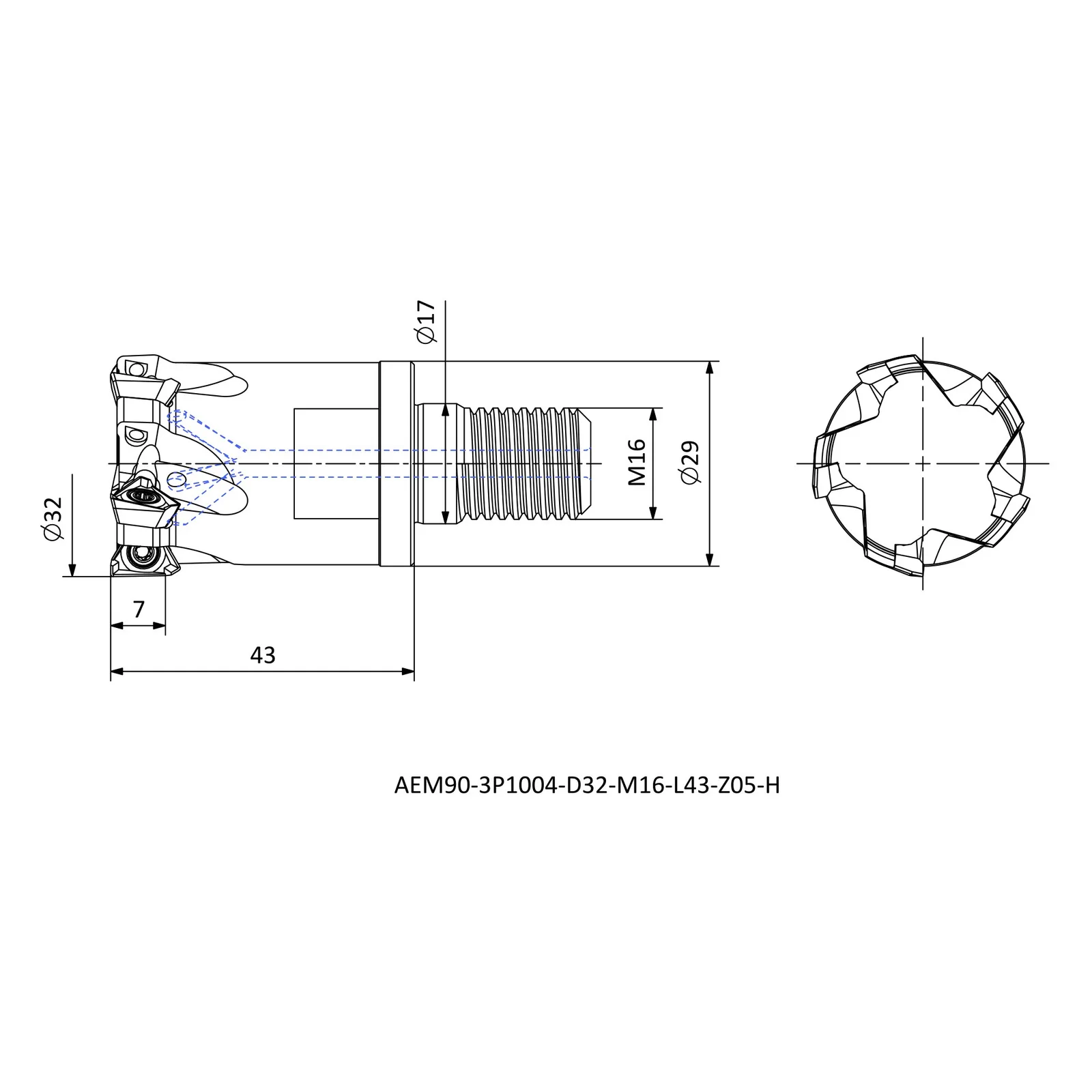

Specifications — AEM90-3P1004-D32-M16-L43-Z05-H
| Insert Code | Insert designation | 3PKT 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 43 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 7 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEM90-3P
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-3P1004-D20-M10-L35-Z02 | R | 20 | 10.5 | 18 |
| AEM90-3P1004-D32-M16-L43-Z05-H | R | 32 | 17 | 29 |
