Tool Holders / S-System Modular End Mills (SCREW Type Tools)

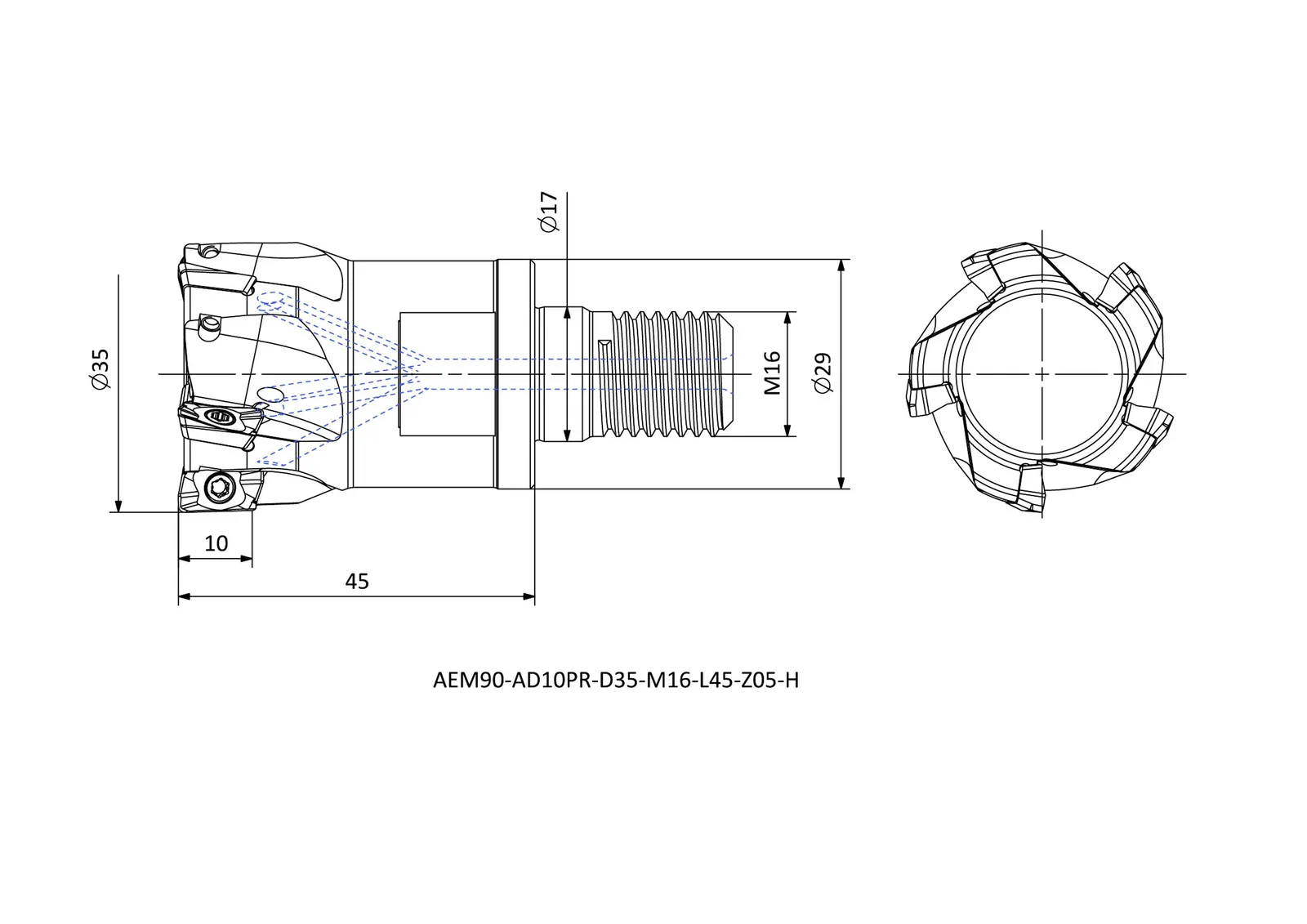

AEM90-AD10PR-D35-M16-L45-Z05-H
AEM90-AD-H series · see all 11 sizes
Insert compatibility
This size is built for the insert designation AD.. 1003 (as listed in the catalogue data).
Specifications — AEM90-AD10PR-D35-M16-L45-Z05-H
| Insert Code | Insert designation | AD.. 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 35 |
| DCON | Connection diameter (mm) | 17 |
| LF | Functional length (mm) | 45 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AEM90-AD-H
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AD06-D12-M06-L20-Z02-H | R | 12 | 6.5 | 20 |
| AEM90-AD06-D16-M08-L23-Z03-H | R | 16 | 8.5 | 23 |
| AEM90-AD10PR-D16-M08-L23-Z02-H | R | 16 | 8.5 | 23 |
| AEM90-AD10PR-D20-M10-L30-Z03-H | R | 20 | 10.5 | 30 |
| AEM90-AD10PR-D25-M12-L35-Z04-H | R | 25 | 12.5 | 35 |
| AEM90-AD10PR-D32-M16-L40-Z04-H | R | 32 | 17 | 40 |
| AEM90-AD10PR-D35-M16-L45-Z05-H | R | 35 | 17 | 45 |
| AEM90-AD13-D20-M10-L30-Z02-H | R | 20 | 10.5 | 30 |
| AEM90-AD13-D25-M12-L35-Z03-H | R | 25 | 12.5 | 35 |
| AEM90-AD13-D32-M16-L40-Z03-H | R | 32 | 17 | 40 |
| AEM90-AD13-D35-M16-L45-Z04-H | R | 35 | 17 | 45 |
