Tool Holders / S-System Modular End Mills (SCREW Type Tools)

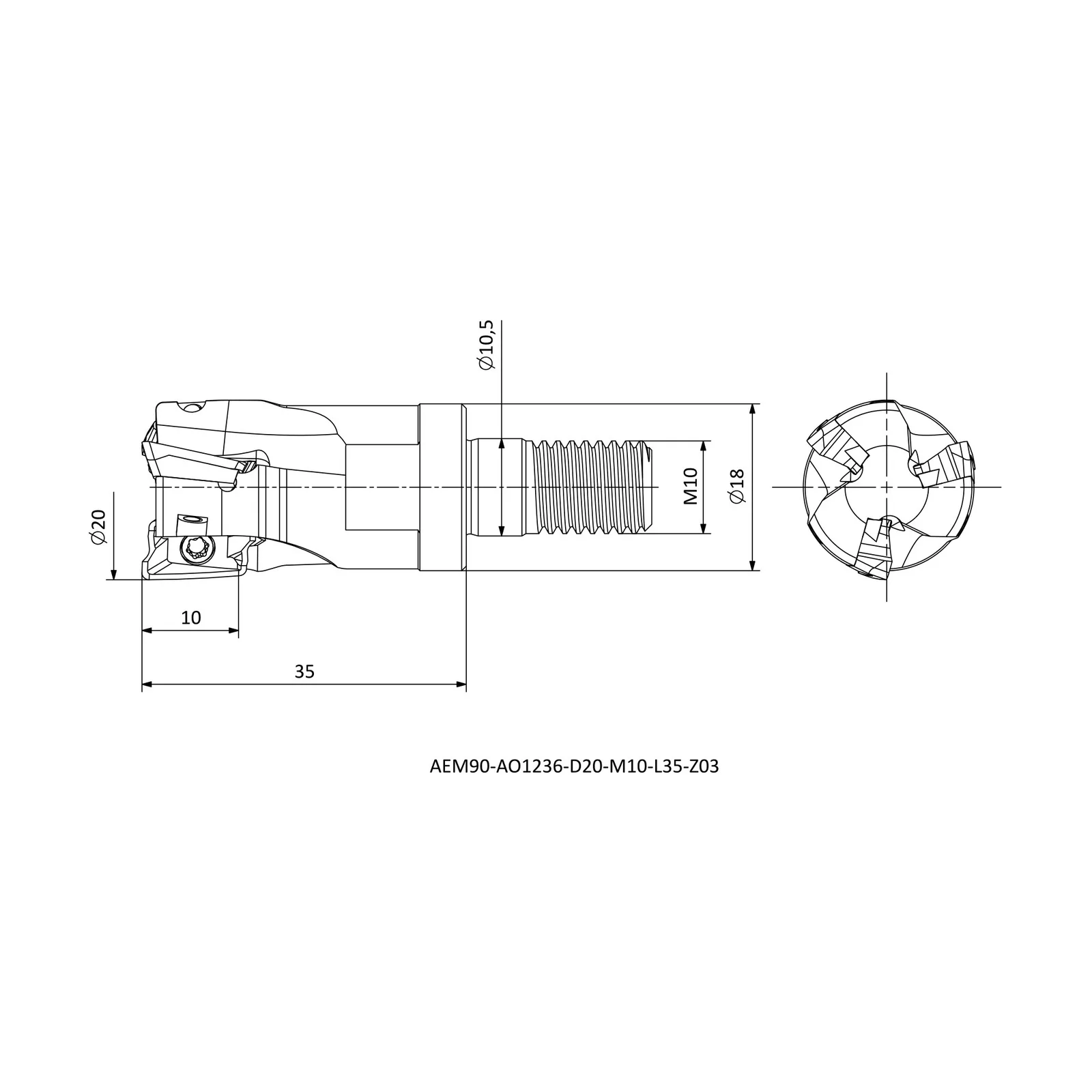

AEM90-AO1236-D20-M10-L35-Z03
AEM90-AO series · see all 2 sizes
Insert compatibility
This size is built for the insert designation AO.. 1236 (as listed in the catalogue data).
Specifications — AEM90-AO1236-D20-M10-L35-Z03
| Insert Code | Insert designation | AO.. 1236.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 10.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 18 |
| LF | Functional length (mm) | 35 |
| APMX | Depth of cut, maximum (mm) | 10 |
| Z | Number of flutes / teeth | 3 |
| TDZ | Thread depth (mm) | M10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEM90-AO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-AO1236-D16-M08-L30-Z02 | R | 16 | 8.5 | 14.8 |
| AEM90-AO1236-D20-M10-L35-Z03 | R | 20 | 10.5 | 18 |
