Tool Holders / S-System Modular End Mills (SCREW Type Tools)
AEM90-AP0903-D25-M12-L35-Z03
AEM90-AP-KRLY series · see all 2 sizes
Insert compatibility
This size is built for the insert designation APMT 0903 (as listed in the catalogue data).

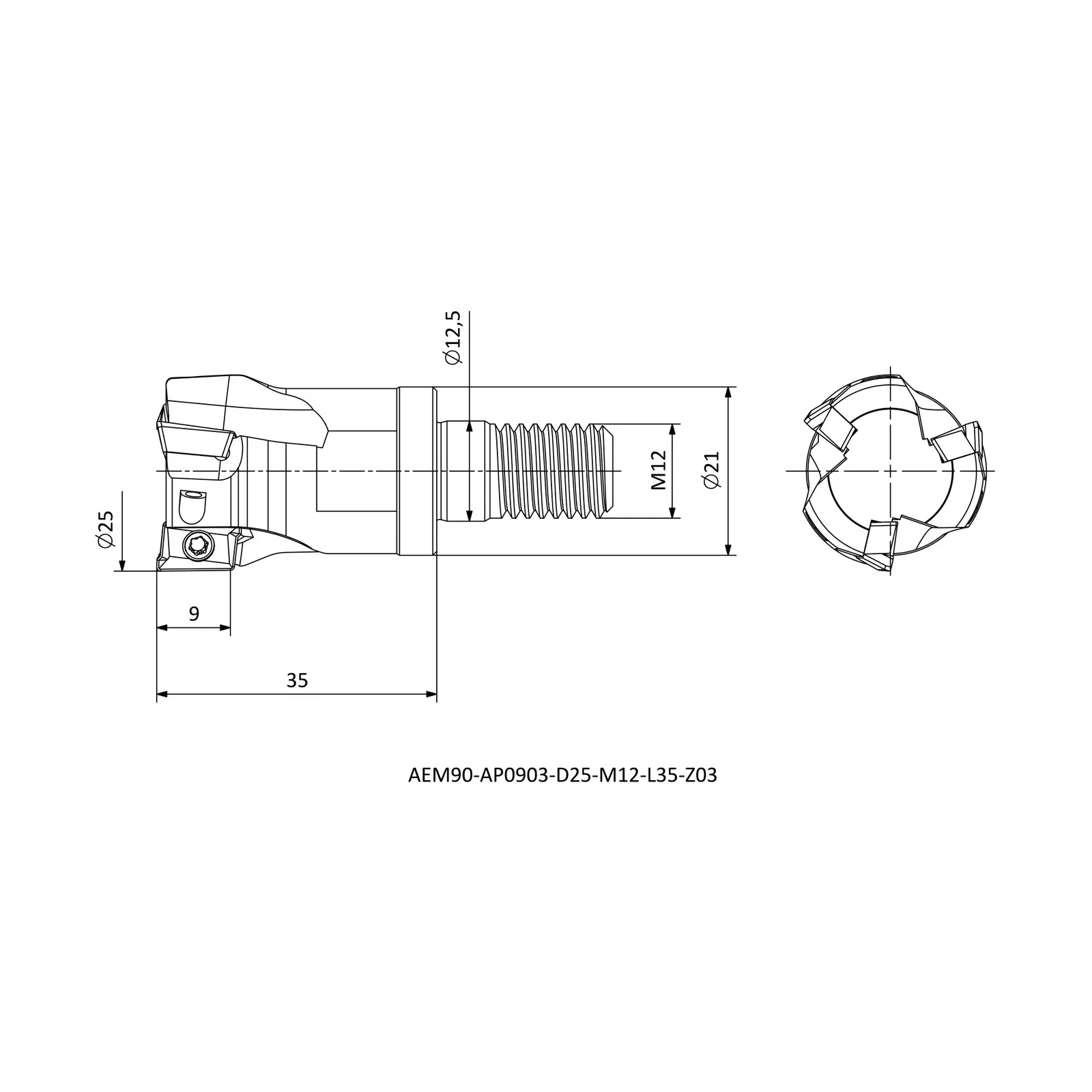

Specifications — AEM90-AP0903-D25-M12-L35-Z03
| Insert Code | Insert designation | APMT 0903.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 9 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEM90-AP-KRLY
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-AP0903-D20-M12-L35-Z03 | R | 20 | 12.5 | 18 |
| AEM90-AP0903-D25-M12-L35-Z03 | R | 25 | 12.5 | 21 |
