Tool Holders / S-System Modular End Mills (SCREW Type Tools)

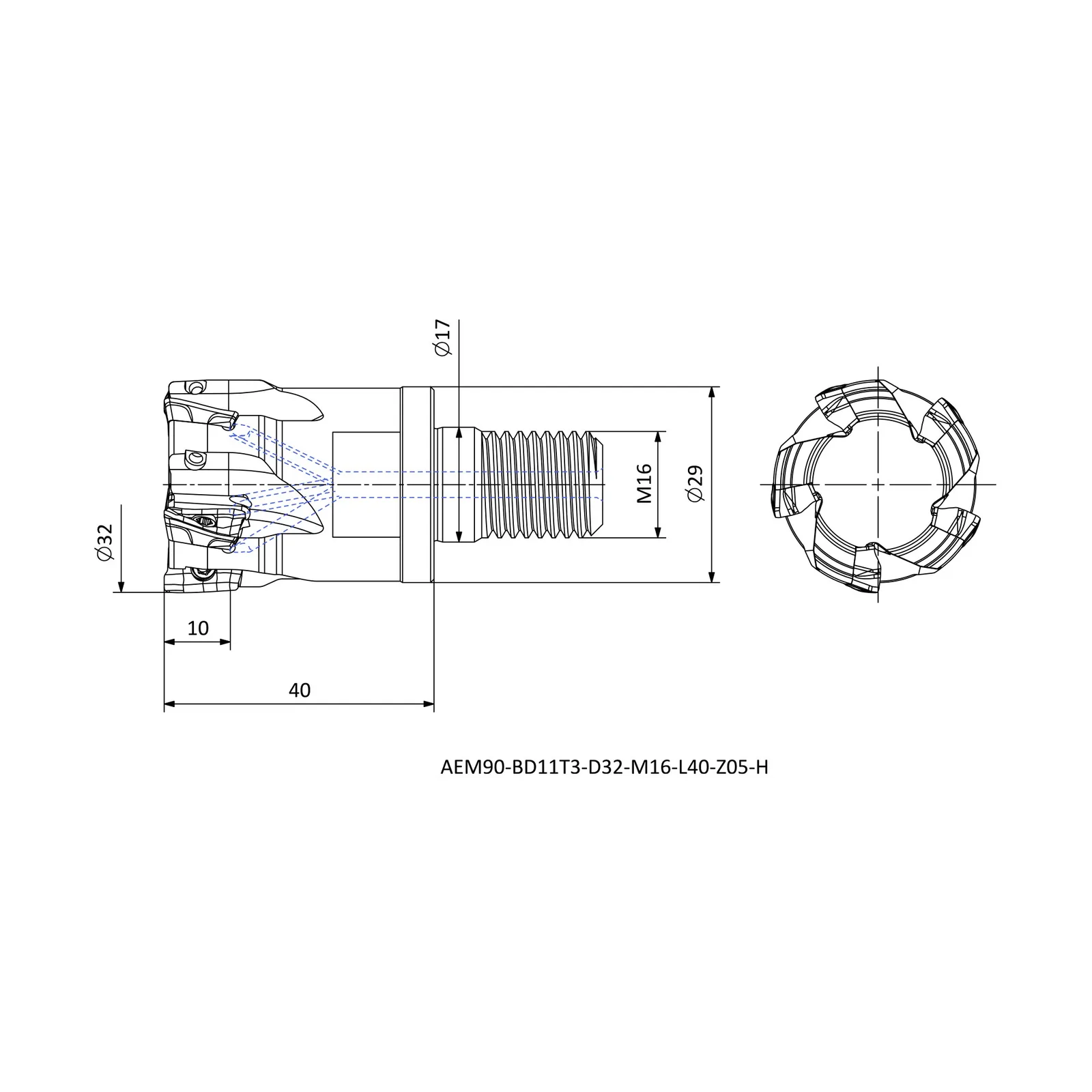

AEM90-BD11T3-D32-M16-L40-Z05-H
AEM90-BD-H series · see all 3 sizes
Insert compatibility
This size is built for the insert designation BDMT 11T3 (as listed in the catalogue data).
Specifications — AEM90-BD11T3-D32-M16-L40-Z05-H
| Insert Code | Insert designation | BDMT 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 10 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEM90-BD-H
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-BD11T3-D16-M08-L25-Z02-H | R | 16 | 8.5 | 14.75 |
| AEM90-BD11T3-D25-M12-L35-Z04-H | R | 25 | 12.5 | 21 |
| AEM90-BD11T3-D32-M16-L40-Z05-H | R | 32 | 17 | 29 |
