Tool Holders / S-System Modular End Mills (SCREW Type Tools)
AEM90-R390.11-D32-M16-L43-Z04-H
AEM90-R390 series · see all 4 sizes
Insert compatibility
This size is built for the insert designation R 390 (as listed in the catalogue data).

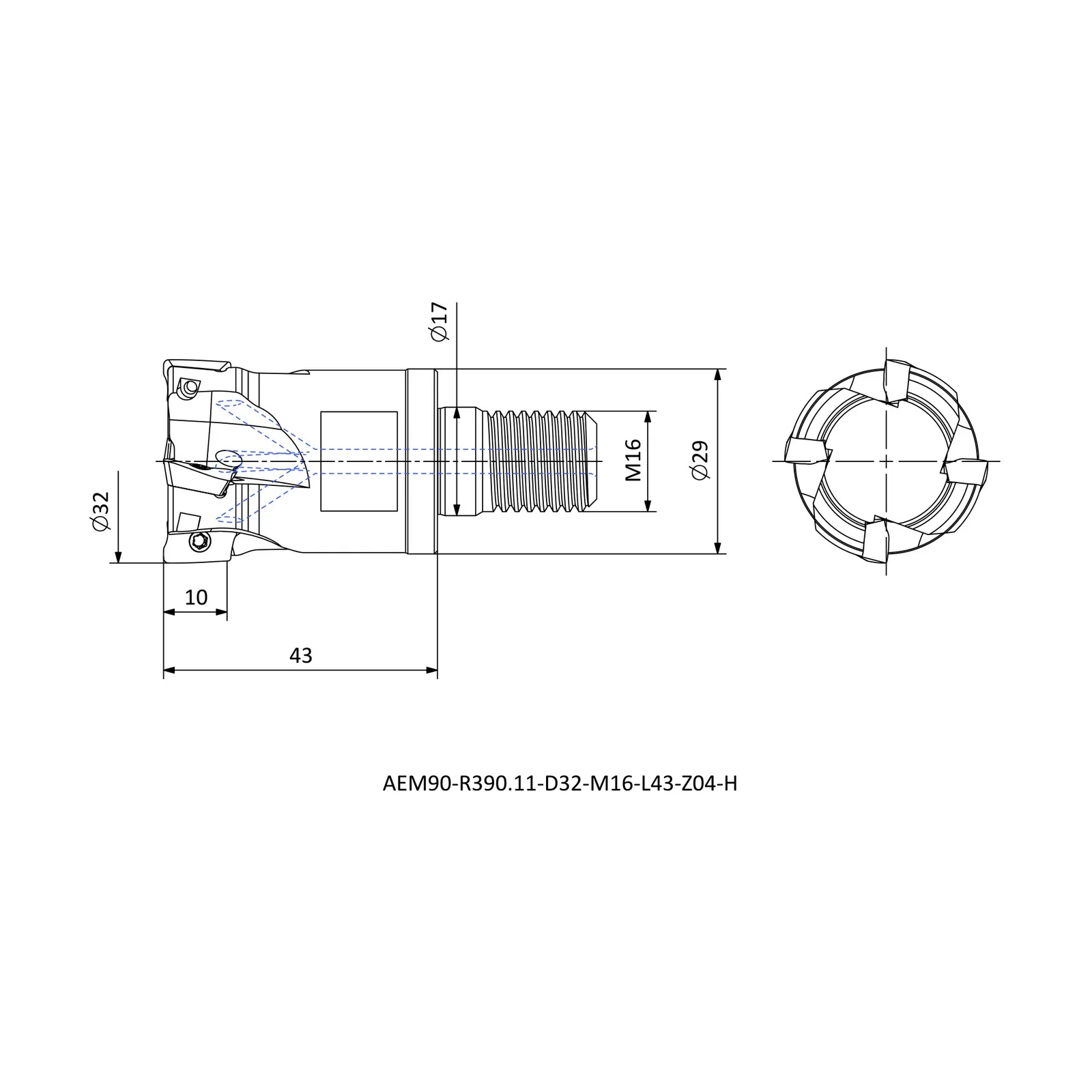

Specifications — AEM90-R390.11-D32-M16-L43-Z04-H
| Insert Code | Insert designation | R390-11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 43 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 10 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AEM90-R390
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-R390.11-D16-M08-L30-Z02-H | R | 16 | 8.5 | 14.75 |
| AEM90-R390.11-D20-M10-L30-Z03-H | R | 20 | 10.5 | 18 |
| AEM90-R390.11-D25-M12-L35-Z03-H | R | 25 | 12.5 | 21 |
| AEM90-R390.11-D32-M16-L43-Z04-H | R | 32 | 17 | 29 |
