Tool Holders / S-System Modular End Mills (SCREW Type Tools)

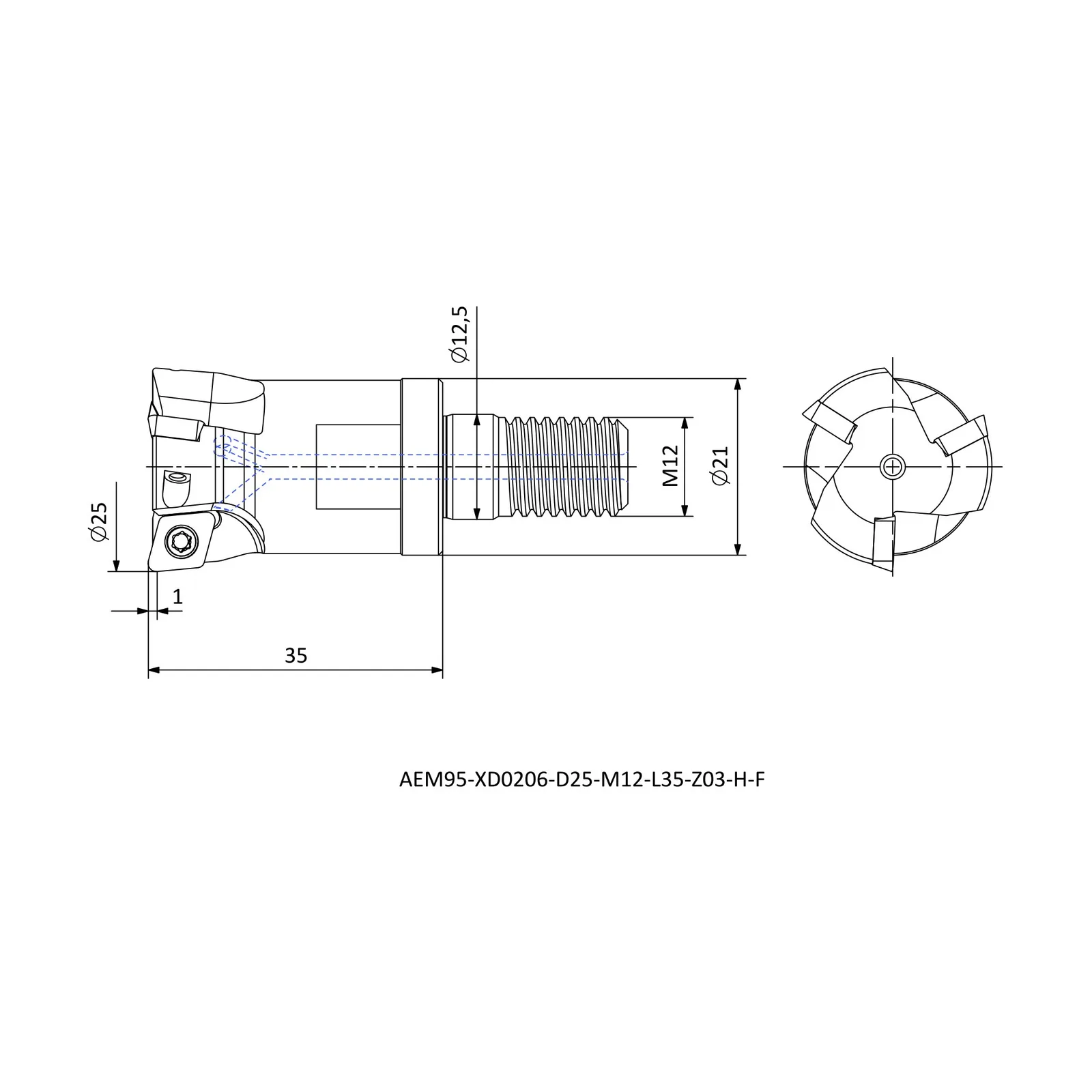

AEM95-XD0206-D25-M12-L35-Z03-H-F
AEM95-XD series · see all 10 sizes
Insert compatibility
This size is built for the insert designation XDHW 0206 (as listed in the catalogue data).
Specifications — AEM95-XD0206-D25-M12-L35-Z03-H-F
| Insert Code | Insert designation | XDHW 0206.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in AEM95-XD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM95-XD0206-D16-M08-L23-Z02-H | R | 16 | 8.5 | 14.75 |
| AEM95-XD0206-D16-M08-L23-Z02-H-F | R | 16 | 8.5 | 14.75 |
| AEM95-XD0206-D20-M10-L30-Z03-H | R | 20 | 10.5 | 18 |
| AEM95-XD0206-D20-M10-L30-Z03-H-F | R | 20 | 10.5 | 18 |
| AEM95-XD0206-D25-M12-L35-Z03-H | R | 25 | 12.5 | 21 |
| AEM95-XD0206-D25-M12-L35-Z03-H-F | R | 25 | 12.5 | 21 |
| AEM95C-XD0310-D35-M16-L43-Z03-H | R | 35 | 17 | 29 |
| AEM95C-XD0310-D35-M16-L43-Z03-H-F | R | 35 | 17 | 29 |
| AEM95C-XD0310-D42-M16-L43-Z04-H | R | 42 | 17 | 29 |
| AEM95C-XD0310-D42-M16-L43-Z04-H-F | R | 42 | 17 | 29 |
