Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SDJCR 2020 X07-S
SDJCR/L-S series · see all 28 sizes
Insert compatibility
This size is built for the insert designation DC.T 0702 (as listed in the catalogue data).

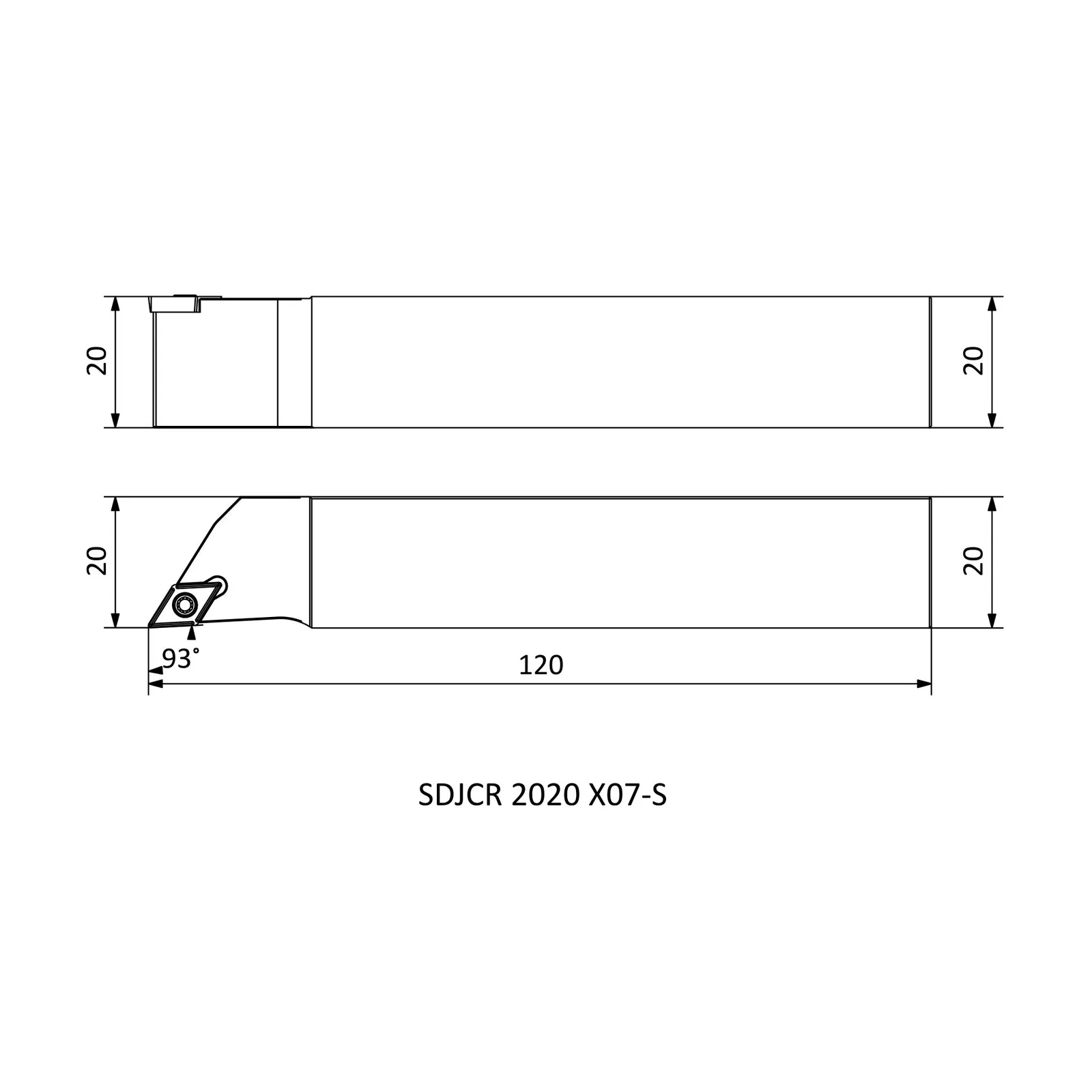

Specifications — SDJCR 2020 X07-S
| Insert Code | Insert designation | DC.T 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 120 |
| WF | Functional width (mm) | 20 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 28 sizes in SDJCR/L-S
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SDJCL 0808 X07-S | L | 115 | 8 | 8 |
| SDJCR 0808 X07-S | R | 115 | 8 | 8 |
| SDJCL 1010 X07-S | L | 115 | 10 | 10 |
| SDJCR 1010 X07-S | R | 115 | 10 | 10 |
| SDJCL 1212 G07-S | L | 90 | 12 | 12 |
| SDJCR 1212 G07-S | R | 90 | 12 | 12 |
| SDJCL 1212 X07-S | L | 130 | 12 | 12 |
| SDJCR 1212 X07-S | R | 130 | 12 | 12 |
| SDJCL 1616 F07-S | L | 75 | 16 | 16 |
| SDJCR 1616 F07-S | R | 75 | 16 | 16 |
| SDJCL 1616 X07-S | L | 130 | 16 | 16 |
| SDJCR 1616 X07-S | R | 130 | 16 | 16 |
| SDJCL 2020 X07-S | L | 120 | 20 | 20 |
| SDJCR 2020 X07-S | R | 120 | 20 | 20 |
| SDJCL 1212 G11-S | L | 90 | 12 | 12 |
| SDJCR 1212 G11-S | R | 90 | 12 | 12 |
| SDJCL 1212 X11-S | L | 130 | 12 | 12 |
| SDJCR 1212 X11-S | R | 130 | 12 | 12 |
| SDJCL 1212 K11-S | L | 125 | 12 | 12 |
| SDJCR 1212 K11-S | R | 125 | 12 | 12 |
| SDJCL 1616 F11-S | L | 75 | 16 | 16 |
| SDJCR 1616 F11-S | R | 75 | 16 | 16 |
| SDJCL 1616 X11-S | L | 130 | 16 | 16 |
| SDJCR 1616 X11-S | R | 130 | 16 | 16 |
| SDJCL 1616 K11-S | L | 125 | 16 | 16 |
| SDJCR 1616 K11-S | R | 125 | 16 | 16 |
| SDJCL 2020 X11-S | L | 120 | 20 | 20 |
| SDJCR 2020 X11-S | R | 120 | 20 | 20 |
