Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SDJCR 1616 K11-SHC
SDJCR/L-SHC series · see all 10 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

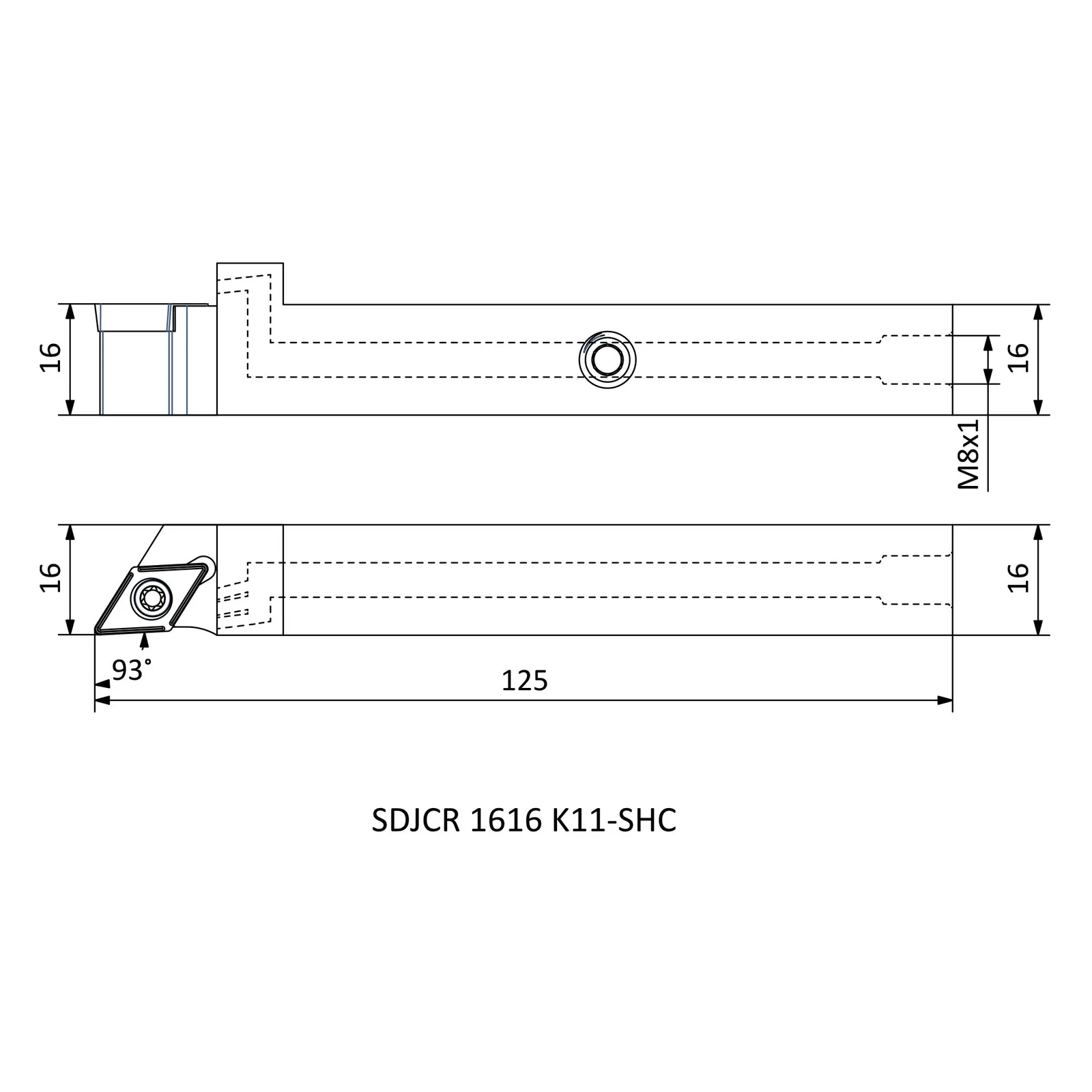

Specifications — SDJCR 1616 K11-SHC
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in SDJCR/L-SHC
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SDJCL 0810 G07-SHC | L | 90 | 10 | 8 |
| SDJCR 0810 G07-SHC | R | 90 | 10 | 8 |
| SDJCL 1010 K07-SHC | L | 125 | 10 | 10 |
| SDJCR 1010 K07-SHC | R | 125 | 10 | 10 |
| SDJCL 1012 K11-SHC | L | 125 | 12 | 10 |
| SDJCR 1012 K11-SHC | R | 125 | 12 | 10 |
| SDJCL 1212 K11-SHC | L | 125 | 12 | 12 |
| SDJCR 1212 K11-SHC | R | 125 | 12 | 12 |
| SDJCL 1616 K11-SHC | L | 125 | 16 | 16 |
| SDJCR 1616 K11-SHC | R | 125 | 16 | 16 |
