Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
STGCR 1616 K11-S
STGCR/L-S series · see all 8 sizes
Insert compatibility
This size is built for the insert designation TC.T 1102 (as listed in the catalogue data).

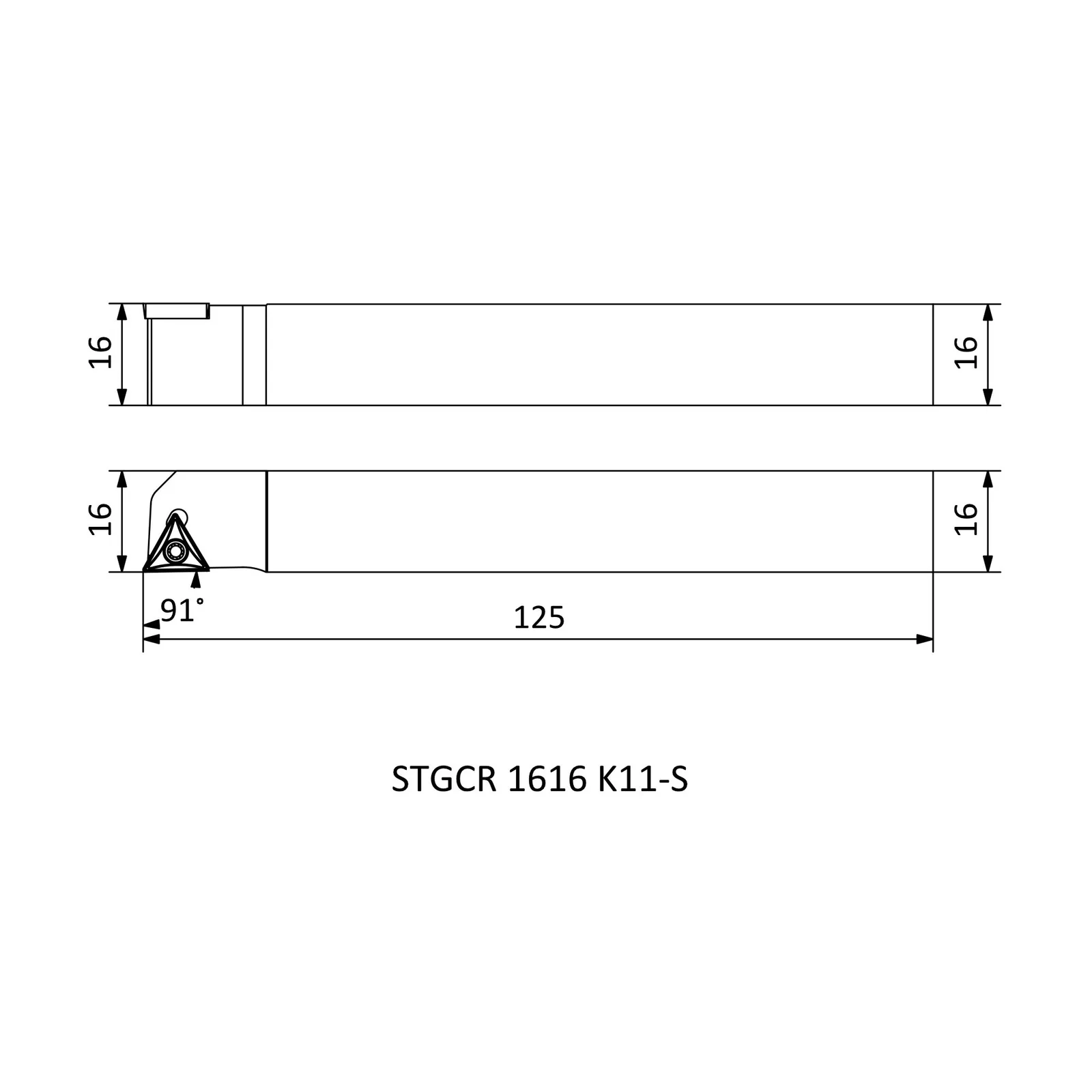

Specifications — STGCR 1616 K11-S
| Insert Code | Insert designation | TC.T 1102.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in STGCR/L-S
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| STGCL 1216 K11-S | L | 125 | 16 | 12 |
| STGCR 1216 K11-S | R | 125 | 16 | 12 |
| STGCL 1616 K11-S | L | 125 | 16 | 16 |
| STGCR 1616 K11-S | R | 125 | 16 | 16 |
| STGCL 1216 K16-S | L | 125 | 16 | 12 |
| STGCR 1216 K16-S | R | 125 | 16 | 12 |
| STGCL 1616 K16-S | L | 125 | 16 | 16 |
| STGCR 1616 K16-S | R | 125 | 16 | 16 |
