Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
STGCR 1616 K16-SHC
STGCR/L-SHC series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

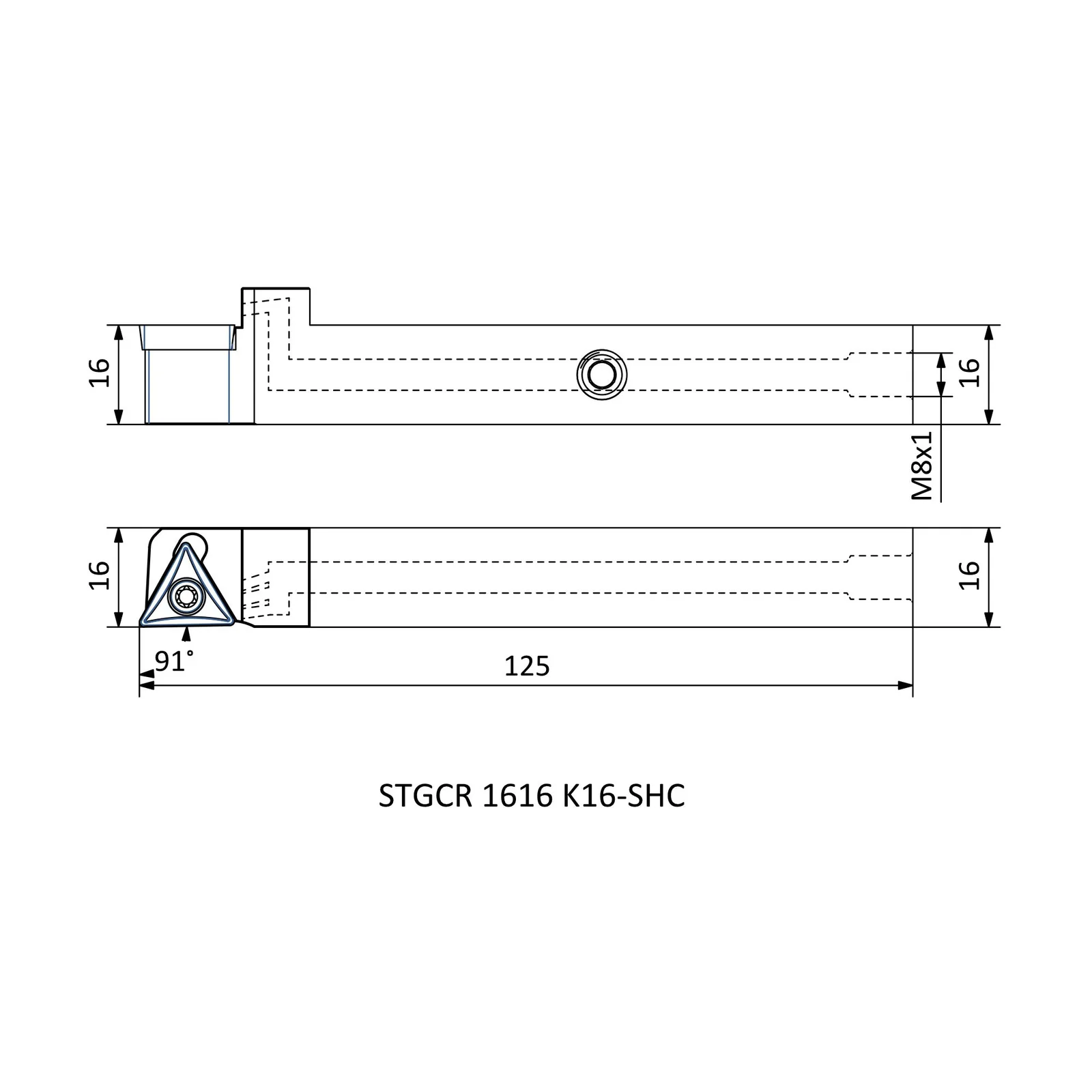

Specifications — STGCR 1616 K16-SHC
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in STGCR/L-SHC
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| STGCL 1216 K16-SHC | L | 125 | 16 | 12 |
| STGCR 1216 K16-SHC | R | 125 | 16 | 12 |
| STGCL 1616 K16-SHC | L | 125 | 16 | 16 |
| STGCR 1616 K16-SHC | R | 125 | 16 | 16 |
