Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SVACR 1010 K11-S
SVACR/L-S series · see all 24 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).

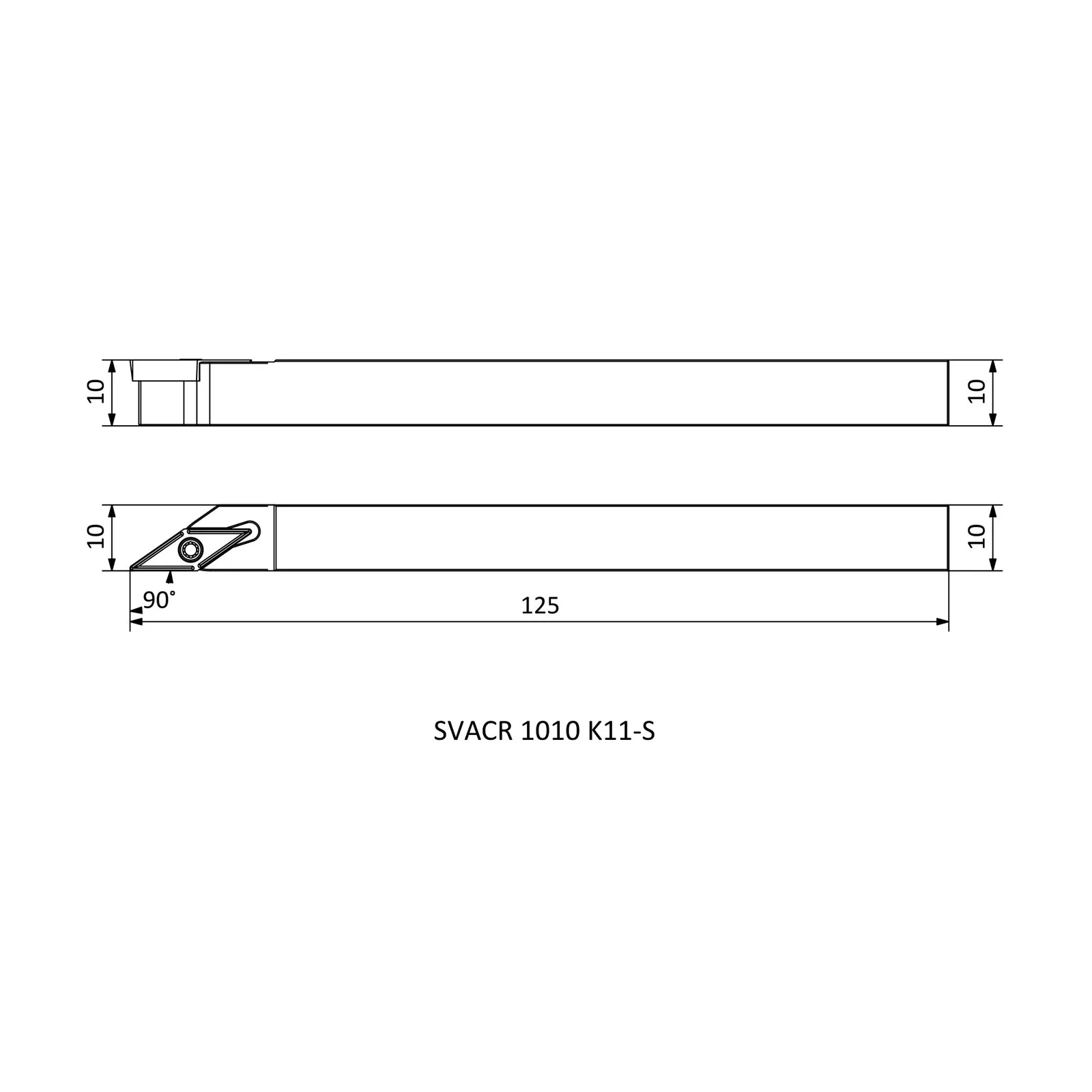

Specifications — SVACR 1010 K11-S
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 10 |
| HF=H | Functional height (mm) | 10 |
| B | Shank width (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 24 sizes in SVACR/L-S
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SVACL 1616 K11 | L | 125 | 20 | 16 |
| SVACL 1212 K11 | L | 125 | 16 | 12 |
| SVACL 0808 X11-S | L | 115 | 8 | 8 |
| SVACL 2020 K11 | L | 125 | 25 | 20 |
| SVACR 2020 K11 | R | 125 | 25 | 20 |
| SVACR 0808 X11-S | R | 115 | 8 | 8 |
| SVACL 1010 K11-S | L | 125 | 10 | 10 |
| SVACR 1010 K11-S | R | 125 | 10 | 10 |
| SVACL 1212 G11-S | L | 90 | 12 | 12 |
| SVACR 1212 G11-S | R | 90 | 12 | 12 |
| SVACR 1212 K11 | R | 125 | 12 | 12 |
| SVACL 1212 K11-S | L | 125 | 12 | 12 |
| SVACR 1212 K11-S | R | 125 | 12 | 12 |
| SVACL 1616 F11-S | L | 75 | 16 | 16 |
| SVACR 1616 F11-S | R | 75 | 16 | 16 |
| SVACR 1616 K11 | R | 125 | 16 | 16 |
| SVACL 1616 K11-S | L | 125 | 16 | 16 |
| SVACR 1616 K11-S | R | 125 | 16 | 16 |
| SVACL 2020 K11-S | L | 125 | 20 | 20 |
| SVACR 2020 K11-S | R | 125 | 20 | 20 |
| SVACL 1212 K16-S | L | 125 | 12 | 12 |
| SVACR 1212 K16-S | R | 125 | 12 | 12 |
| SVACL 1616 K16-S | L | 125 | 16 | 16 |
| SVACR 1616 K16-S | R | 125 | 16 | 16 |
