Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SVJCR 1212 K11-SHC
SVJCR/L-SHC series · see all 4 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).

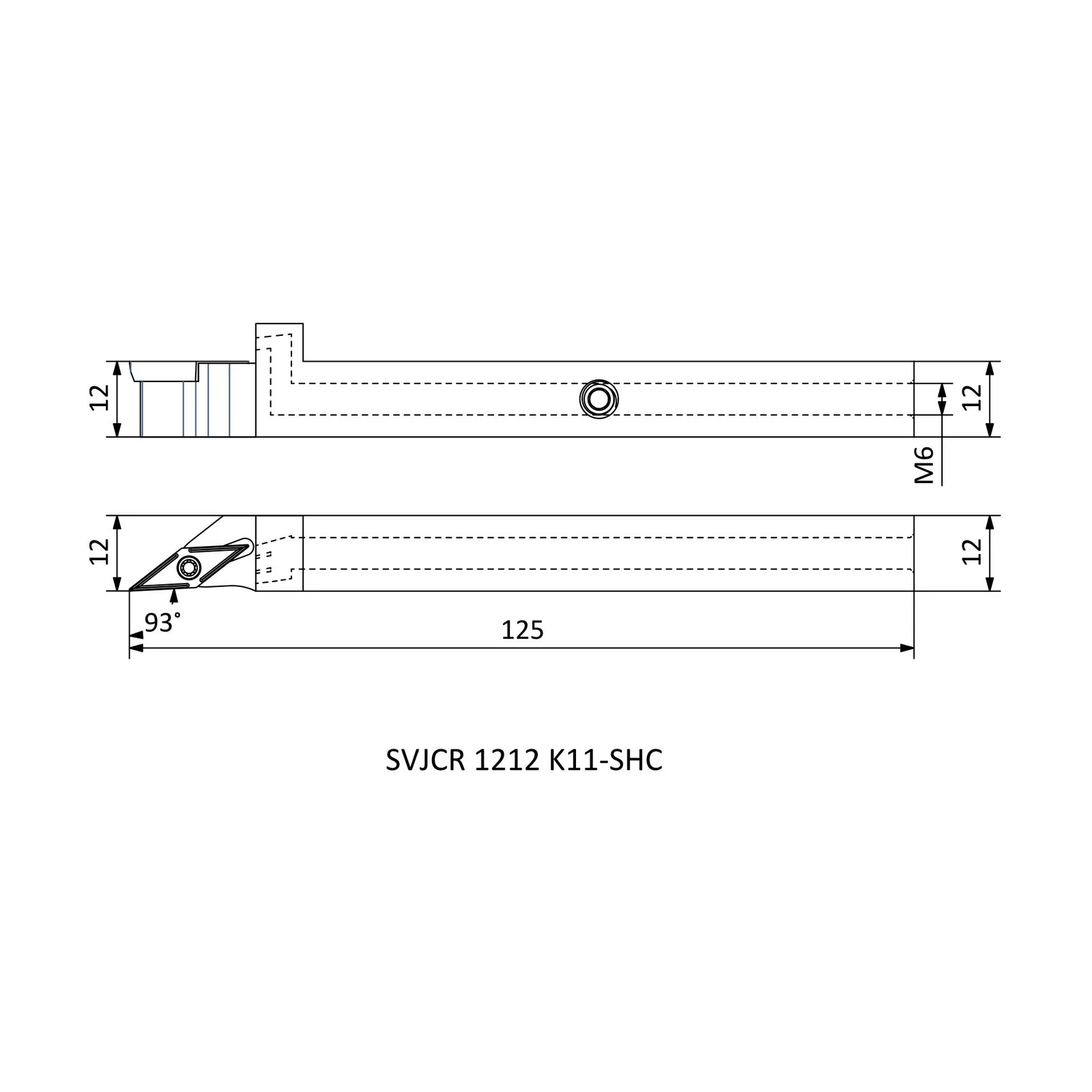

Specifications — SVJCR 1212 K11-SHC
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in SVJCR/L-SHC
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SVJCL 1212 K11-SHC | L | 125 | 12 | 12 |
| SVJCR 1212 K11-SHC | R | 125 | 12 | 12 |
| SVJCL 1616 K11-SHC | L | 125 | 16 | 16 |
| SVJCR 1616 K11-SHC | R | 125 | 16 | 16 |
