Tool Holders / S-Type Engine Overhaul Cartridge
S10D SCMCN 06
SCMCN series · see all 9 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

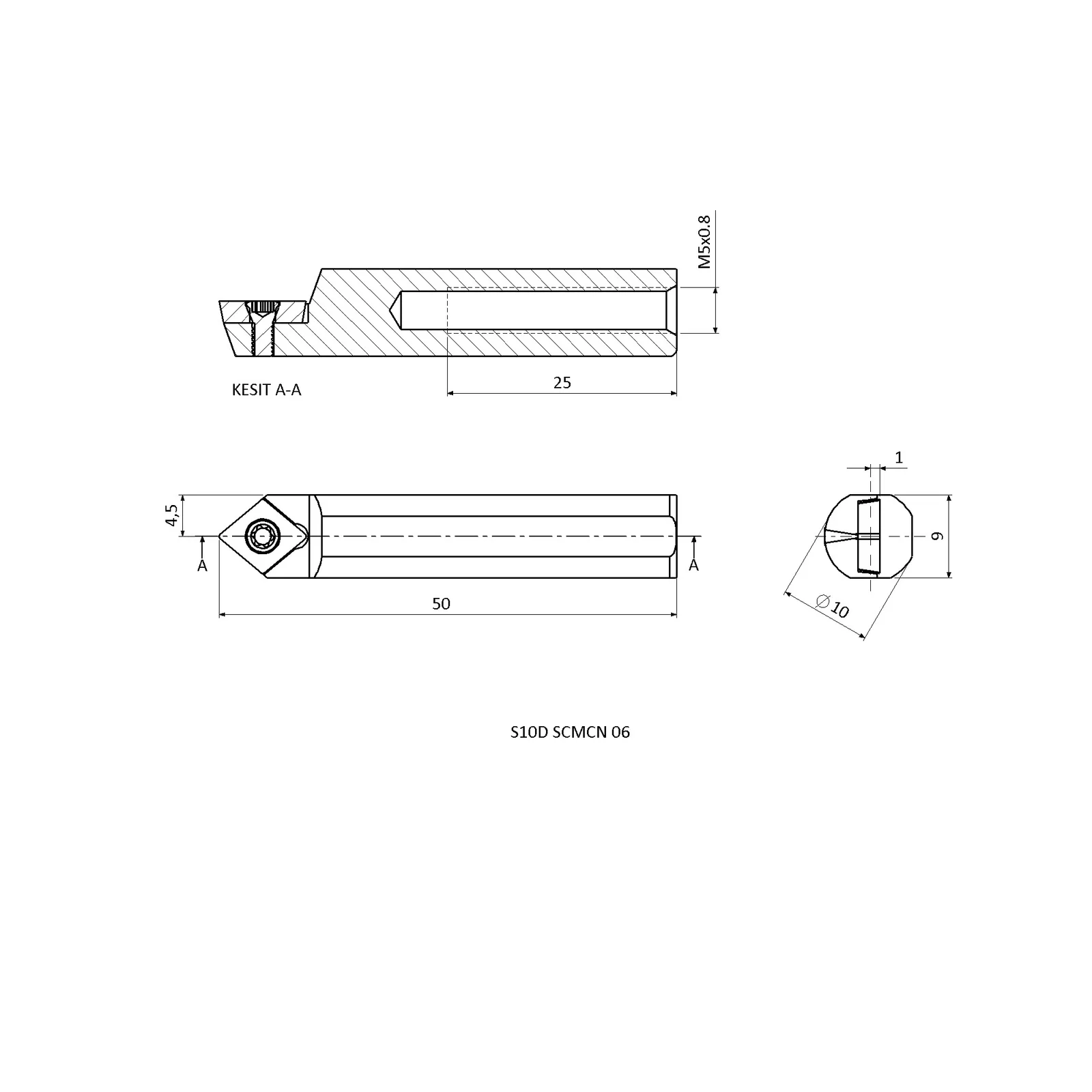

Specifications — S10D SCMCN 06
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| DCON | Connection diameter (mm) | 10 |
| LF | Functional length (mm) | 60 |
| WF | Functional width (mm) | 5 |
| H | Shank height (mm) | 9 |
| THL | Thread length (mm) | 25 |
| TD | TD | M5X0.8 |
| HF | Functional height (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in SCMCN
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S08A SCMCN 06 | N | 8 | 32 | 4 |
| S10X SCMCN 06 | N | 10 | 25 | 5 |
| S10A SCMCN 06 | N | 10 | 32 | 5 |
| S10B SCMCN 06 | N | 10 | 40 | 5 |
| S10C SCMCN 06 | N | 10 | 50 | 5 |
| S10D SCMCN 06 | N | 10 | 60 | 5 |
| S12D SCMCN 06 | N | 12 | 60 | 6 |
| S16C SCMCN 09 | N | 16 | 50 | 8 |
| S16D SCMCN 09 | N | 16 | 60 | 8 |
