Tool Holders / S-Type Engine Overhaul Cartridge
STXCR 2020 B16
STXCR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

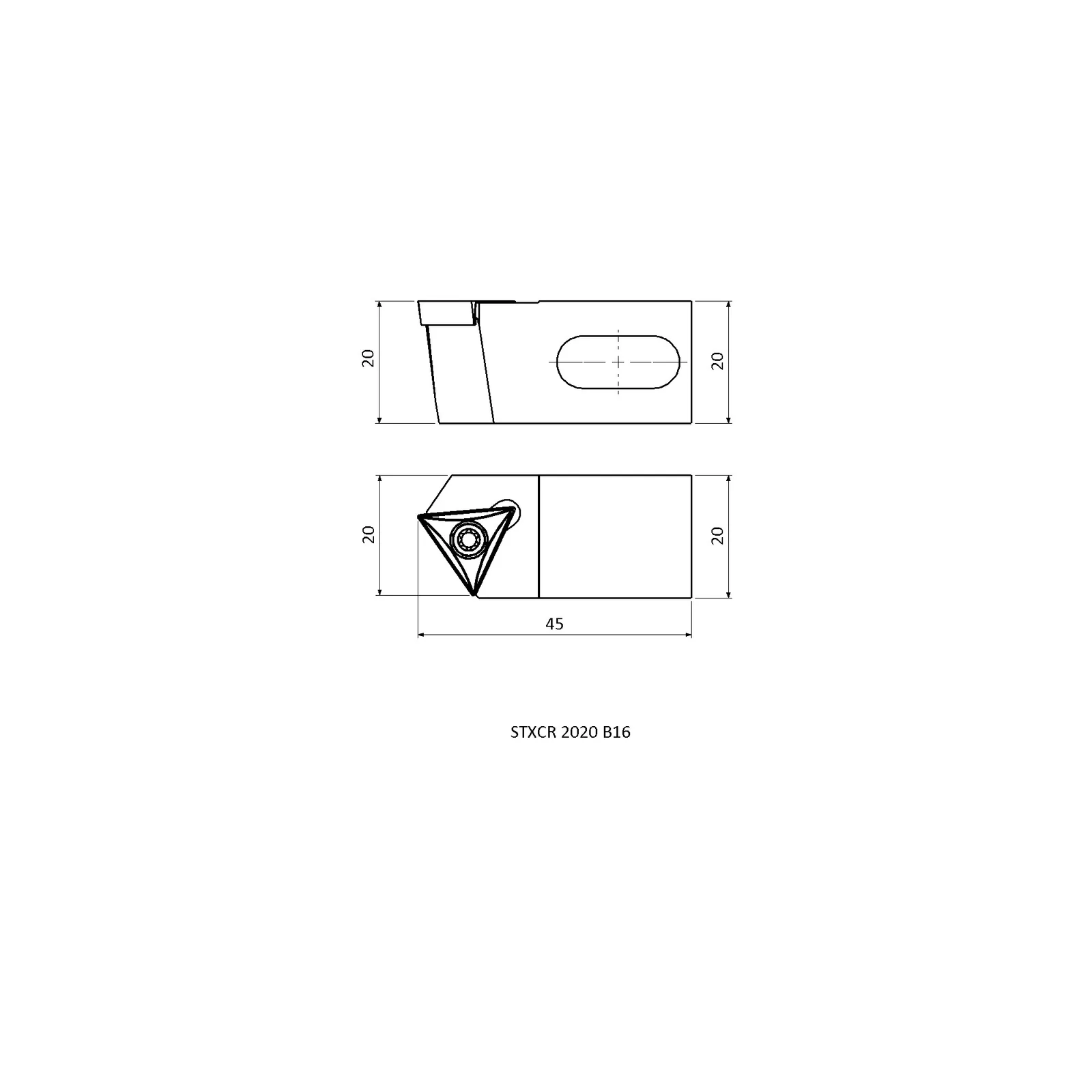

Specifications — STXCR 2020 B16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 45 |
| WF | Functional width (mm) | 20 |
| H | Shank height (mm) | 20 |
| HF | Functional height (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in STXCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| STXCL 2020 B16 | L | 20 | 45 | 20 |
| STXCR 2020 B16 | R | 20 | 45 | 20 |
| STXCL 2020 E16 | L | 20 | 70 | 20 |
| STXCR 2020 E16 | R | 20 | 70 | 20 |
| STXCL 2020 B16-SA | L | 20 | 45 | 20 |
| STXCR 2020 B16-SA | R | 20 | 45 | 20 |
| STXCL 2020 E16-SA | L | 20 | 70 | 20 |
| STXCR 2020 E16-SA | R | 20 | 70 | 20 |
| STXCL 2020 B16-PL | L | 20 | 45 | 20 |
| STXCL 2020 E16-PL | L | 20 | 70 | 20 |
| STXCR 2020 E16-PL | R | 20 | 70 | 20 |
| STXCR 2020 B16-PL | R | 20 | 45 | 20 |
| STXCL 2020 H16-PL | L | 20 | 100 | 20 |
| STXCR 2020 H16-PL | R | 20 | 100 | 20 |
