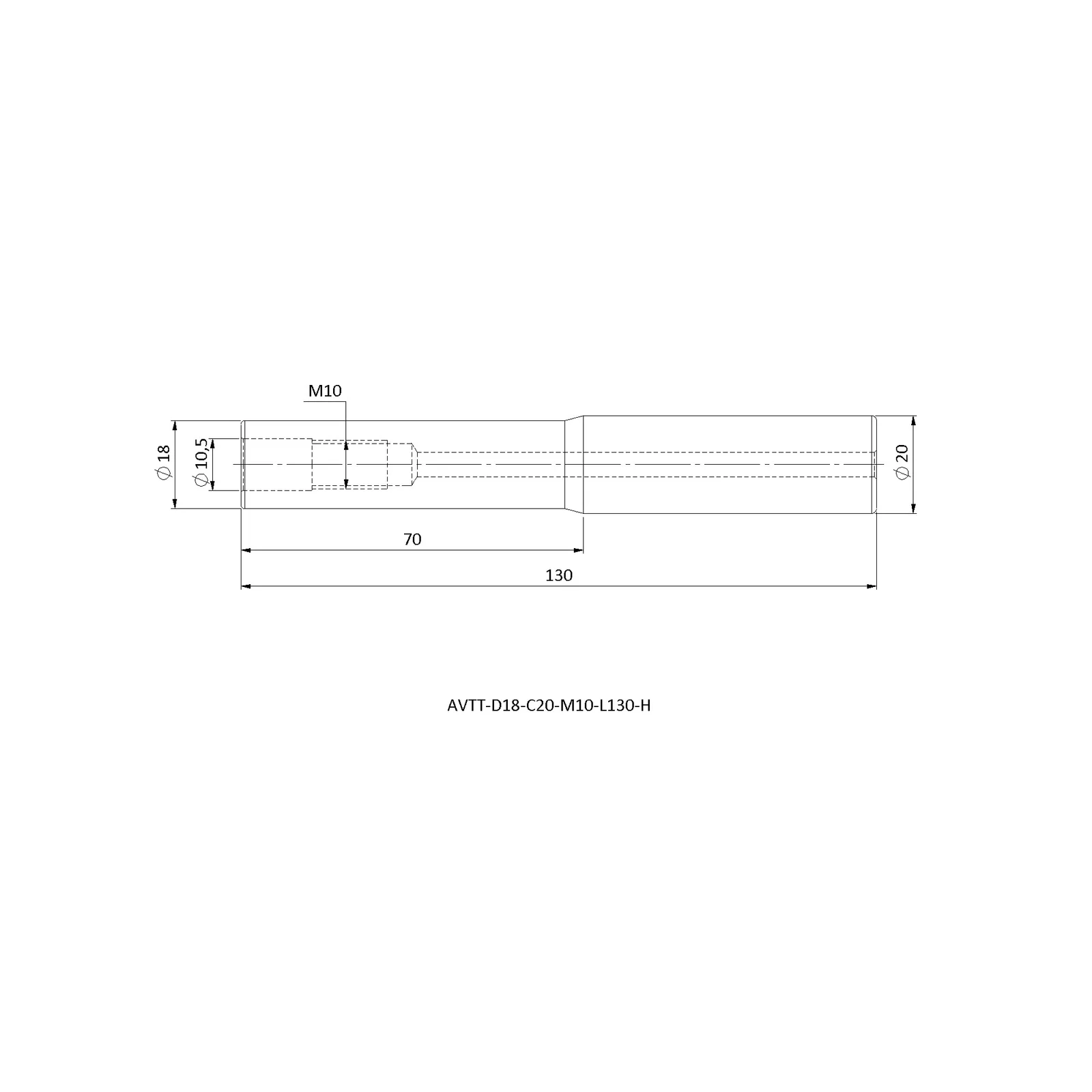

Specifications — AVTT-D18-C20-M10-L130-H
| OAL | Overall length (mm) | 130 |
|---|---|---|
| BD | Bore diameter (mm) | 18 |
| DCONMS | Connection diameter, machine side (mm) | 20 |
| LH | Head length (mm) | 70 |
| DCONWS | Connection diameter, workpiece side (mm) | 10.5 |
| TDZ | Thread depth (mm) | M10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AVTT
| Product code | Overall length (mm) | Bore diameter (mm) | Connection diameter, machine side (mm) | Head length (mm) |
|---|---|---|---|---|
| AVTT-D13-C16-M08-L100-H | 100 | 13 | 16 | 40 |
| AVTT-D15-C16-M08-L130-H | 130 | 15 | 16 | 70 |
| AVTT-D18-C20-M10-L130-H | 130 | 18 | 20 | 70 |
| AVTT-D18-C20-M10-L160-H | 160 | 18 | 20 | 80 |
| AVTT-D23-C25-M12-L150-H | 150 | 23 | 25 | 70 |
| AVTT-D23-C25-M12-L200-H | 200 | 23 | 25 | 100 |
| AVTT-D23-C25-M12-L250-H | 250 | 23 | 25 | 150 |
| AVTT-D30-C32-M16-L150-H | 150 | 30 | 32 | 70 |
| AVTT-D30-C32-M16-L200-H | 200 | 30 | 32 | 100 |
| AVTT-D30-C32-M16-L250-H | 250 | 30 | 32 | 150 |
| AVTT-D30-C32-M16-L300-H | 300 | 30 | 32 | 200 |
