SCLCR-12X43.3-06-H
SCLCR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

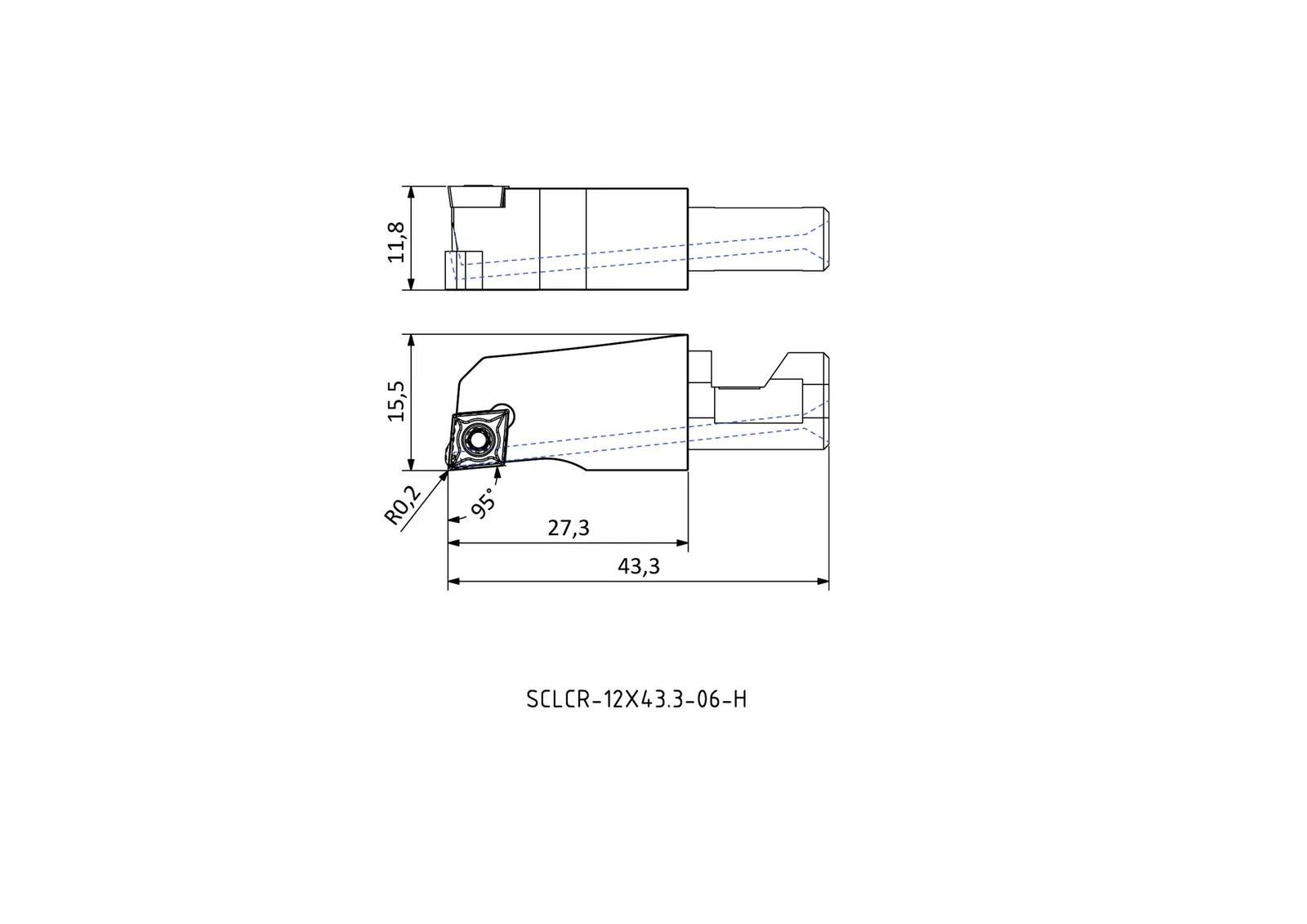

Specifications — SCLCR-12X43.3-06-H
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| OAL | Overall length (mm) | 43.3 |
| LF | Functional length (mm) | 27.3 |
| WF | Functional width (mm) | 8 |
| RE | Corner radius (mm) | 0.2 |
| HF | Functional height (mm) | 11.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in SCLCR/L
| Product code | Cutting direction (hand) | Overall length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| SCLCL-12X43.3-06-H | L | 43.3 | 27.3 | 8 |
| SCLCR-12X43.3-06-H | R | 43.3 | 27.3 | 8 |
| SCLCL-16X43.3-06-H | L | 43.3 | 27.3 | 8 |
| SCLCR-16X43.3-06-H | R | 43.3 | 27.3 | 8 |
| SCLCL-12X43.3-09-H | L | 43.3 | 27.3 | 8 |
| SCLCR-12X43.3-09-H | R | 43.3 | 27.3 | 8 |
| SCLCL-16X43.3-09-H | L | 43.3 | 27.3 | 8 |
| SCLCR-16X43.3-09-H | R | 43.3 | 27.3 | 8 |
