Tool Holders / Sec Tools
TEL-16x43.3-16
SER/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation 16 (as listed in the catalogue data).

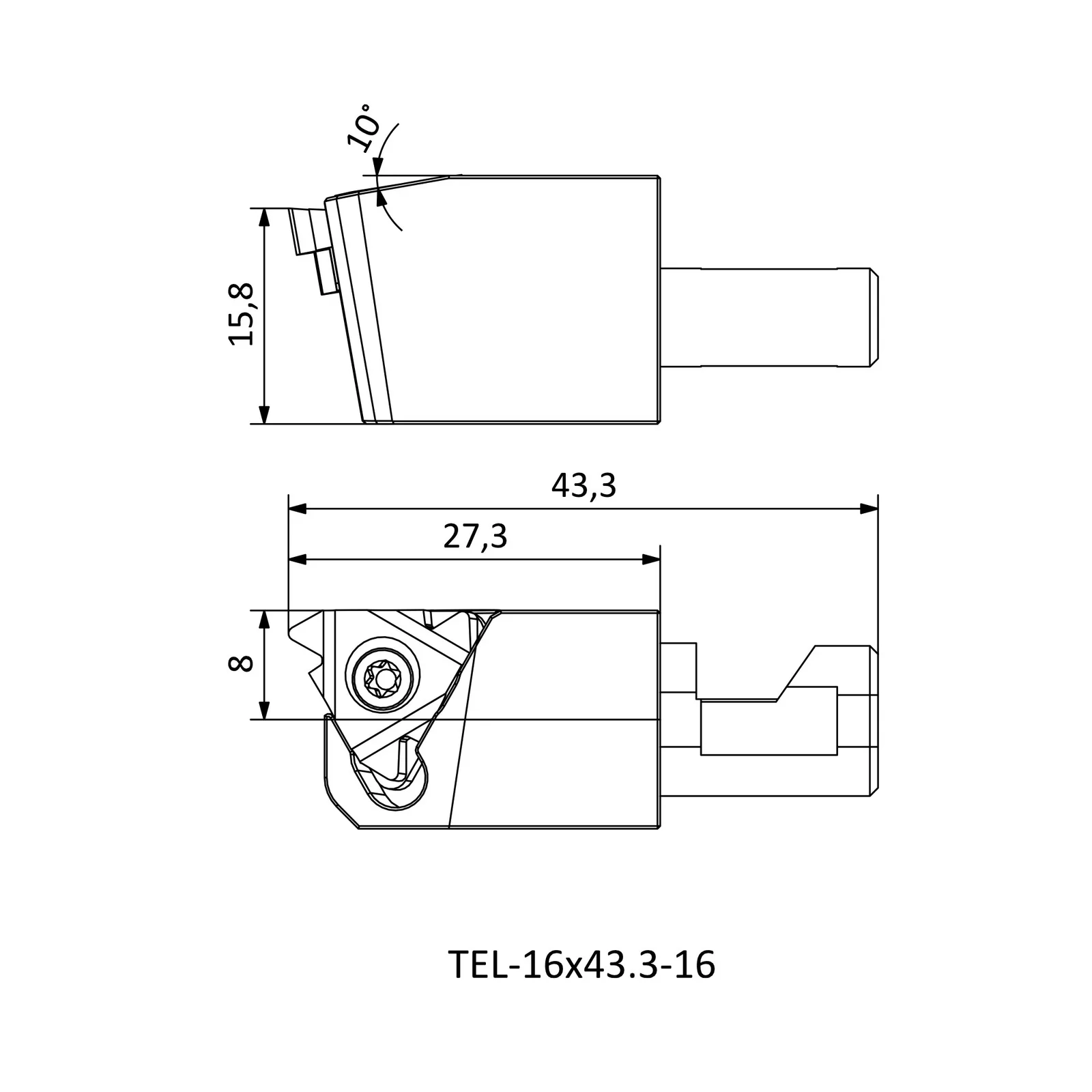

Specifications — TEL-16x43.3-16
| Insert Code | Insert designation | 16 EL |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| OAL | Overall length (mm) | 43.3 |
| LF | Functional length (mm) | 27.3 |
| WF | Functional width (mm) | 8 |
| HF | Functional height (mm) | 15.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SER/L
| Product code | Cutting direction (hand) | Overall length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| SEL-12x43.3-11 | L | 43.3 | 27.3 | 8 |
| SER-12x43.3-11 | R | 43.3 | 27.3 | 8 |
| SEL-16x43.3-11 | L | 43.3 | 27.3 | 8 |
| SER-16x43.3-11 | R | 43.3 | 27.3 | 8 |
| TEL-16x43.3-16 | L | 43.3 | 27.3 | 8 |
| TER-16x43.3-16 | R | 43.3 | 27.3 | 8 |
