Tool Holders / Sec Tools
SVJCL-12X43.3-11
SVJCR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation VC.T 110302 (as listed in the catalogue data).

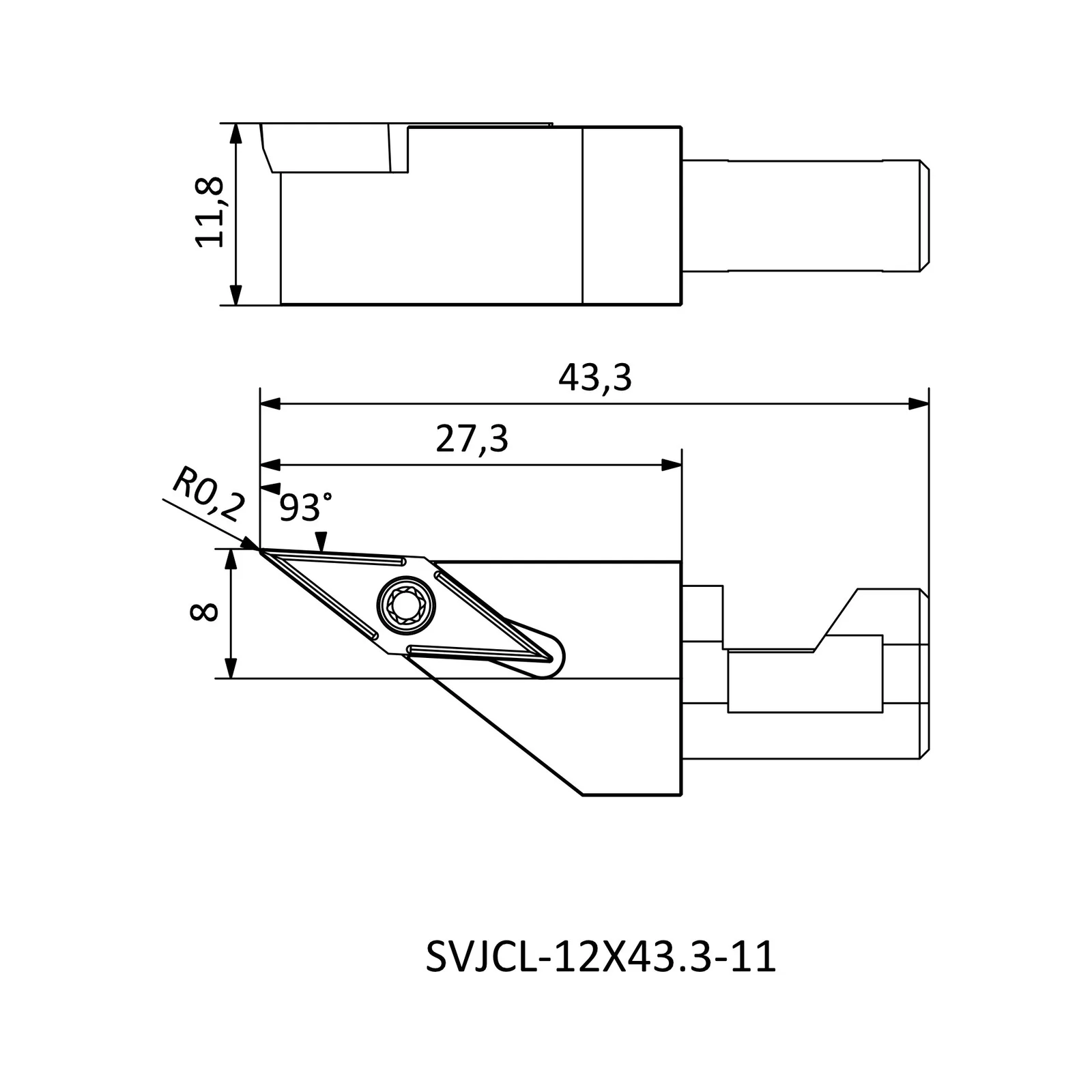

Specifications — SVJCL-12X43.3-11
| Insert Code | Insert designation | VC.T 110302 |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| OAL | Overall length (mm) | 43.3 |
| LF | Functional length (mm) | 27.3 |
| WF | Functional width (mm) | 8 |
| RE | Corner radius (mm) | 0.2 |
| HF | Functional height (mm) | 11.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in SVJCR/L
| Product code | Cutting direction (hand) | Overall length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| SVJCR-16X43.3-11-H | R | 43.3 | 27.3 | 8 |
| SVJCL-16X43.3-11-H | L | 43.3 | 27.3 | 8 |
| SVJCL-12X43.3-11 | L | 43.3 | 27.3 | 8 |
| SVJCR-12X43.3-11 | R | 43.3 | 27.3 | 8 |
| SVJCL-12X43.3-11-H | L | 43.3 | 27.3 | 8 |
| SVJCR-12X43.3-11-H | R | 43.3 | 27.3 | 8 |
| SVJCL-16X43.3-11 | L | 43.3 | 27.3 | 8 |
| SVJCR-16X43.3-11 | R | 43.3 | 27.3 | 8 |
