Tool Holders / T-System Boring Bars
S40U TCLNL 16
TCLNR/L series · see all 22 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).

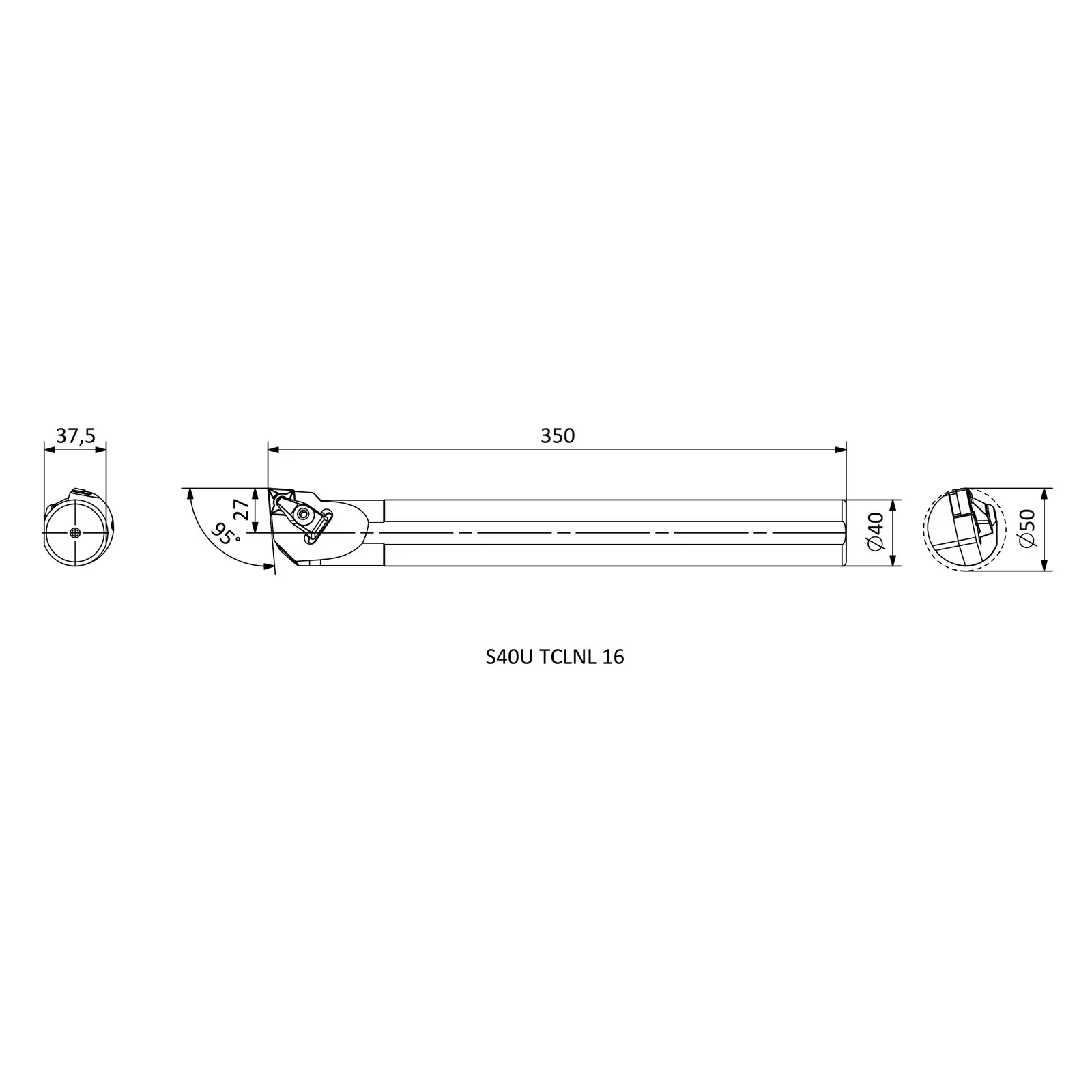

Specifications — S40U TCLNL 16
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in TCLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S TCLNL 09 | L | 25 | 250 | 17 |
| S25S TCLNR 09 | R | 25 | 250 | 17 |
| S25S TCLNL 12 | L | 25 | 250 | 17 |
| S25S TCLNR 12 | R | 25 | 250 | 17 |
| S32T TCLNL 12 | L | 32 | 300 | 22 |
| S32T TCLNR 12 | R | 32 | 300 | 22 |
| S40U TCLNL 12 | L | 40 | 350 | 27 |
| S40U TCLNR 12 | R | 40 | 350 | 27 |
| S50V TCLNL 12 | L | 50 | 400 | 35 |
| S50V TCLNR 12 | R | 50 | 400 | 35 |
| S32T TCLNL 16 | L | 32 | 300 | 22 |
| S32T TCLNR 16 | R | 32 | 300 | 22 |
| S40U TCLNL 16 | L | 40 | 350 | 27 |
| S40U TCLNR 16 | R | 40 | 350 | 27 |
| S50V TCLNL 16 | L | 50 | 400 | 35 |
| S50V TCLNR 16 | R | 50 | 400 | 35 |
| A25R TCLNL 12 | L | 25 | 200 | 17 |
| A25R TCLNR 12 | R | 25 | 200 | 17 |
| A40T TCLNL 12 | L | 40 | 300 | 27 |
| A40T TCLNR 12 | R | 40 | 300 | 27 |
| A50V TCLNL 12 | L | 50 | 400 | 35 |
| A50V TCLNR 12 | R | 50 | 400 | 35 |
