Tool Holders / T-System Boring Bars
S50V TD-NL 15
TD-NR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

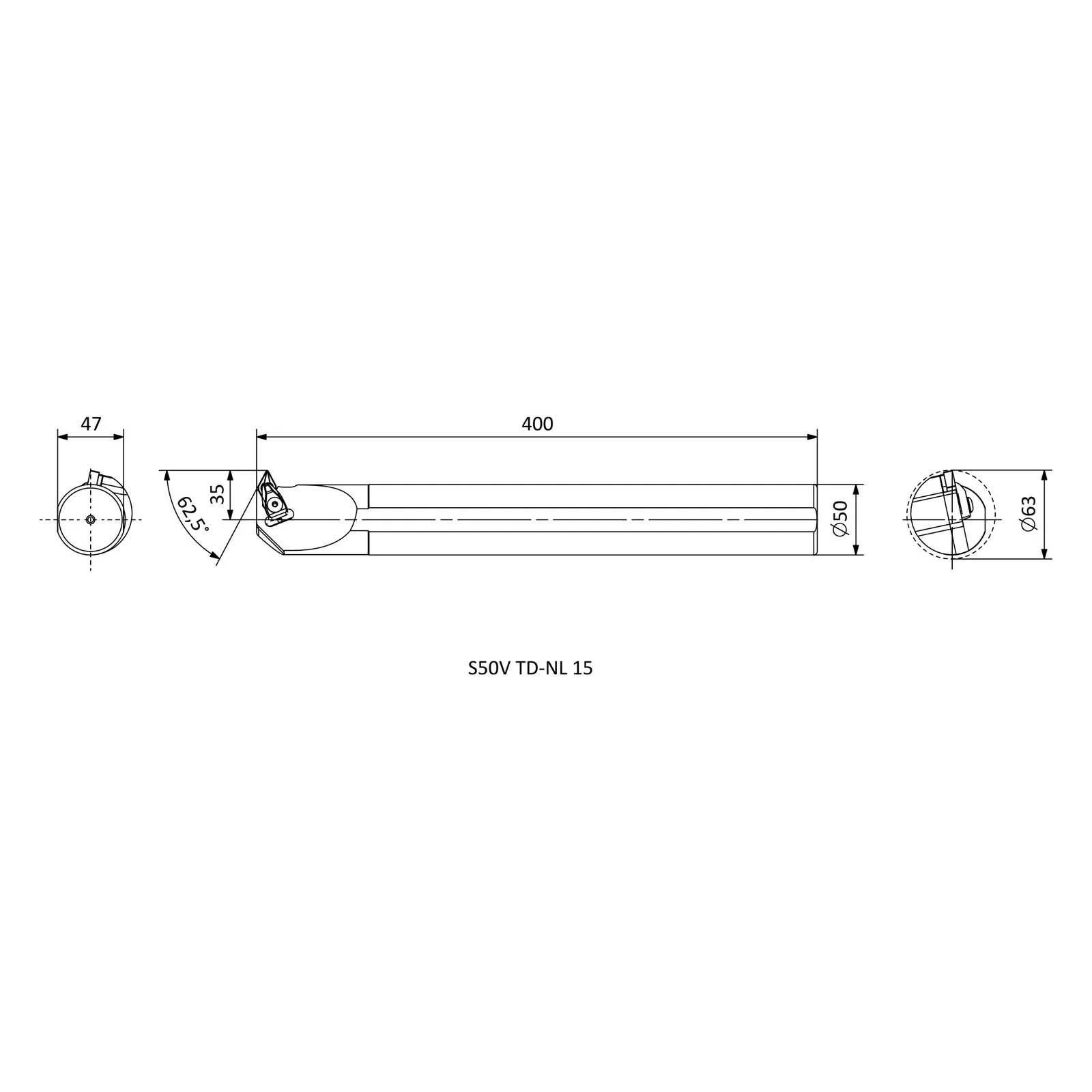

Specifications — S50V TD-NL 15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LPR | Protruding / projection length (mm) | 400 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in TD-NR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S32T TD-NL 15 | L | 32 | 300 | 26 |
| S32T TD-NR 15 | R | 32 | 300 | 26 |
| S40U TD-NL 15 | L | 40 | 350 | 29 |
| S40U TD-NR 15 | R | 40 | 350 | 29 |
| S50V TD-NL 15 | L | 50 | 400 | 35 |
| S50V TD-NR 15 | R | 50 | 400 | 35 |
