Tool Holders / T-System Boring Bars
S50V TDQNL 15
TDQNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

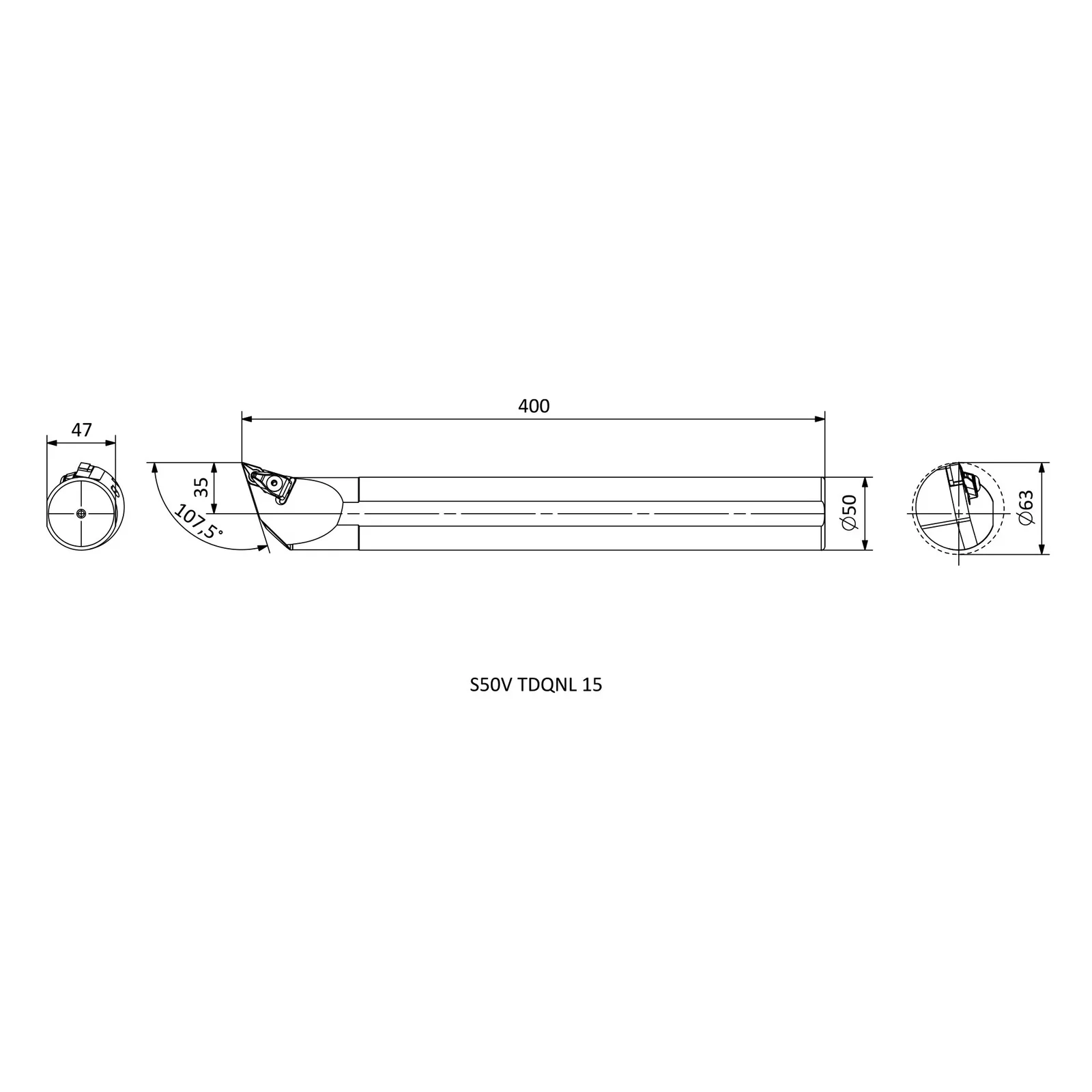

Specifications — S50V TDQNL 15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 400 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in TDQNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S TDQNL 11 | L | 25 | 250 | 17 |
| S25S TDQNR 11 | R | 25 | 250 | 17 |
| S32T TDQNL 11 | L | 32 | 300 | 22 |
| S32T TDQNR 11 | R | 32 | 300 | 22 |
| S25S TDQNL 15 | L | 25 | 250 | 17 |
| S25S TDQNR 15 | R | 25 | 250 | 17 |
| S32T TDQNL 15 | L | 32 | 300 | 22 |
| S32T TDQNR 15 | R | 32 | 300 | 22 |
| S40U TDQNL 15 | L | 40 | 350 | 27 |
| S40U TDQNR 15 | R | 40 | 350 | 27 |
| S50V TDQNL 15 | L | 50 | 400 | 35 |
| S50V TDQNR 15 | R | 50 | 400 | 35 |
