Tool Holders / T-System Boring Bars
S25S TSKNR 12
TSKNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).

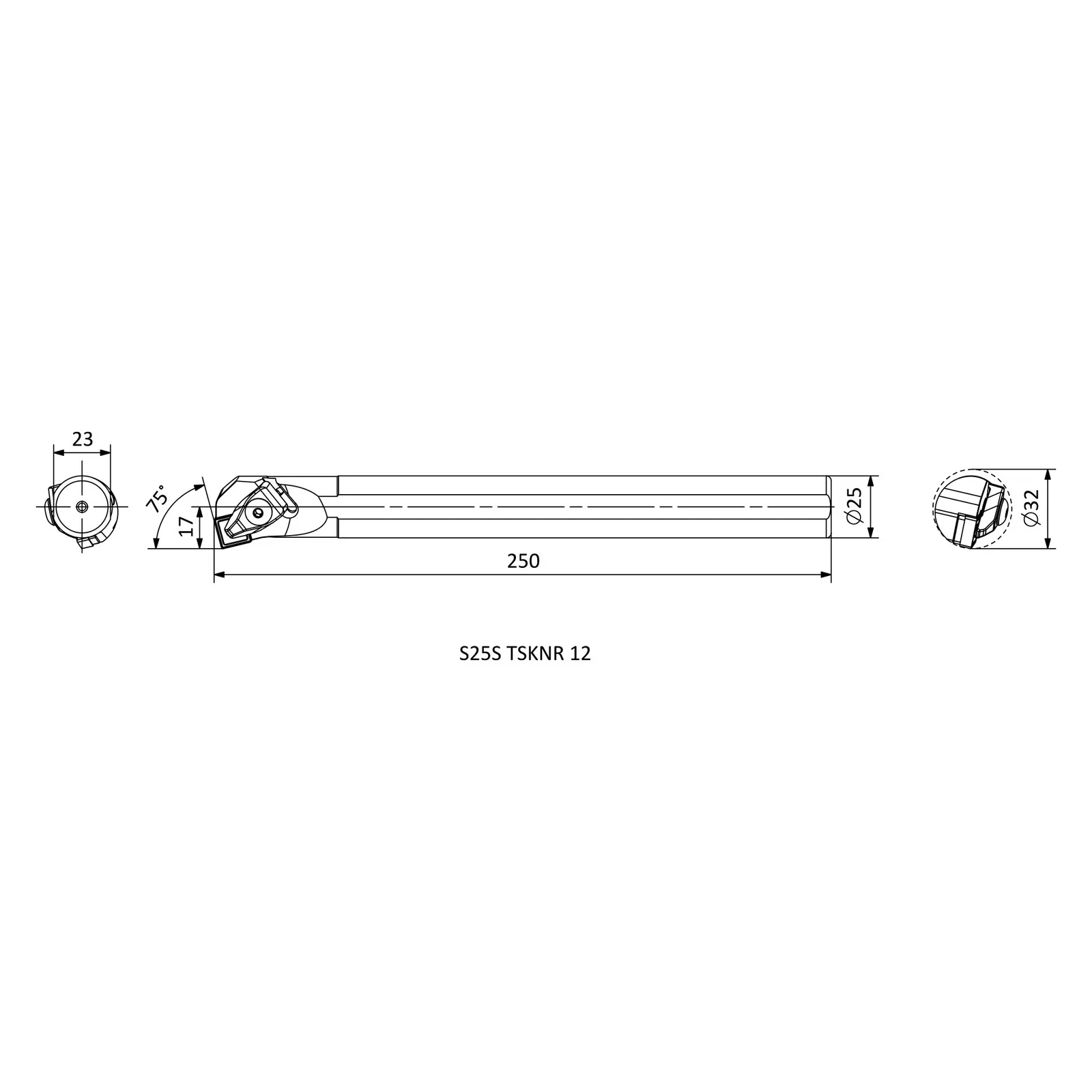

Specifications — S25S TSKNR 12
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 17 |
| H | Shank height (mm) | 23 |
| D min | Minimum working diameter (mm) | ≥32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in TSKNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S TSKNL 12 | L | 25 | 250 | 17 |
| S25S TSKNR 12 | R | 25 | 250 | 17 |
| S32T TSKNL 12 | L | 32 | 300 | 22 |
| S32T TSKNR 12 | R | 32 | 300 | 22 |
| S40U TSKNL 12 | L | 40 | 350 | 27 |
| S40U TSKNR 12 | R | 40 | 350 | 27 |
