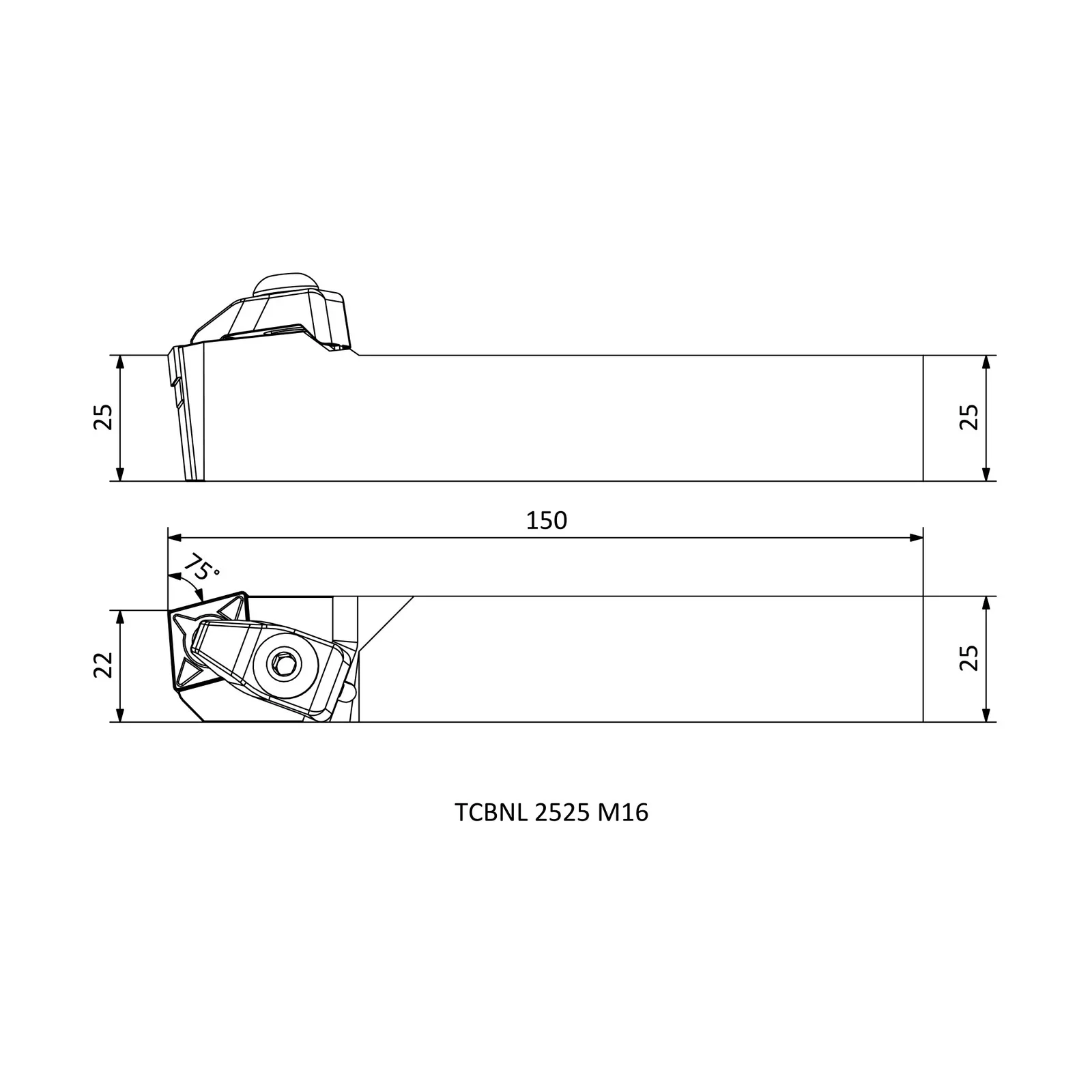

Drag to rotate — real 3D model from the CAD file
Tool Holders / T-System External Turning Toolholders
TCBNL 2525 M16
TCBNR/L series · see all 2 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).
Specifications — TCBNL 2525 M16
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 22 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in TCBNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TCBNR 2525 M16 | R | 150 | 22 | 25 |
| TCBNL 2525 M16 | L | 150 | 22 | 25 |
