Tool Holders / T-System External Turning Toolholders
TCBNL 3232 P12-H
TCBNR/L-H series · see all 6 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).

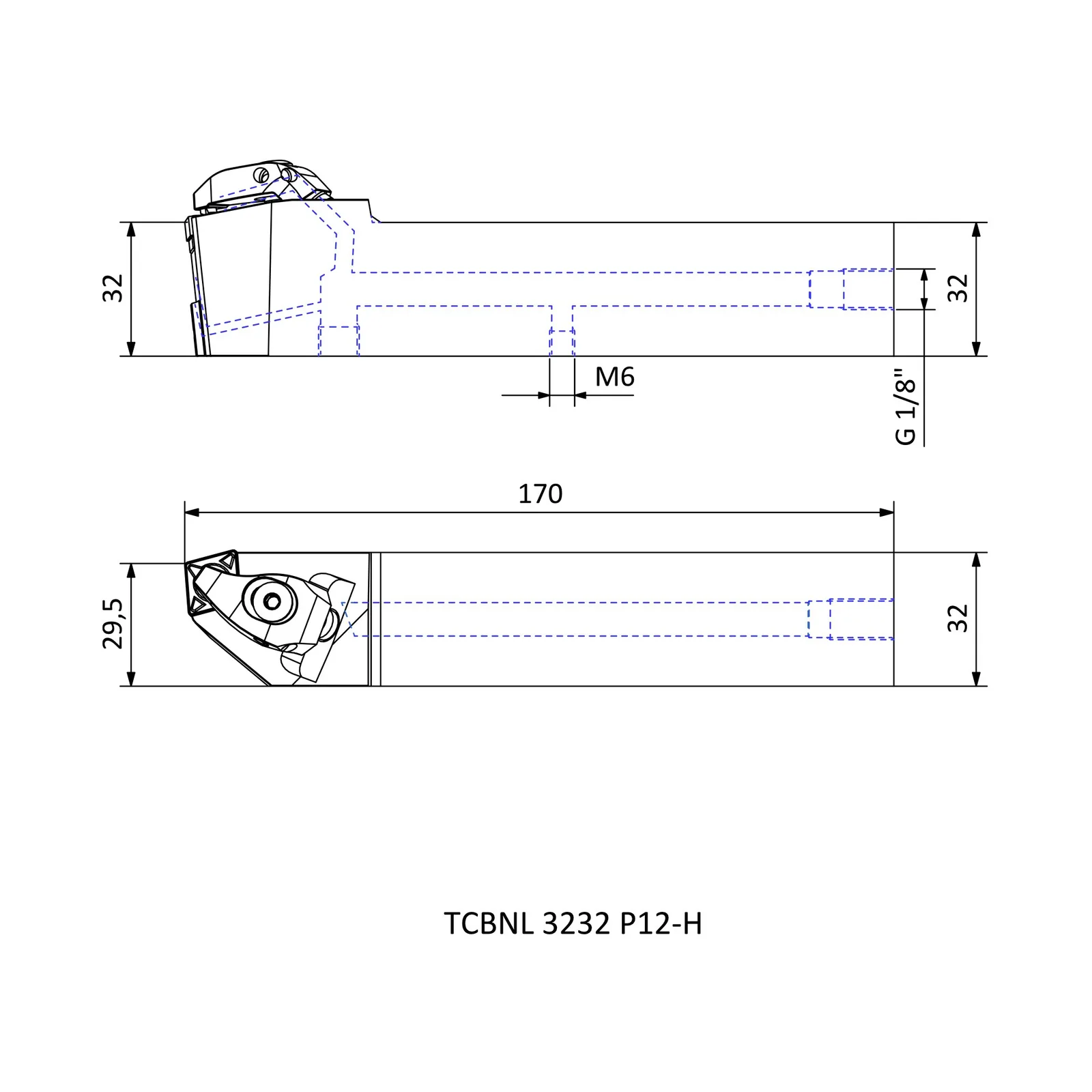

Specifications — TCBNL 3232 P12-H
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in TCBNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TCBNL 2020 K12-H | L | 125 | 16 | 20 |
| TCBNR 2020 K12-H | R | 125 | 16 | 20 |
| TCBNL 2525 M12-H | L | 150 | 20 | 25 |
| TCBNR 2525 M12-H | R | 150 | 20 | 25 |
| TCBNL 3232 P12-H | L | 170 | 25 | 32 |
| TCBNR 3232 P12-H | R | 170 | 25 | 32 |
