Tool Holders / T-System External Turning Toolholders
TCKNR 2525 M16
TCKNR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).

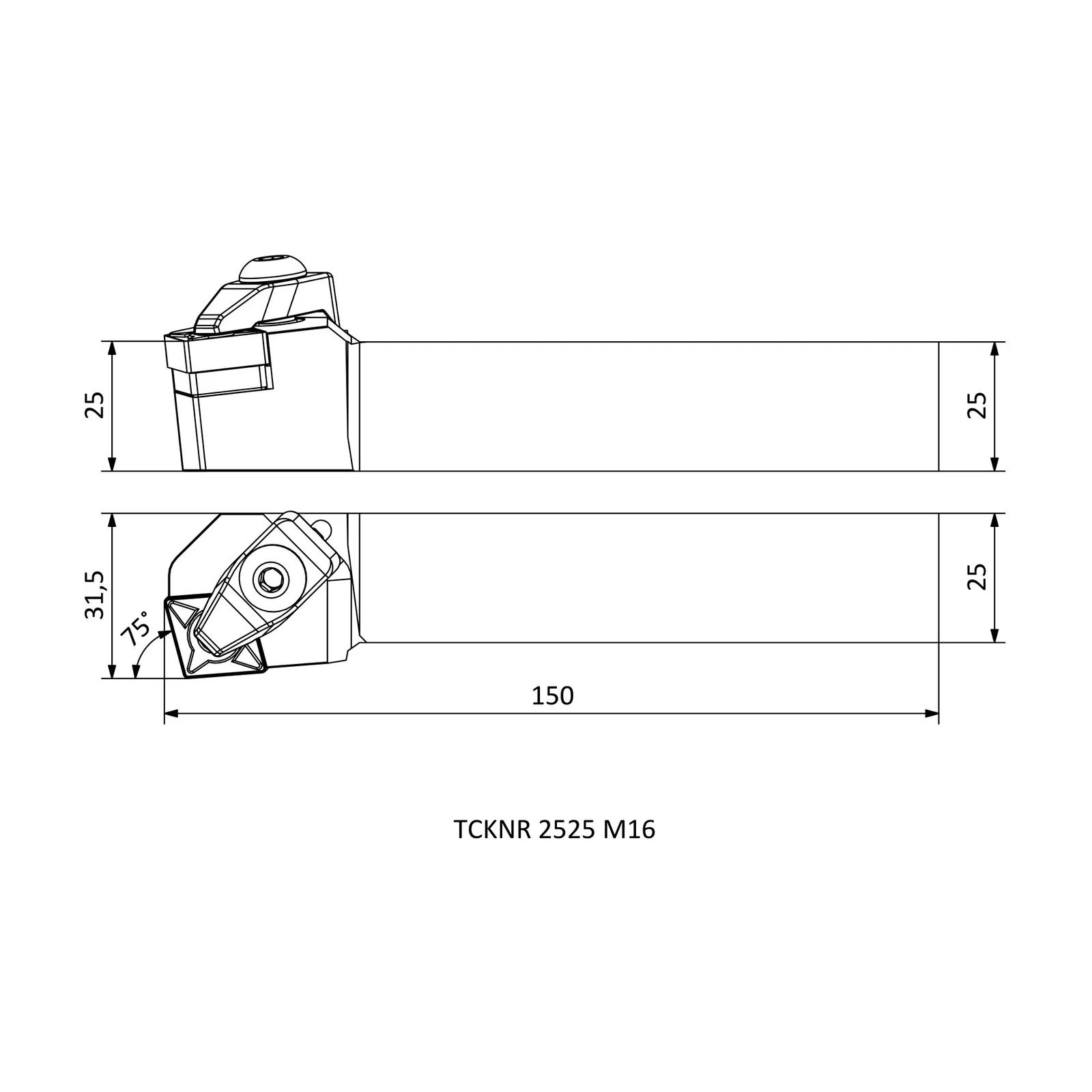

Specifications — TCKNR 2525 M16
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in TCKNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TCKNL 2020 K12 | L | 125 | 25 | 20 |
| TCKNR 2020 K12 | R | 125 | 25 | 20 |
| TCKNL 2525 M12 | L | 150 | 32 | 25 |
| TCKNR 2525 M12 | R | 150 | 32 | 25 |
| TCKNL 3232 P12 | L | 170 | 40 | 32 |
| TCKNR 3232 P12 | R | 170 | 40 | 32 |
| TCKNL 2525 M16 | L | 150 | 32 | 25 |
| TCKNR 2525 M16 | R | 150 | 32 | 25 |
| TCKNL 3232 P16 | L | 170 | 40 | 32 |
| TCKNR 3232 P16 | R | 170 | 40 | 32 |
