TCLNR/L

14 sizes available · 7 specification fields · standard: ISO

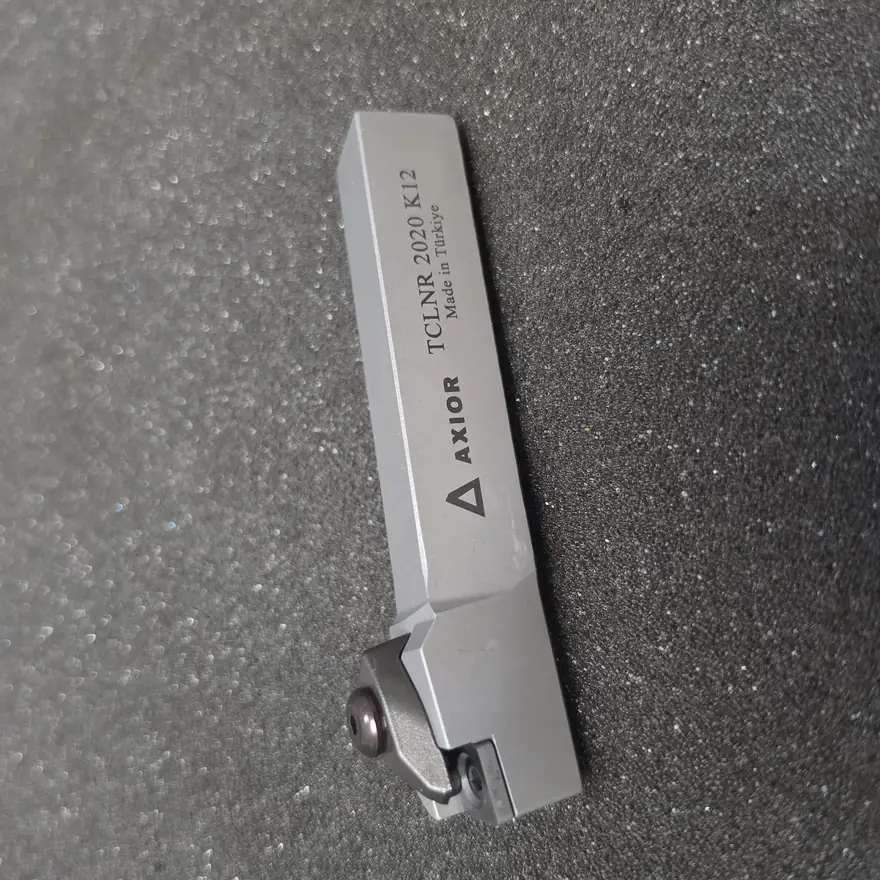

TCLNR/L is an external turning tool holder that takes negative 80° rhombic (C-type) inserts. It is listed here in 14 sizes, 20–50 × 20–50 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

CNM. 1204..
CNM. 1606..

Choose a size ↓ Ask about TCLNR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
TCLNL 2020 K12	CNM. 1204..	L	125	25	20	20
TCLNR 2020 K12	CNM. 1204..	R	125	25	20	20
TCLNL 2525 M12	CNM. 1204..	L	150	32	25	25
TCLNR 2525 M12	CNM. 1204..	R	150	32	25	25
TCLNL 3232 P12	CNM. 1204..	L	170	40	32	32
TCLNR 3232 P12	CNM. 1204..	R	170	40	32	32
TCLNL 4040 S12	CNM. 1204..	L	250	50	40	40
TCLNR 4040 S12	CNM. 1204..	R	250	50	40	40
TCLNL 5050 S12	CNM. 1204..	L	250	63	50	50
TCLNR 5050 S12	CNM. 1204..	R	250	63	50	50
TCLNL 2525 M16	CNM. 1606..	L	150	32	25	25
TCLNR 2525 M16	CNM. 1606..	R	150	32	25	25
TCLNR 3232 P16	CNM. 1606..	R	170	40	32	32
TCLNL 3232 P16	CNM. 1606..	L	170	40	32	32
