Tool Holders / T-System External Turning Toolholders

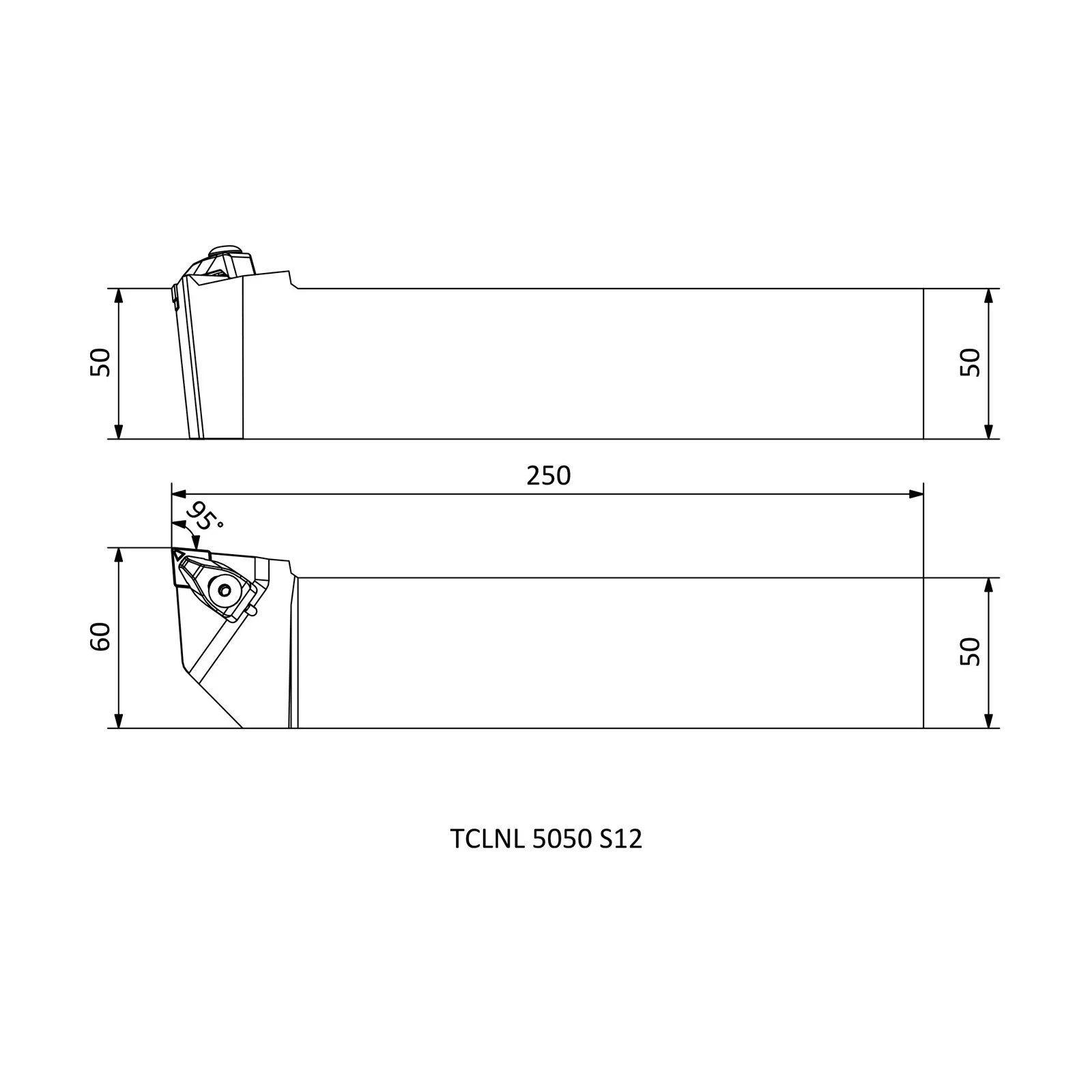

TCLNL 5050 S12
TCLNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).
Specifications — TCLNL 5050 S12
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 63 |
| HF=H | Functional height (mm) | 50 |
| B | Shank width (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in TCLNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TCLNL 2020 K12 | L | 125 | 25 | 20 |
| TCLNR 2020 K12 | R | 125 | 25 | 20 |
| TCLNL 2525 M12 | L | 150 | 32 | 25 |
| TCLNR 2525 M12 | R | 150 | 32 | 25 |
| TCLNL 3232 P12 | L | 170 | 40 | 32 |
| TCLNR 3232 P12 | R | 170 | 40 | 32 |
| TCLNL 4040 S12 | L | 250 | 50 | 40 |
| TCLNR 4040 S12 | R | 250 | 50 | 40 |
| TCLNL 5050 S12 | L | 250 | 63 | 50 |
| TCLNR 5050 S12 | R | 250 | 63 | 50 |
| TCLNL 2525 M16 | L | 150 | 32 | 25 |
| TCLNR 2525 M16 | R | 150 | 32 | 25 |
| TCLNR 3232 P16 | R | 170 | 40 | 32 |
| TCLNL 3232 P16 | L | 170 | 40 | 32 |
