Tool Holders / T-System External Turning Toolholders
TCLNL 2020 K12-H
TCLNR/L-H series · see all 16 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).

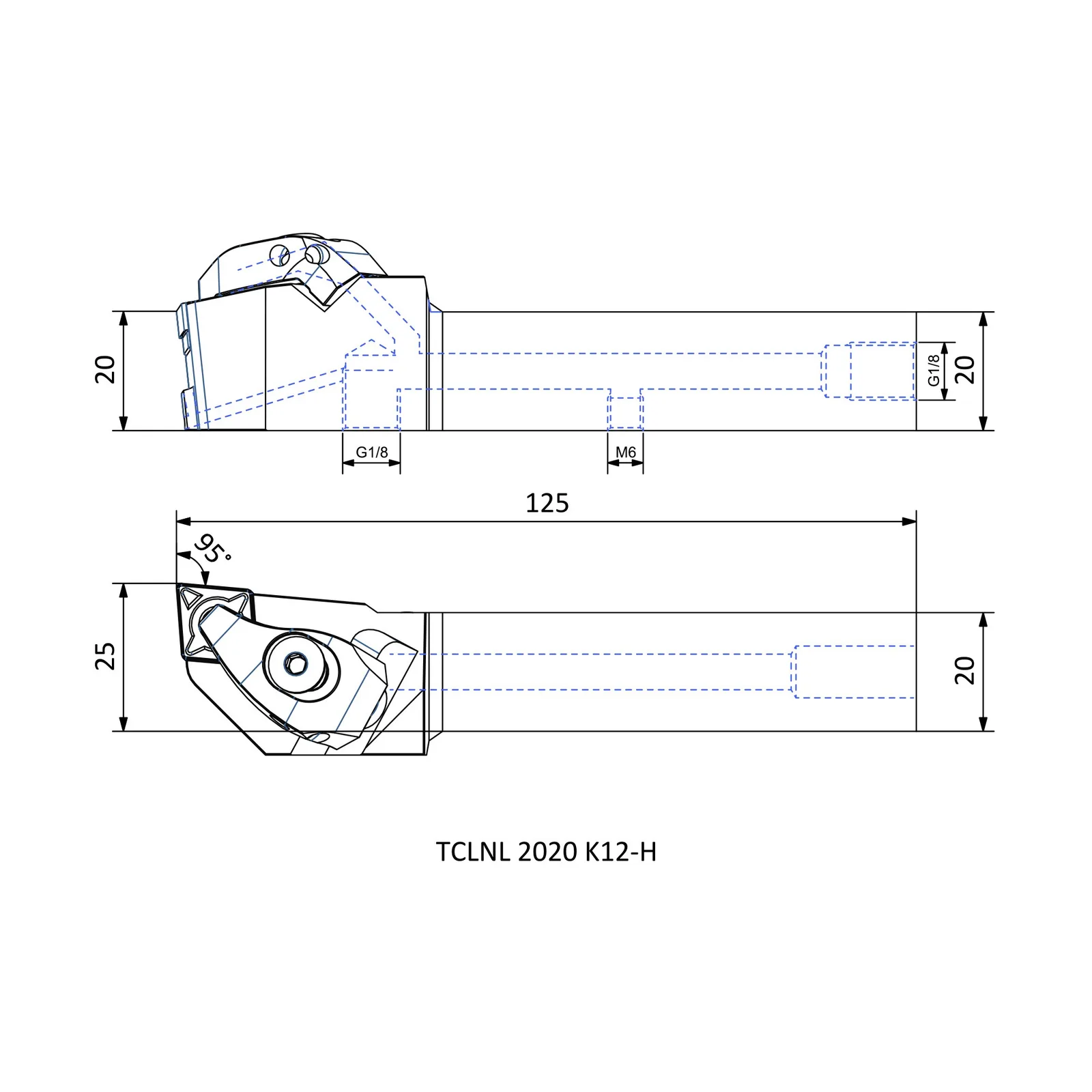

Specifications — TCLNL 2020 K12-H
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
