Tool Holders / T-System External Turning Toolholders

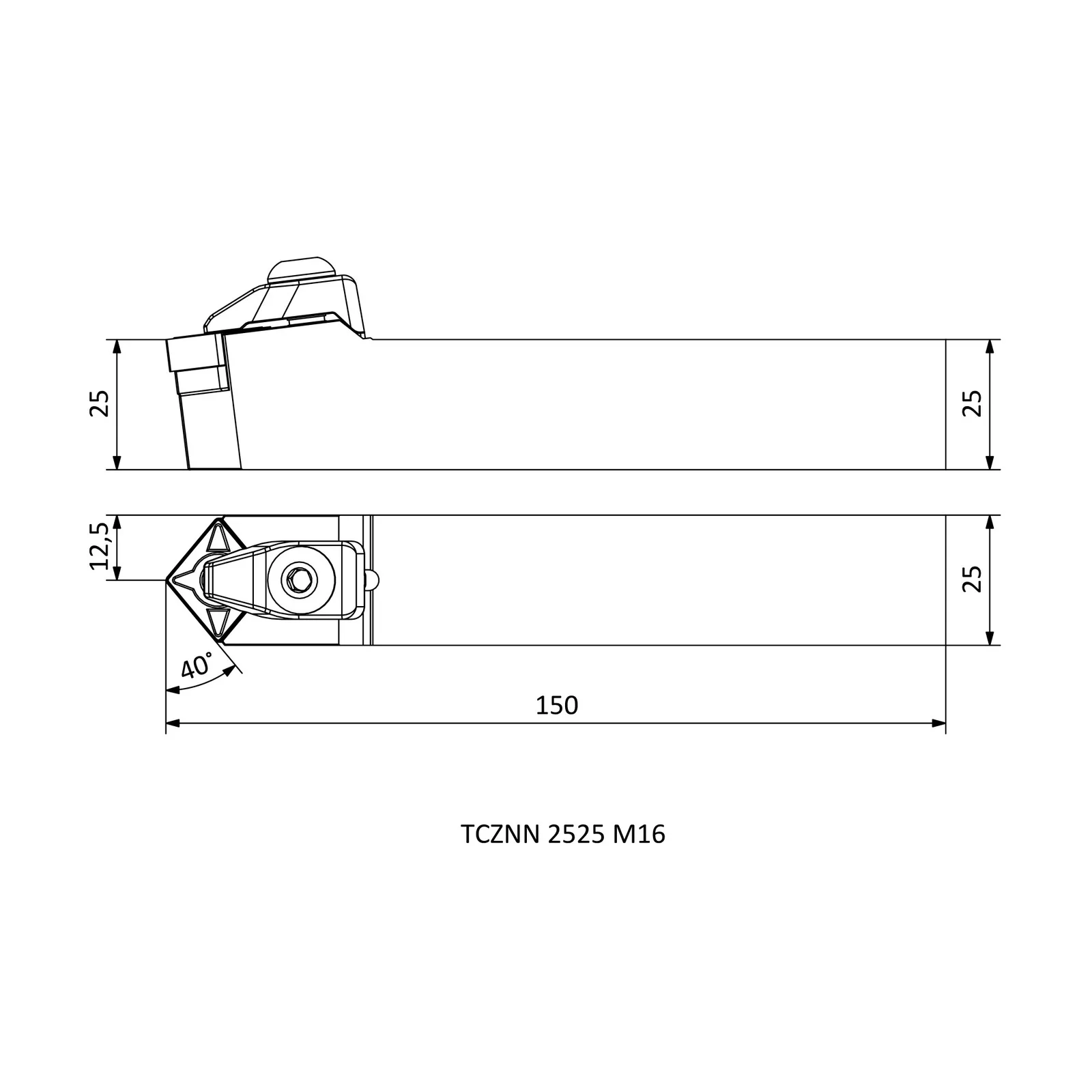

TCZNN 2525 M16
TCZNN series · see all 5 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).
Specifications — TCZNN 2525 M16
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 12.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in TCZNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TCZNN 2020 K12 | R | 125 | 10 | 20 |
| TCZNN 2525 M12 | R | 150 | 12.5 | 25 |
| TCZNN 3232 P12 | R | 170 | 16 | 32 |
| TCZNN 2525 M16 | R | 150 | 12.5 | 25 |
| TCZNN 3232 P16 | R | 170 | 16 | 32 |
