Tool Holders / T-System External Turning Toolholders
TDHNR 3232 P15
TDHNR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

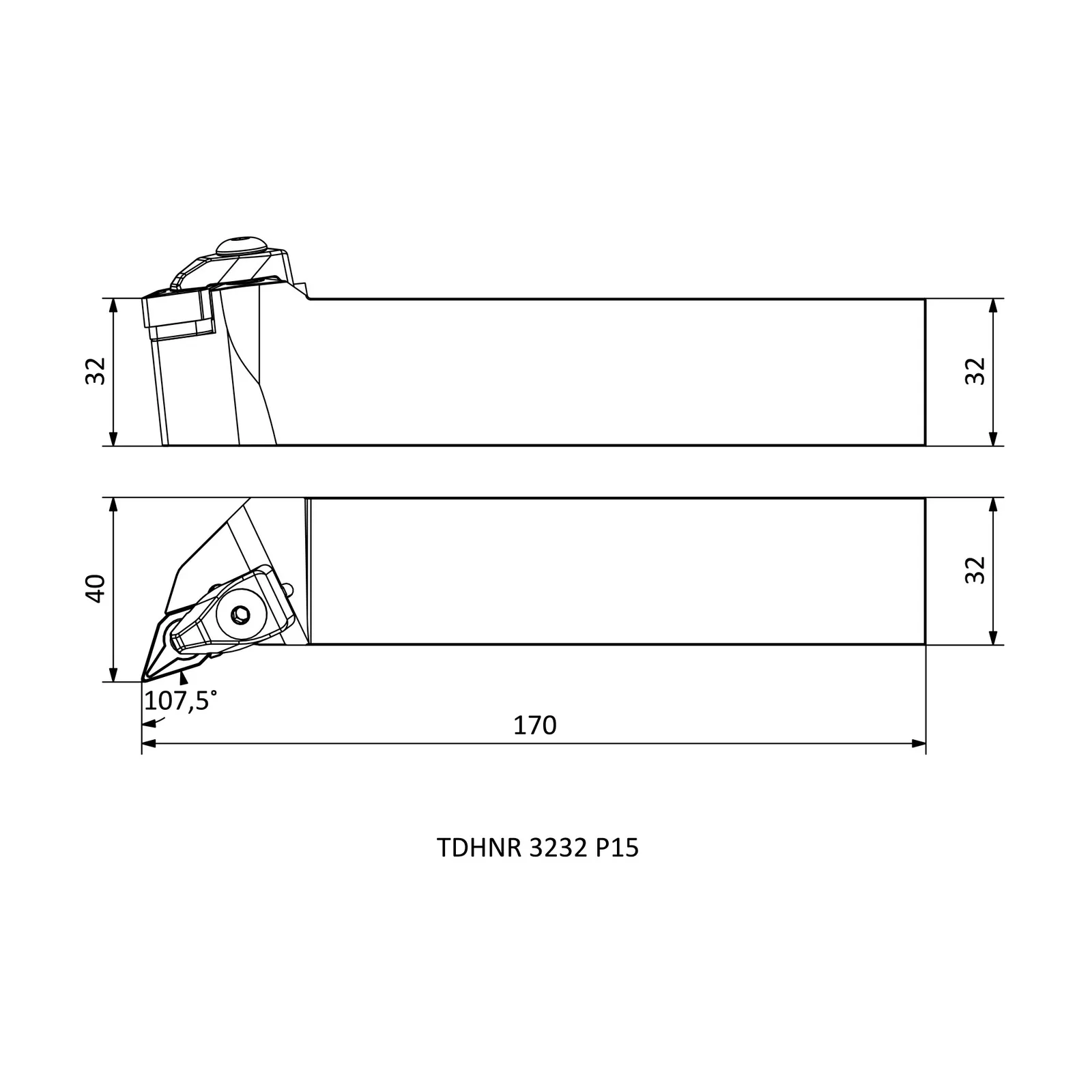

Specifications — TDHNR 3232 P15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in TDHNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TDHNL 2525 M15 | L | 150 | 32 | 25 |
| TDHNR 3232 P15 | R | 170 | 40 | 32 |
| TDHNL 2525 M11 | L | 150 | 31 | 25 |
| TDHNR 2020 K15 | R | 125 | 25 | 20 |
| TDHNL 3232 P15 | L | 170 | 40 | 32 |
| TDHNR 2525 M15 | R | 150 | 32 | 25 |
| TDHNR 2525 M11 | R | 150 | 31 | 25 |
| TDHNL 2020 K15 | L | 125 | 25 | 20 |
