Tool Holders / T-System External Turning Toolholders
TDJNR/L
22 sizes available · 7 specification fields · standard: ISO

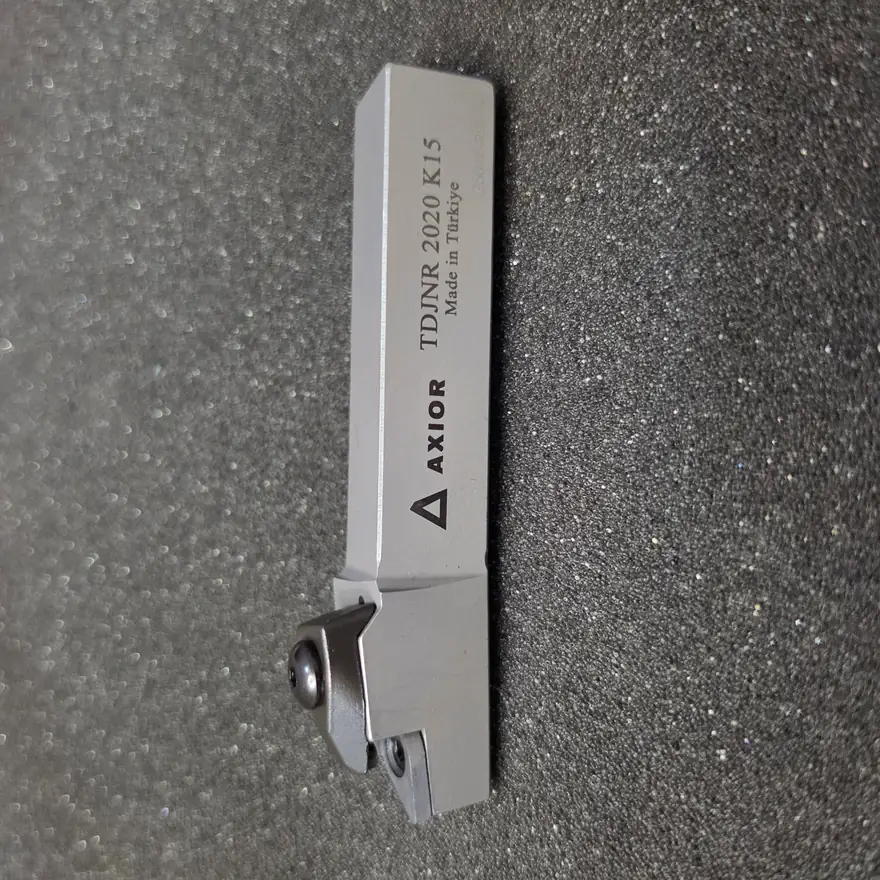

TDJNR/L is an external turning tool holder that takes negative 55° rhombic (D-type) inserts. It is listed here in 22 sizes, 16–50 × 16–50 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- DNM. 1104..
- DNM. 1506..
- DNM. 1504..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| TDJNL 1616 H11 | DNM. 1104.. | L | 100 | 20 | 16 | 16 |
| TDJNR 1616 H11 | DNM. 1104.. | R | 100 | 20 | 16 | 16 |
| TDJNL 2020 K11 | DNM. 1104.. | L | 125 | 25 | 20 | 20 |
| TDJNR 2020 K11 | DNM. 1104.. | R | 125 | 25 | 20 | 20 |
| TDJNL 2525 M11 | DNM. 1104.. | L | 150 | 32 | 25 | 25 |
| TDJNR 2525 M11 | DNM. 1104.. | R | 150 | 32 | 25 | 25 |
| TDJNL 2020 K15 | DNM. 1506.. | L | 125 | 25 | 20 | 20 |
| TDJNR 2020 K15 | DNM. 1506.. | R | 125 | 25 | 20 | 20 |
| TDJNR 2525 M15 | DNM. 1506.. | R | 150 | 32 | 25 | 25 |
| TDJNR 3232 P15 | DNM. 1506.. | R | 170 | 40 | 32 | 32 |
| TDJNL 4040 S1504 | DNM. 1504.. | L | 170 | 50 | 40 | 40 |
| TDJNR 4040 S1504 | DNM. 1504.. | R | 250 | 50 | 40 | 40 |
| TDJNL 5050 S15 | DNM. 1506.. | L | 250 | 63 | 50 | 50 |
| TDJNR 5050 S15 | DNM. 1506.. | R | 250 | 63 | 50 | 50 |
| TDJNL 2020 K1504 | DNM. 1504.. | L | 125 | 25 | 20 | 20 |
| TDJNR 2020 K1504 | DNM. 1504.. | R | 125 | 25 | 20 | 20 |
| TDJNL 2525 M1504 | DNM. 1504.. | L | 150 | 32 | 25 | 25 |
| TDJNR 2525 M1504 | DNM. 1504.. | R | 150 | 32 | 25 | 25 |
| TDJNL 3232 P1504 | DNM. 1504.. | L | 170 | 40 | 32 | 32 |
| TDJNR 3232 P1504 | DNM. 1504.. | R | 170 | 40 | 32 | 32 |
| TDJNL 4040 S15 | DNM. 1506.. | L | 250 | 50 | 40 | 40 |
| TDJNR 4040 S15 | DNM. 1506.. | R | 250 | 50 | 40 | 40 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
