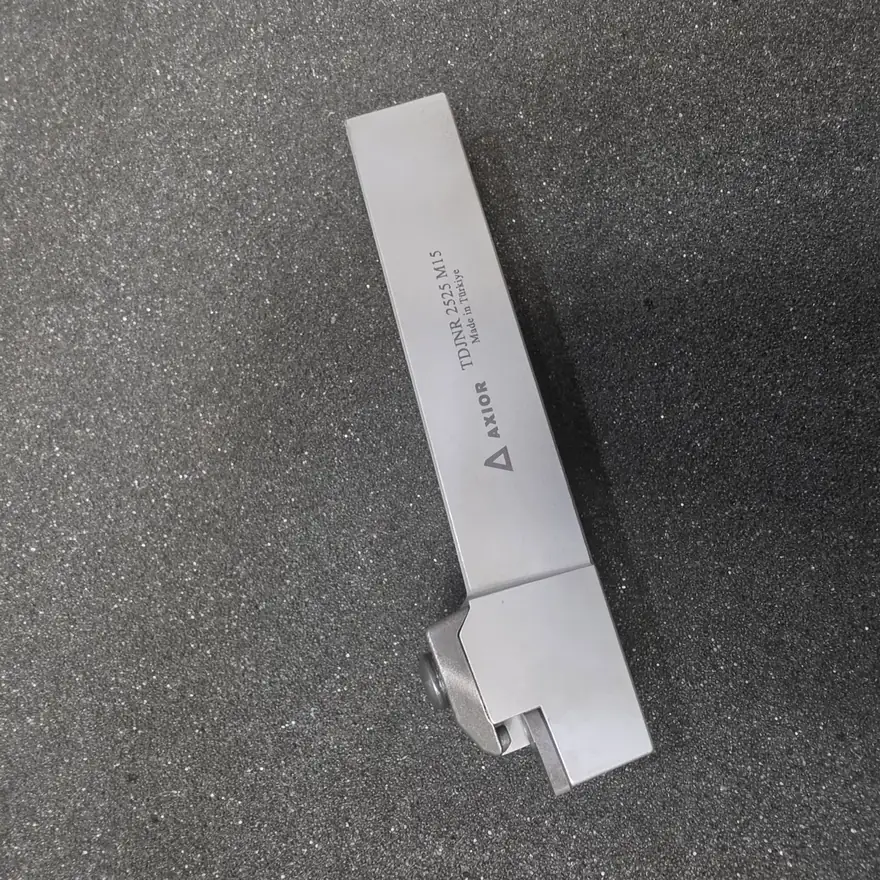

TDJNR 2525 M15
TDJNR/L series · see all 22 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

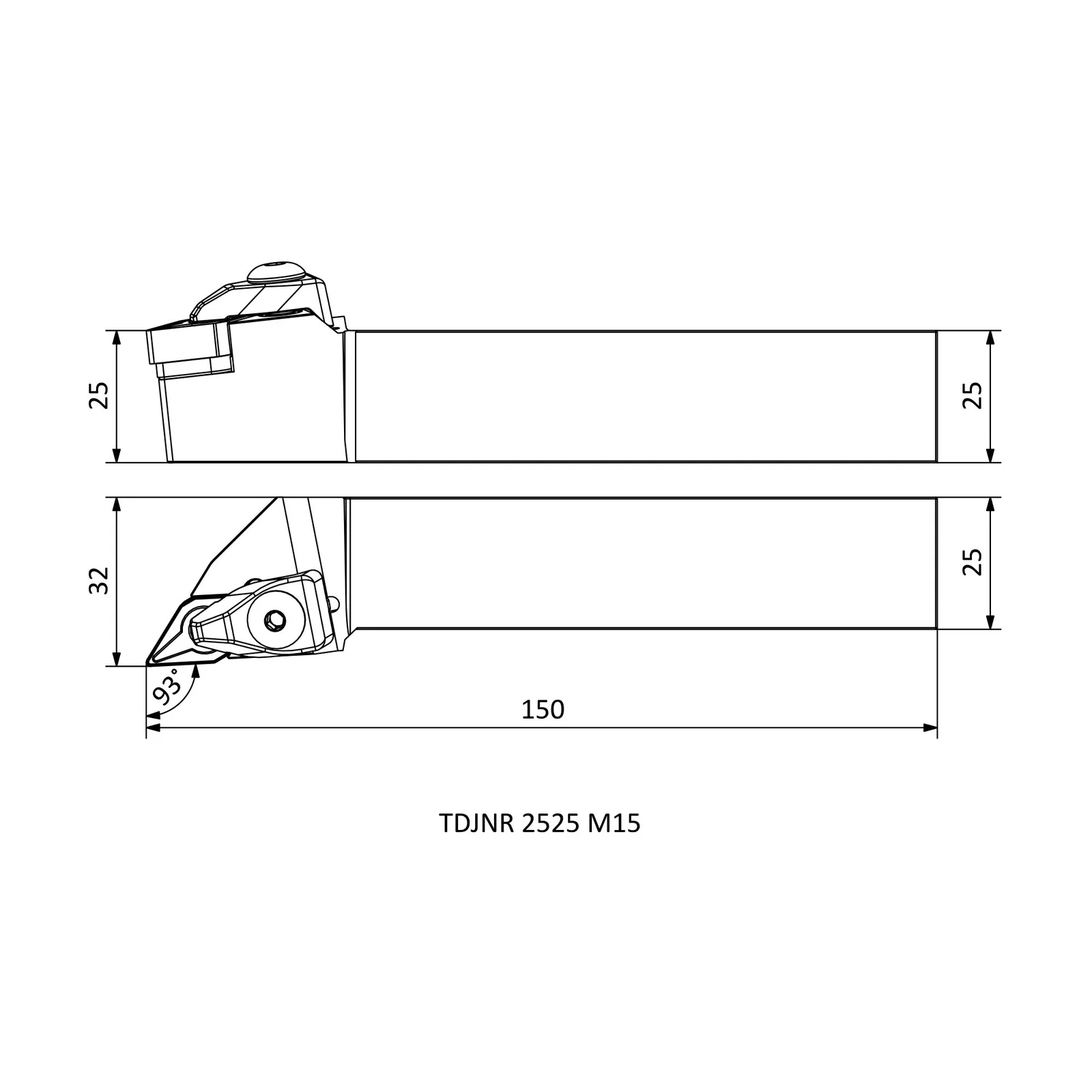

Specifications — TDJNR 2525 M15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in TDJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TDJNL 1616 H11 | L | 100 | 20 | 16 |
| TDJNR 1616 H11 | R | 100 | 20 | 16 |
| TDJNL 2020 K11 | L | 125 | 25 | 20 |
| TDJNR 2020 K11 | R | 125 | 25 | 20 |
| TDJNL 2525 M11 | L | 150 | 32 | 25 |
| TDJNR 2525 M11 | R | 150 | 32 | 25 |
| TDJNL 2020 K15 | L | 125 | 25 | 20 |
| TDJNR 2020 K15 | R | 125 | 25 | 20 |
| TDJNR 2525 M15 | R | 150 | 32 | 25 |
| TDJNR 3232 P15 | R | 170 | 40 | 32 |
| TDJNL 4040 S1504 | L | 170 | 50 | 40 |
| TDJNR 4040 S1504 | R | 250 | 50 | 40 |
| TDJNL 5050 S15 | L | 250 | 63 | 50 |
| TDJNR 5050 S15 | R | 250 | 63 | 50 |
| TDJNL 2020 K1504 | L | 125 | 25 | 20 |
| TDJNR 2020 K1504 | R | 125 | 25 | 20 |
| TDJNL 2525 M1504 | L | 150 | 32 | 25 |
| TDJNR 2525 M1504 | R | 150 | 32 | 25 |
| TDJNL 3232 P1504 | L | 170 | 40 | 32 |
| TDJNR 3232 P1504 | R | 170 | 40 | 32 |
| TDJNL 4040 S15 | L | 250 | 50 | 40 |
| TDJNR 4040 S15 | R | 250 | 50 | 40 |
