Tool Holders / T-System External Turning Toolholders

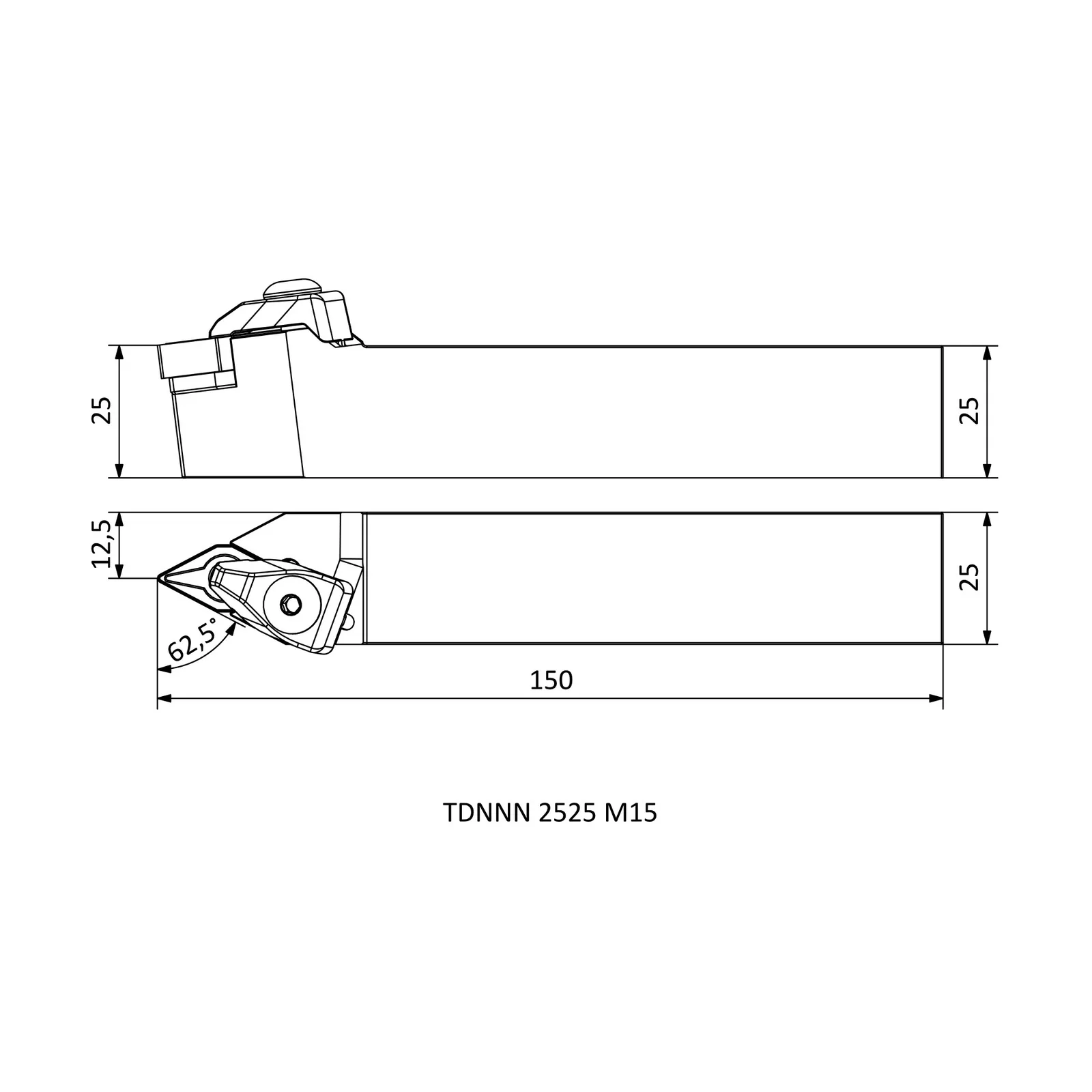

TDNNN 2525 M15
TDNNN series · see all 8 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).
Specifications — TDNNN 2525 M15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 15.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in TDNNN
| Product code | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|
| TDNNN 1616 H11 | 100 | 8 | 16 | 16 |
| TDNNN 2020 K11 | 125 | 10 | 20 | 20 |
| TDNNN 2525 M11 | 150 | 15.5 | 25 | 25 |
| TDNNN 2020 K15 | 125 | 10 | 20 | 20 |
| TDNNN 2525 M15 | 150 | 15.5 | 25 | 25 |
| TDNNN 3232 P15 | 170 | 16 | 32 | 32 |
| TDNNN 4040 S15 | 250 | 20 | 40 | 40 |
| TDNNN 5050 S15 | 250 | 25 | 50 | 50 |
