Tool Holders / T-System External Turning Toolholders
TSDNN 2020 K12
TSDNN series · see all 7 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).

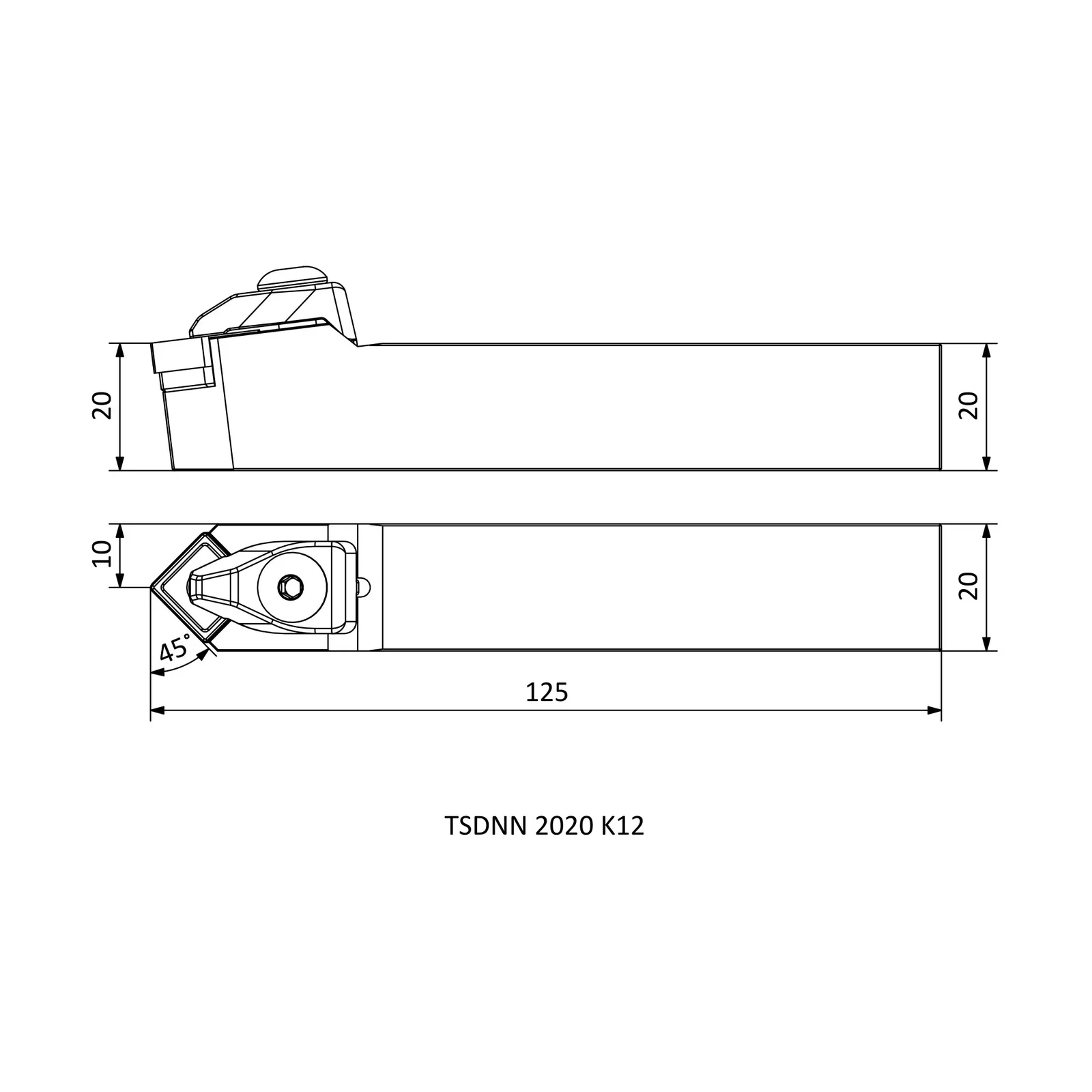

Specifications — TSDNN 2020 K12
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 10 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in TSDNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TSDNN 1616 H12 | N | 100 | 8 | 16 |
| TSDNN 2020 K12 | N | 125 | 10 | 20 |
| TSDNN 2525 M12 | N | 150 | 12.5 | 25 |
| TSDNN 3232 P12 | N | 170 | 16 | 32 |
| TSDNN 2525 M15 | N | 150 | 12.5 | 25 |
| TSDNN 3232 P15 | N | 170 | 16 | 32 |
| TSDNN 4040 S15 | N | 250 | 20 | 40 |
