Tool Holders / T-System External Turning Toolholders

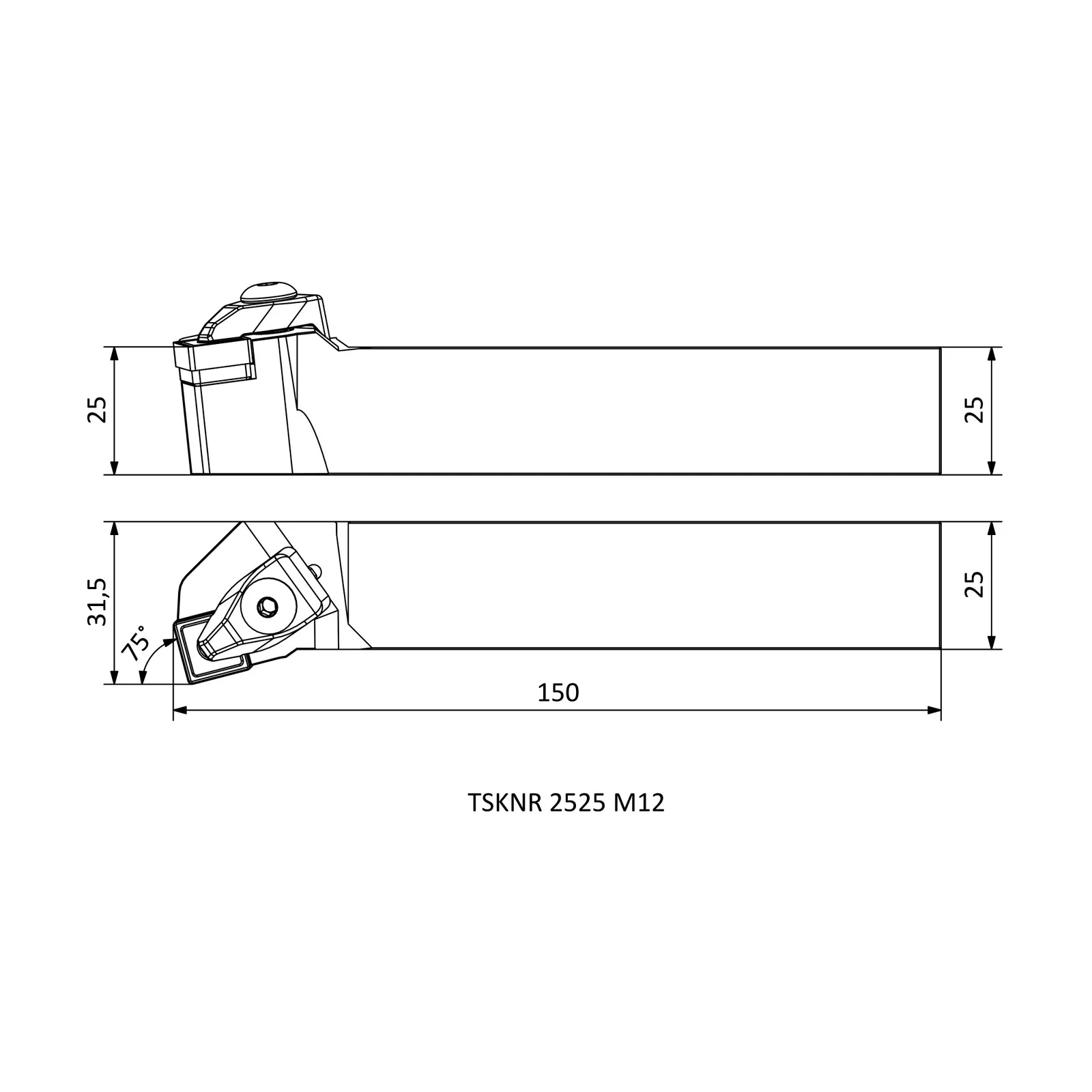

TSKNR 2525 M12
TSKNR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).
Specifications — TSKNR 2525 M12
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in TSKNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TSKNL 2020 K12 | L | 125 | 25 | 20 |
| TSKNR 2020 K12 | R | 125 | 25 | 20 |
| TSKNL 2525 M12 | L | 150 | 32 | 25 |
| TSKNR 2525 M12 | R | 150 | 32 | 25 |
| TSKNL 3232 P12 | L | 170 | 40 | 32 |
| TSKNR 3232 P12 | R | 170 | 40 | 32 |
| TSKNL 3232 P15 | L | 170 | 40 | 32 |
| TSKNR 3232 P15 | R | 170 | 40 | 32 |
