Tool Holders / T-System External Turning Toolholders
TSSNL 2525 M15
TSSNR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation SNM. 1506 (as listed in the catalogue data).

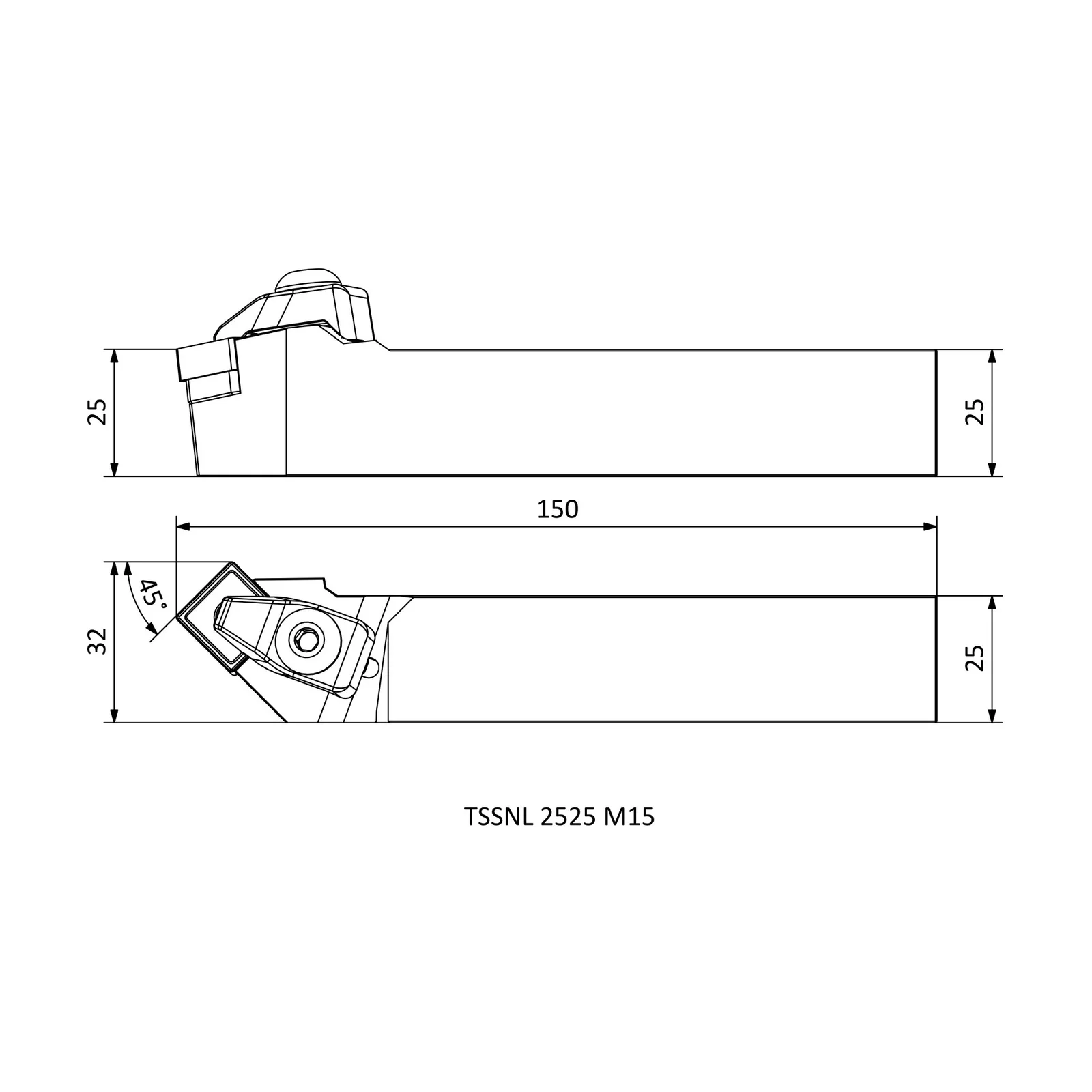

Specifications — TSSNL 2525 M15
| Insert Code | Insert designation | SNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in TSSNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TSSNL 2020 K12 | L | 125 | 25 | 20 |
| TSSNR 2020 K12 | R | 125 | 25 | 20 |
| TSSNL 2525 M12 | L | 150 | 32 | 25 |
| TSSNR 2525 M12 | R | 150 | 32 | 25 |
| TSSNL 3232 P12 | L | 170 | 40 | 32 |
| TSSNR 3232 P12 | R | 170 | 40 | 32 |
| TSSNL 2525 M15 | L | 150 | 32 | 25 |
| TSSNR 2525 M15 | R | 150 | 32 | 25 |
| TSSNL 3232 P15 | L | 170 | 40 | 32 |
| TSSNR 3232 P15 | R | 170 | 40 | 32 |
