Tool Holders / T-System External Turning Toolholders
TSSNR 2525 M12-H
TSSNR/L-H series · see all 10 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).

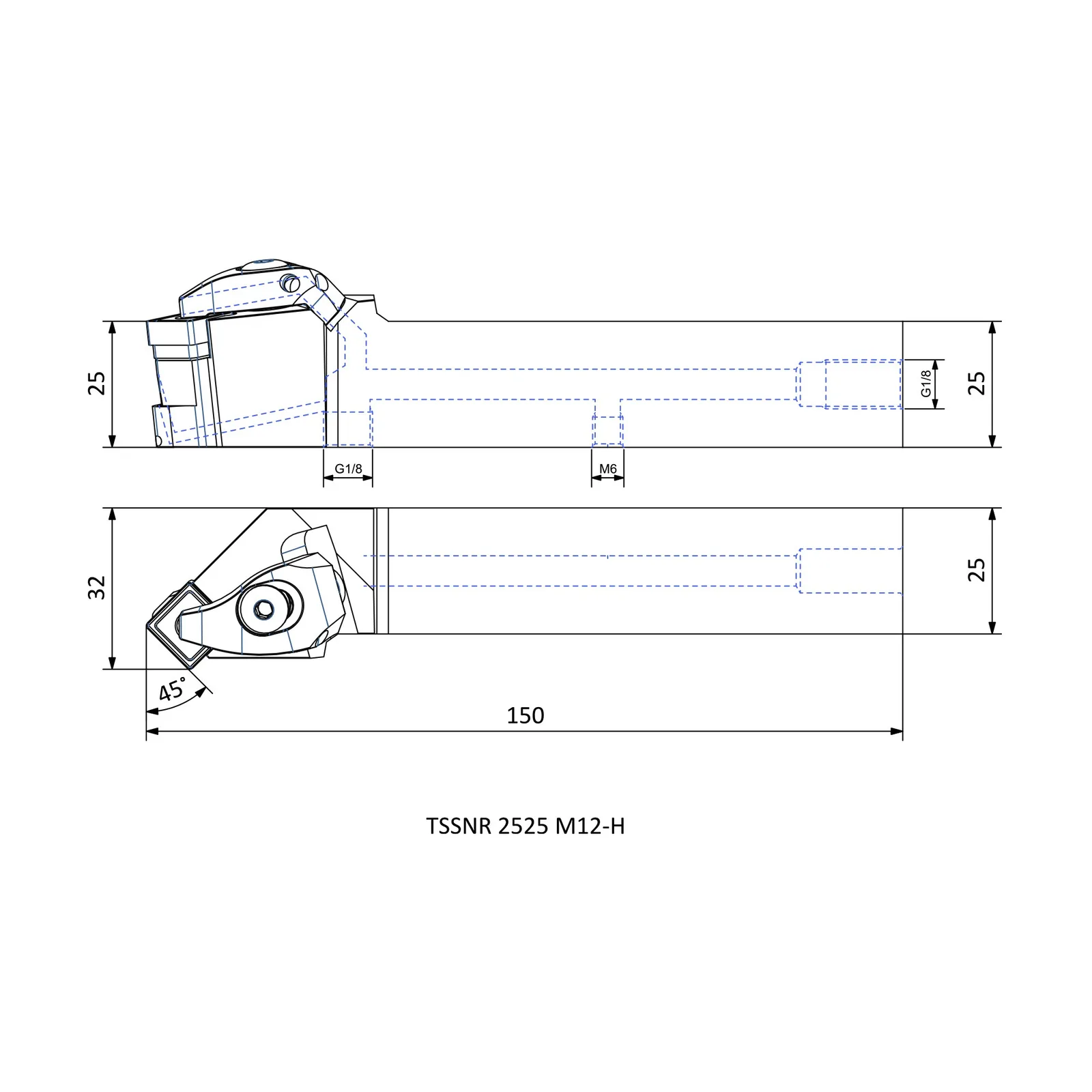

Specifications — TSSNR 2525 M12-H
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in TSSNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TSSNL 2525 M12-H | L | 150 | 32 | 25 |
| TSSNR 2525 M12-H | R | 150 | 32 | 25 |
| TSSNL 3232 P12-H | L | 170 | 32 | 32 |
| TSSNR 3232 P12-H | R | 170 | 32 | 32 |
| TSSNL 2525 M15-H | L | 150 | 40 | 25 |
| TSSNR 2525 M15-H | R | 150 | 40 | 25 |
| TSSNL 3232 P15-H | L | 170 | 40 | 32 |
| TSSNR 3232 P15-H | R | 170 | 40 | 32 |
| TSSNL 4040 S15-H | L | 250 | 50 | 40 |
| TSSNR 4040 S15-H | R | 250 | 50 | 40 |
