Tool Holders / T-System External Turning Toolholders
TTENN 2525 M16
TTENN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

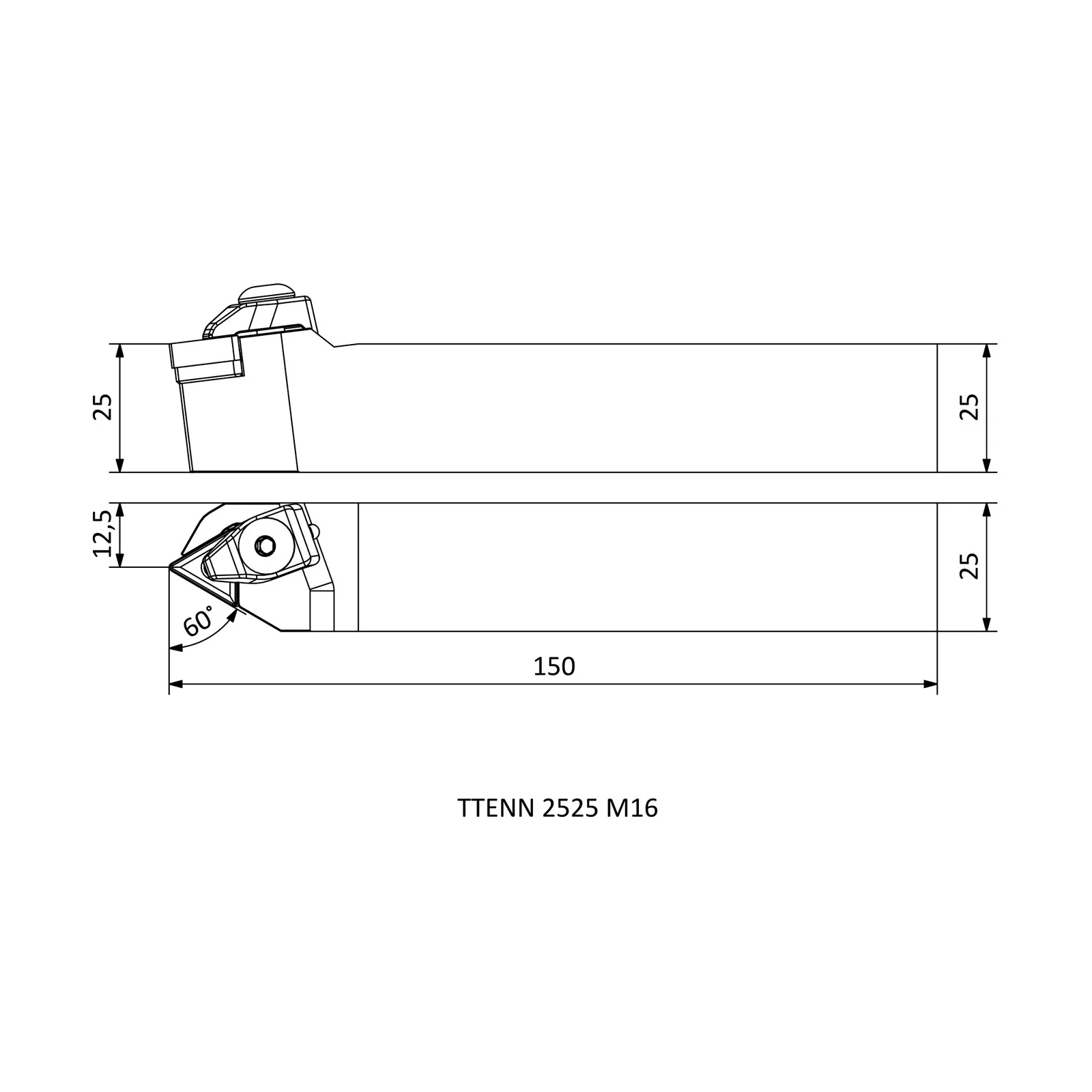

Specifications — TTENN 2525 M16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 12.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in TTENN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TTENN 2020 K16 | R | 125 | 10 | 20 |
| TTENN 2525 M16 | R | 150 | 12.5 | 25 |
| TTENN 3232 P16 | R | 170 | 16 | 32 |
| TTENN 2525 M22 | R | 150 | 12.5 | 25 |
| TTENN 3232 P22 | R | 170 | 16 | 32 |
| TTENN 4040 S22 | R | 250 | 20 | 40 |
